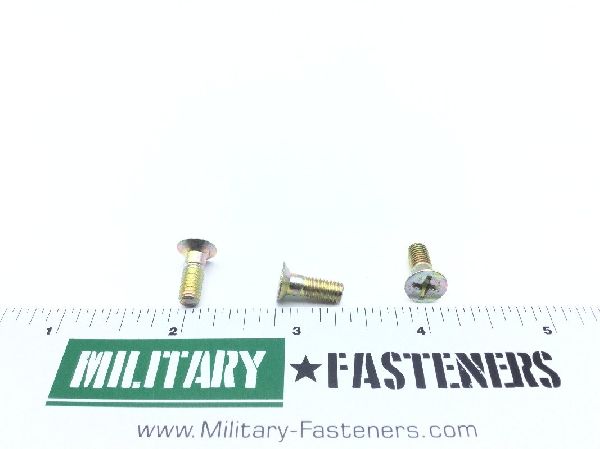

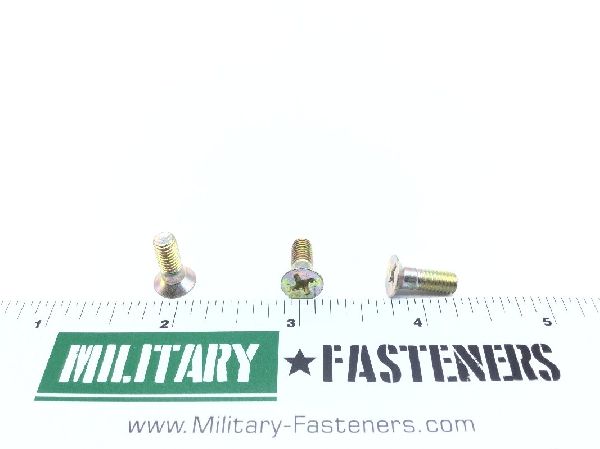

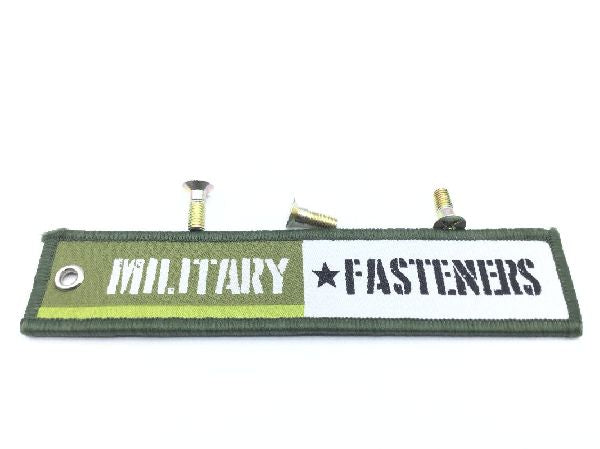

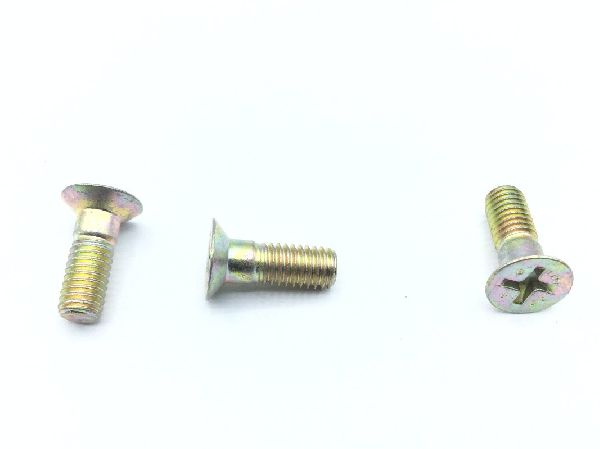

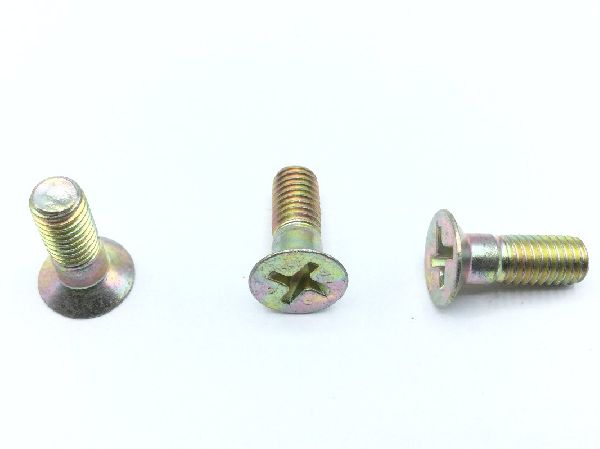

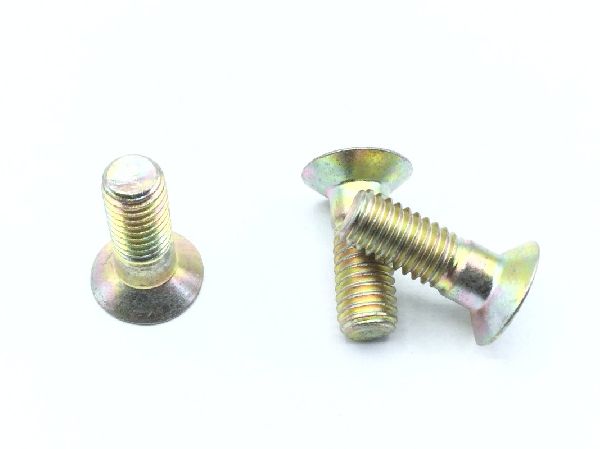

NAS1580C3T3P Close Tolerance Screw

NSN: 5305-01-058-3933
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.534 inches and 0.564 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.177 inches and 0.197 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 5731 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.337 inches and 0.387 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
