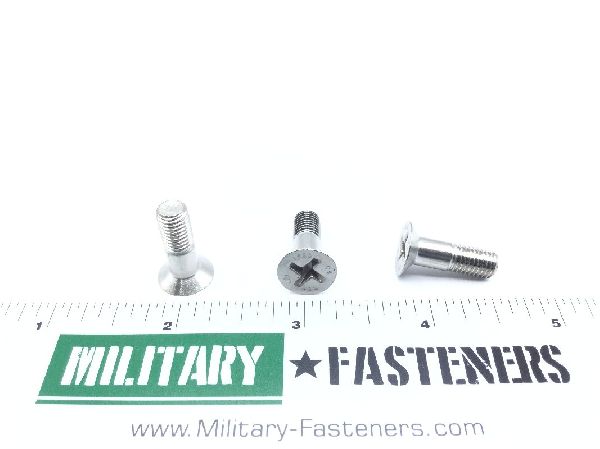

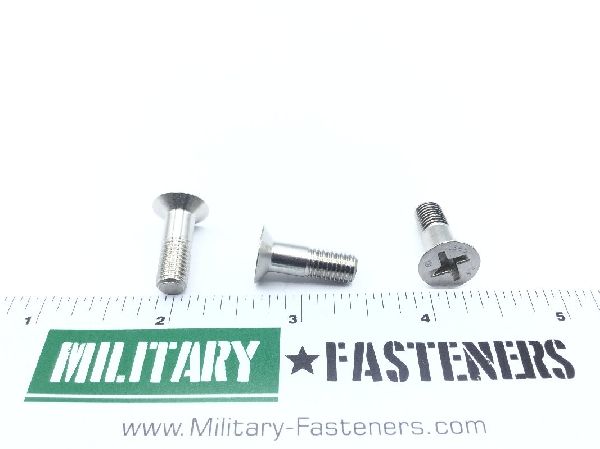

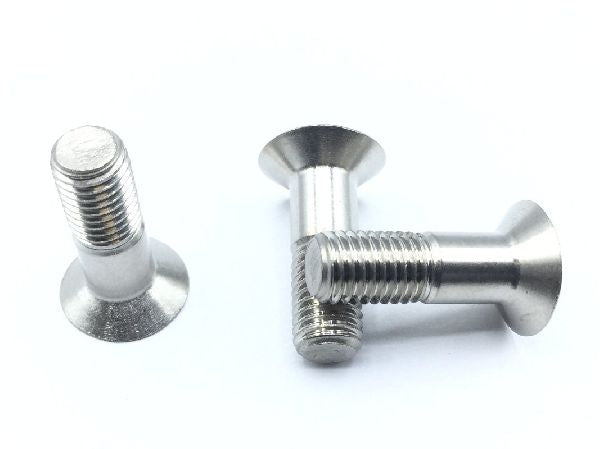

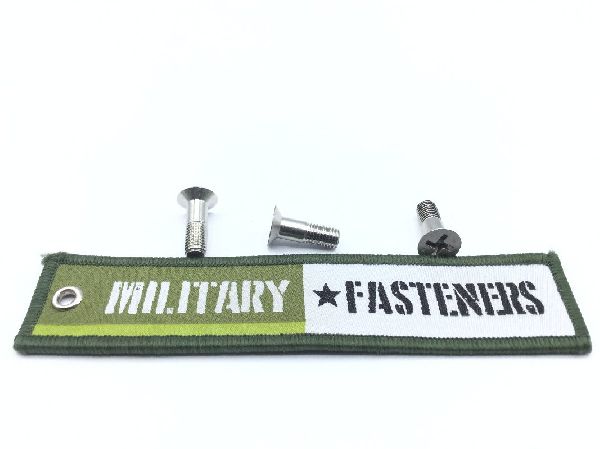

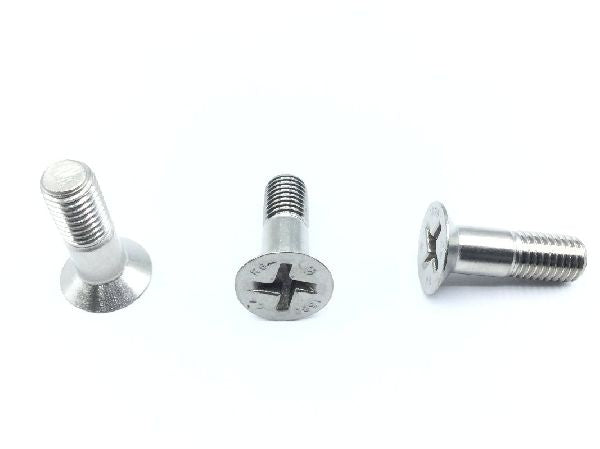

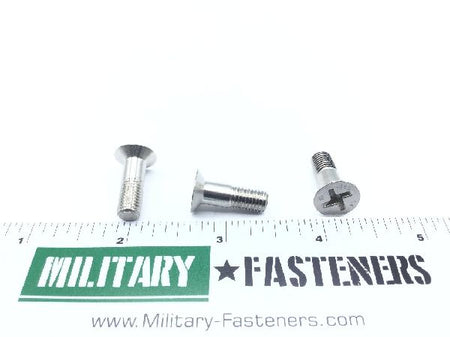

NAS1580C4R6 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.763 inches and 0.793 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.365 inches and 0.385 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams5731 assn standard single material response or ams5732 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 16000 pounds per square inch
Special Features: Internal drive ribbed
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.378 inches and 0.428 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.464 inches and 0.507 inches
