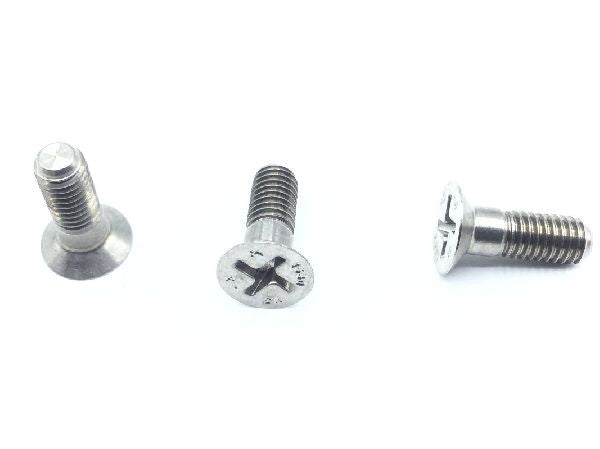

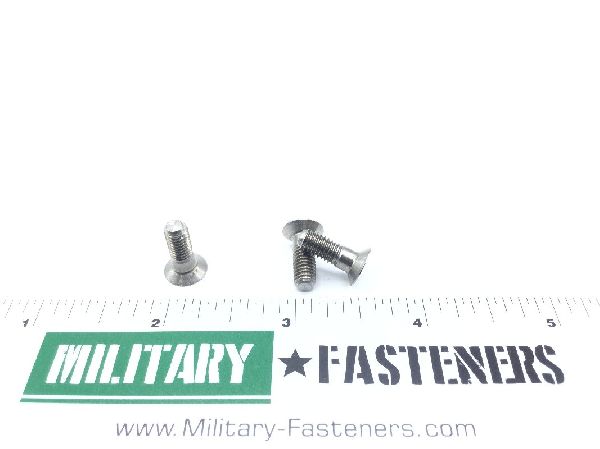

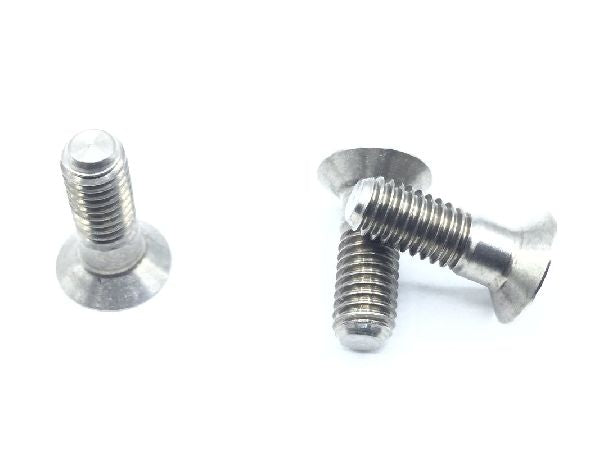

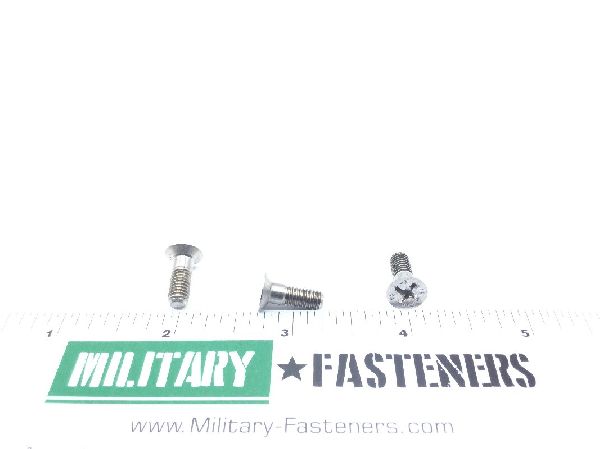

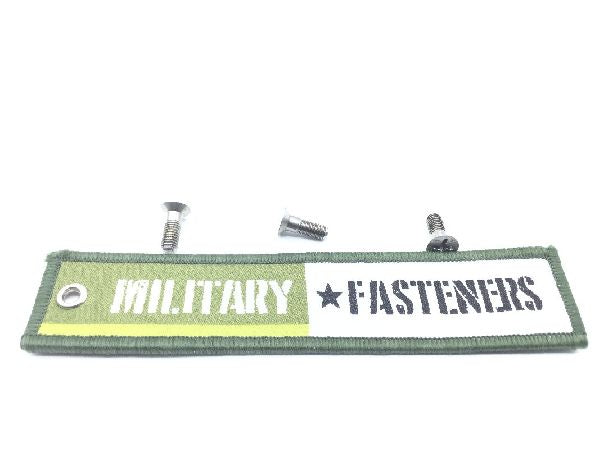

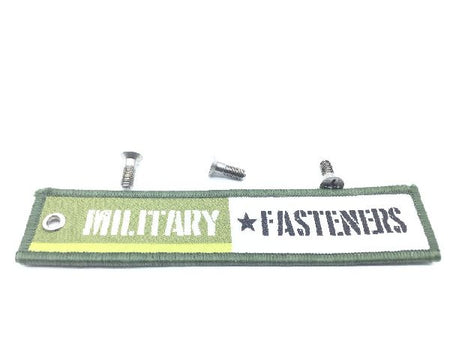

NAS1580V3T3 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.534 inches and 0.564 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.177 inches and 0.197 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Nas 621 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.337 inches and 0.387 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
