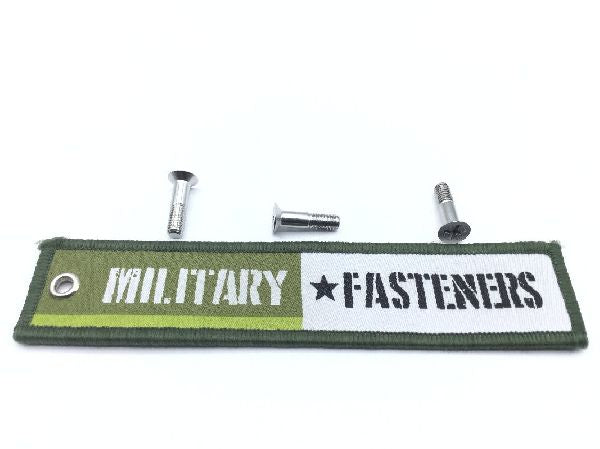

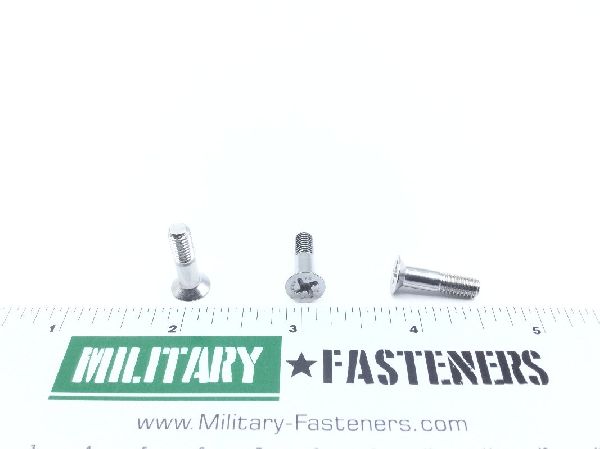

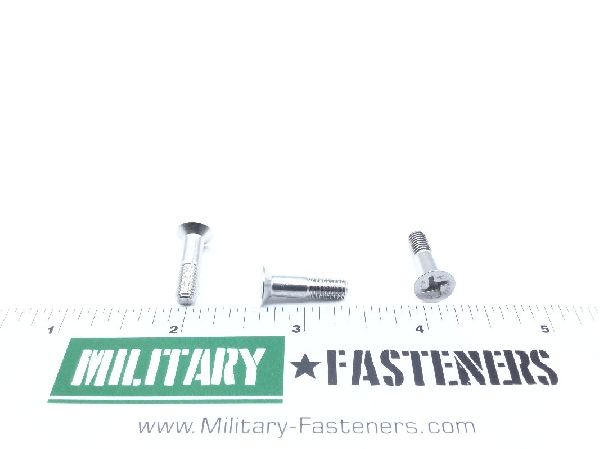

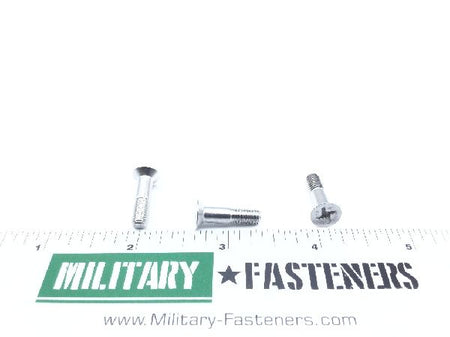

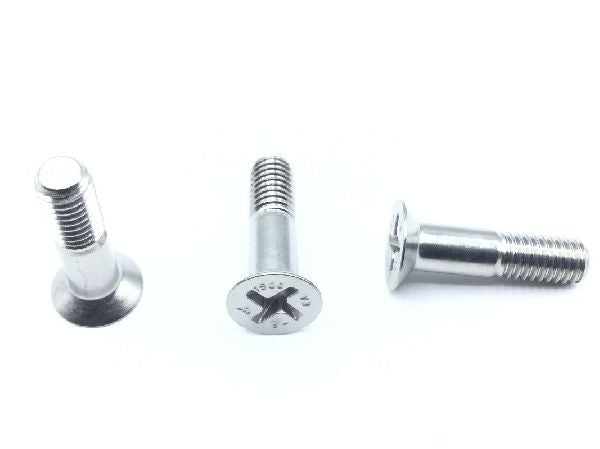

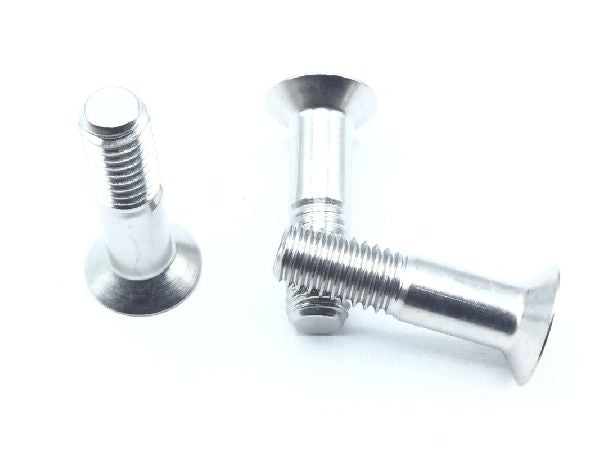

NAS1580V3T6 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $3.25

Units per Pack 20

Price per Pack $65.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $65.00

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.723 inches and 0.753 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.365 inches and 0.385 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Nas 621 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
