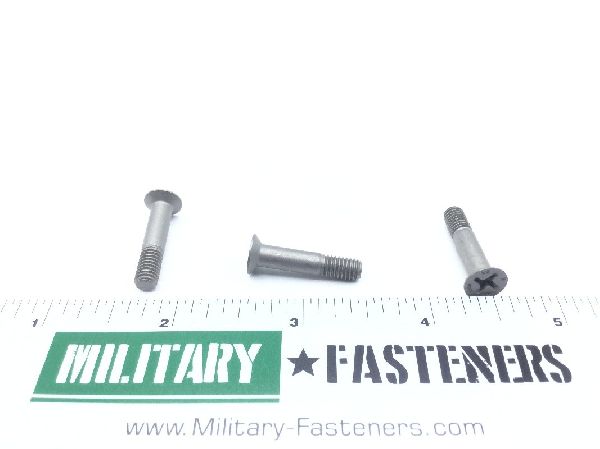

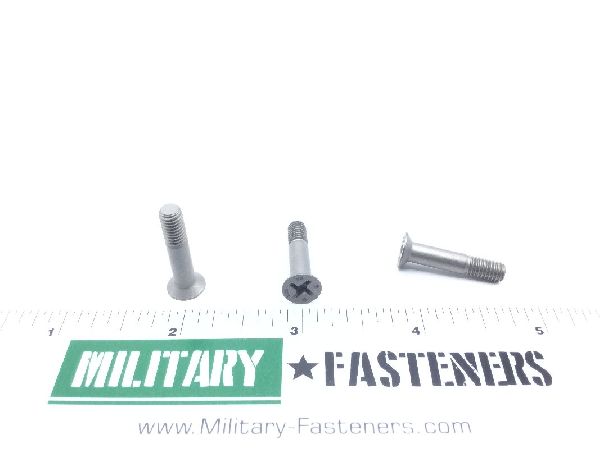

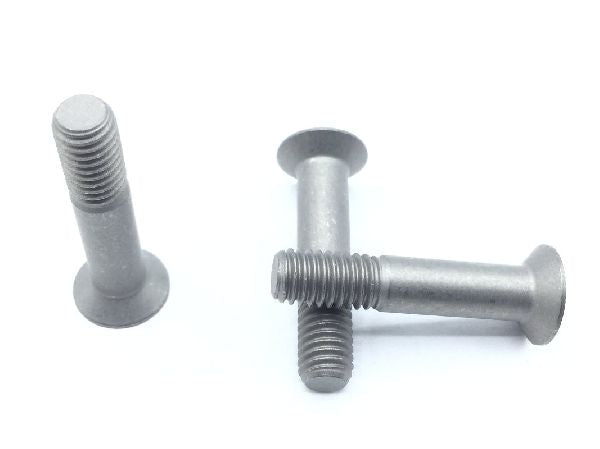

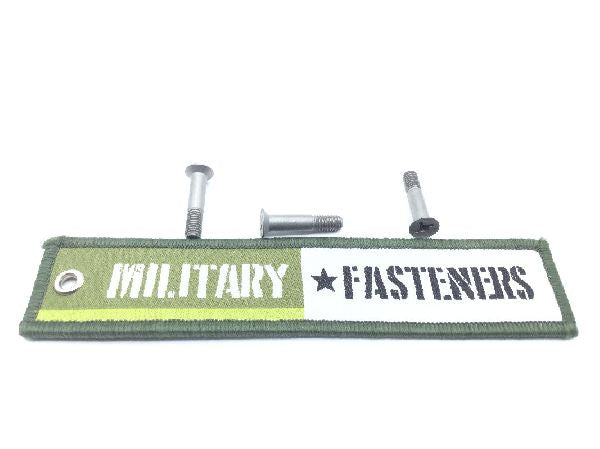

NAS1580V3T9 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.86

Units per Pack 10

Price per Pack $38.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.60

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy uns r54520

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.910 inches and 0.940 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.552 inches and 0.572 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Nas621 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1580 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
