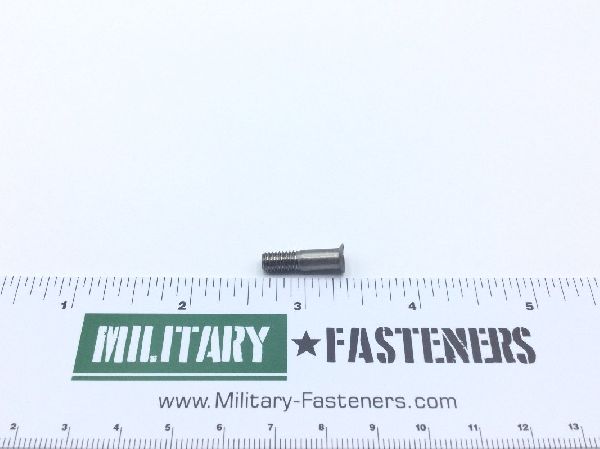

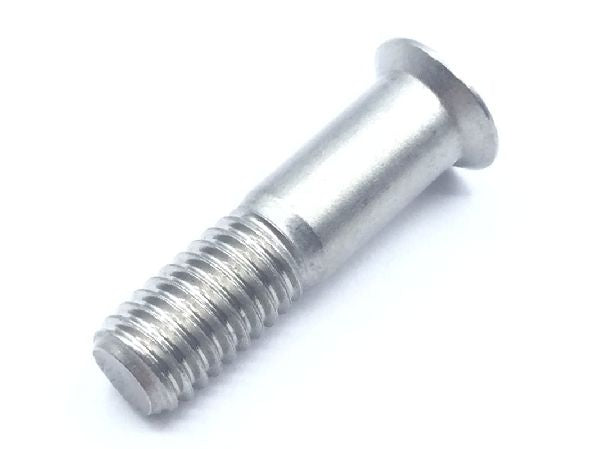

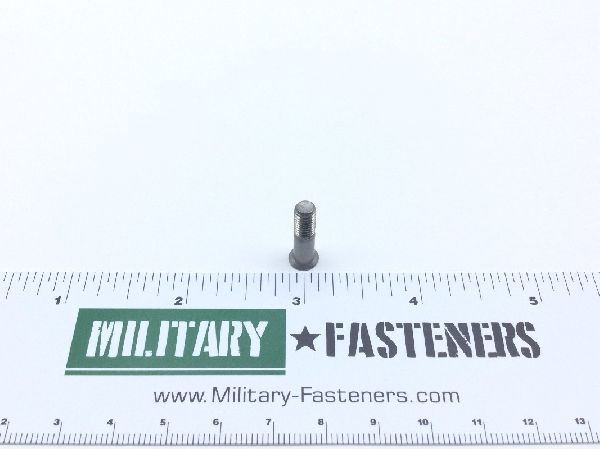

NAS1581C3T6 Shear Bolt

NSN: 5305-01-525-3096
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Iron alloy 660

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: F-16 acft
Fastener Length: Between 0.534 inches and 0.564 inches
Grip Diameter: Between 0.188 inches and 0.189 inches
Grip Length: Between 0.365 inches and 0.385 inches
Internal Drive Style: Offset cruciform (torque set)
Part Name Assigned By Controlling Agency: Screw
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: 0.257 inches
