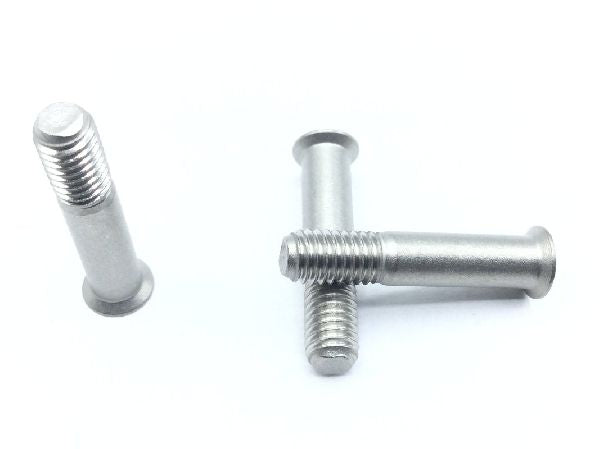

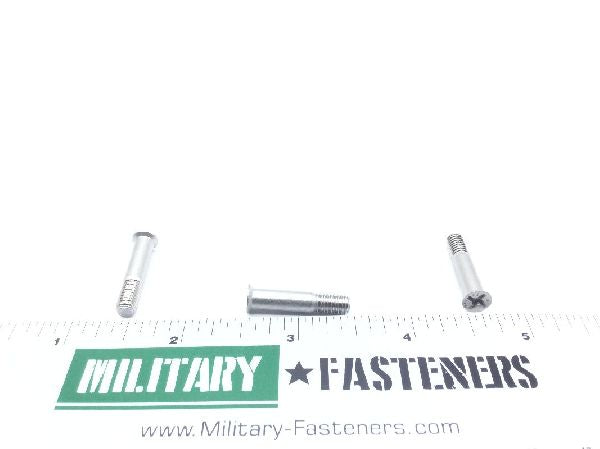

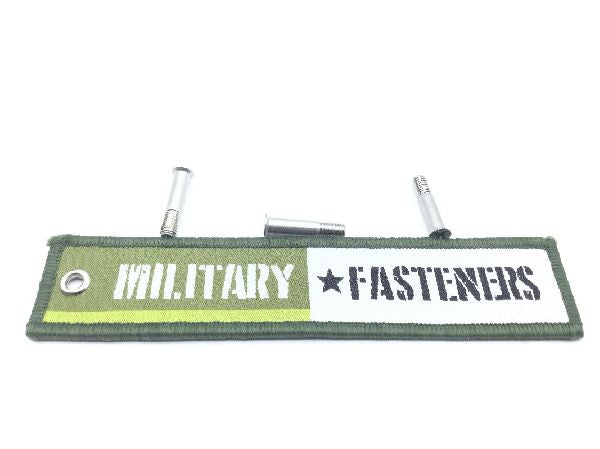

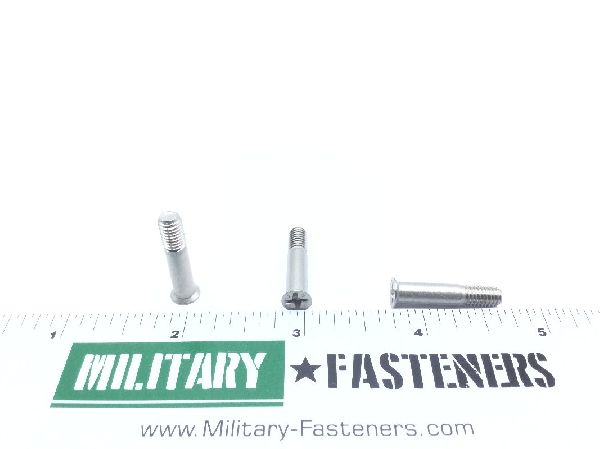

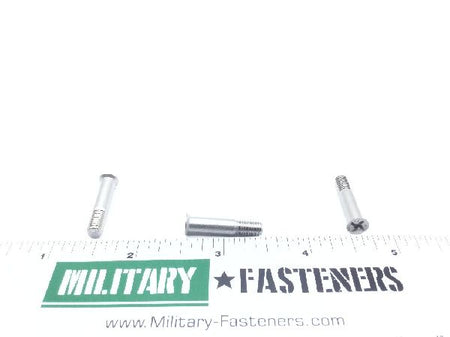

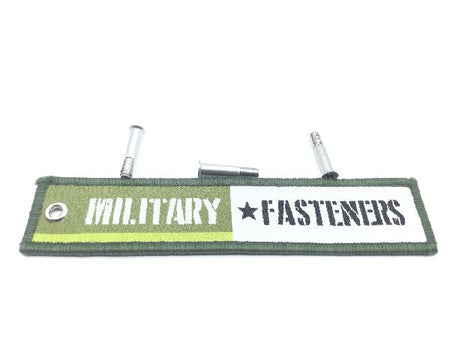

NAS1581C3T9 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.56

Units per Pack 25

Price per Pack $64.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $64.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 0.91 inches and 0.94 inches
Hardness Rating: Between 24.0 rockwell c and 35.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1581 professional/industrial association standard
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.258 inches and 0.305 inches
