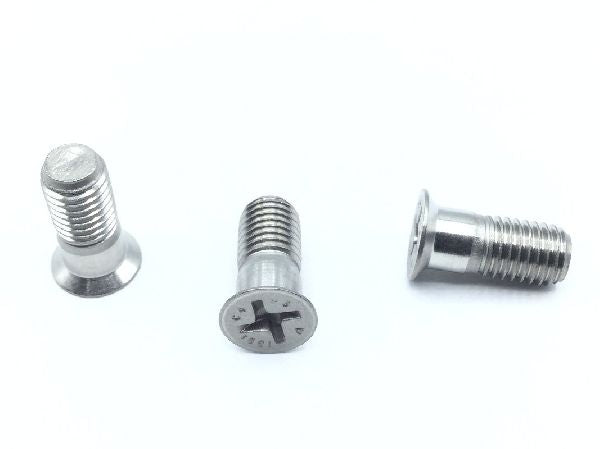

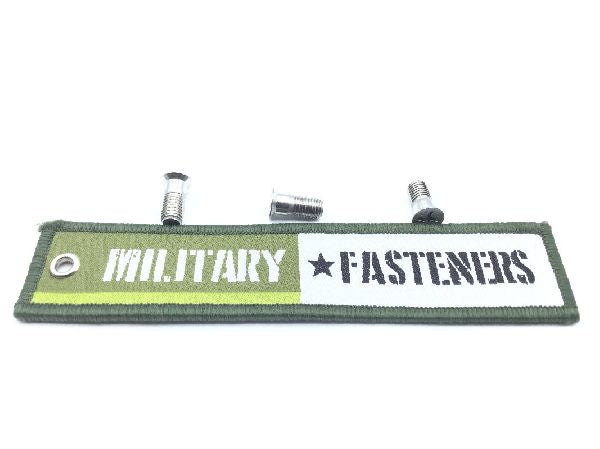

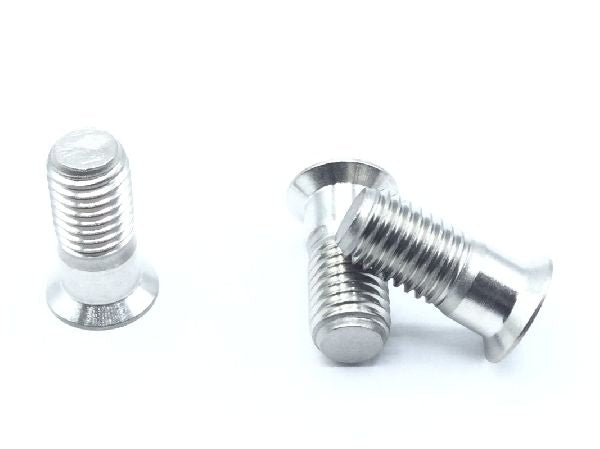

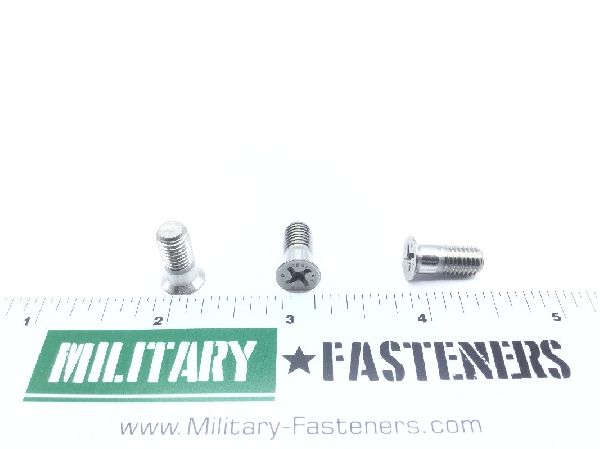

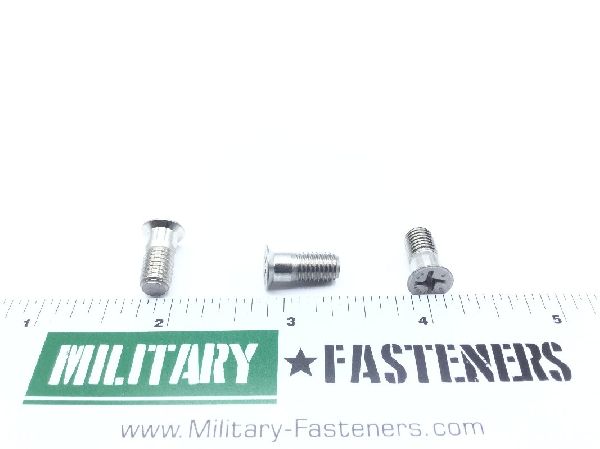

NAS1581C4T3 Close Tolerance Screw

NSN: 5305-01-058-0752
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Iron alloy 660

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.575 inches and 0.605 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 0.177 inches and 0.197 inches
Hardness Rating: 24.0 rockwell c and 35.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1581 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.378 inches and 0.428 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.350 inches and 0.399 inches
