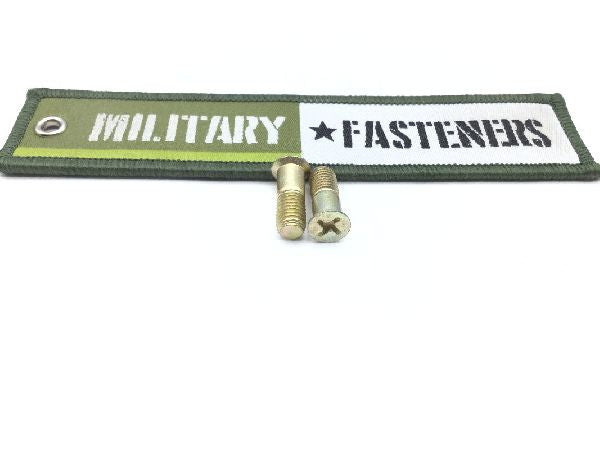

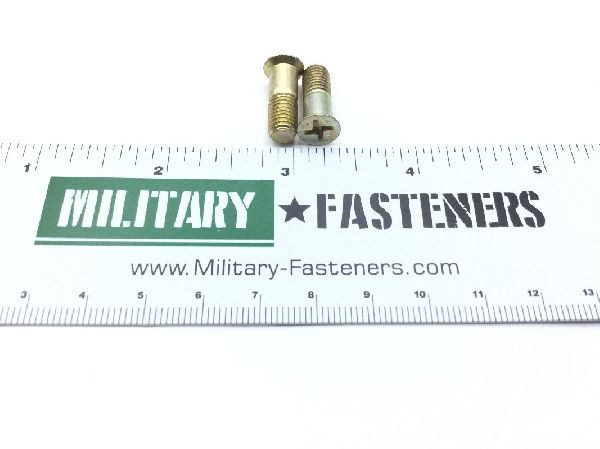

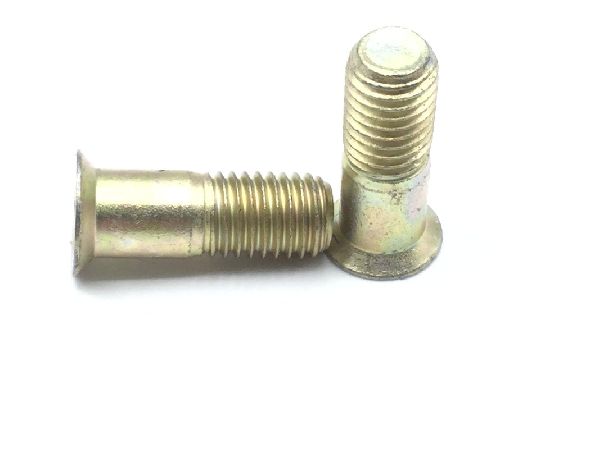

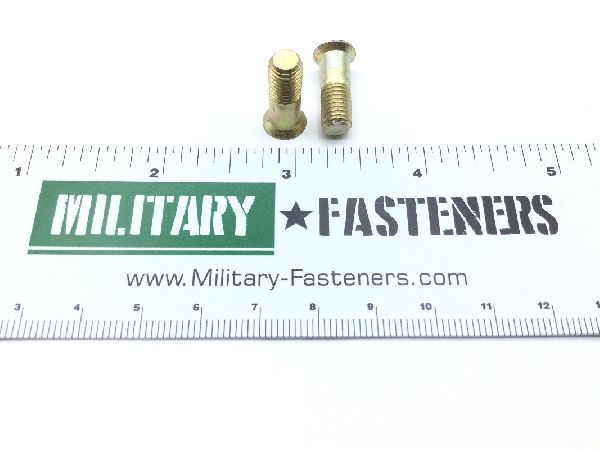

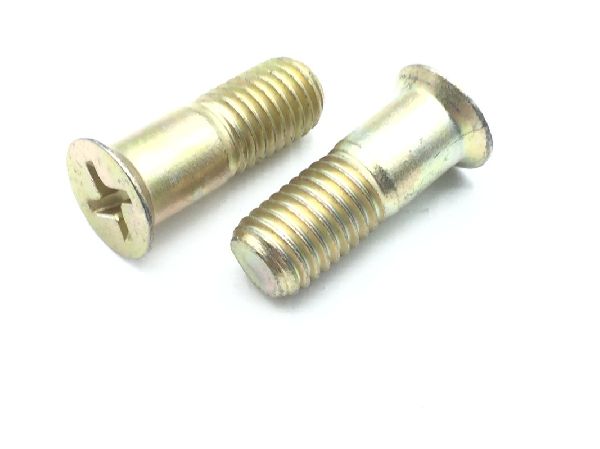

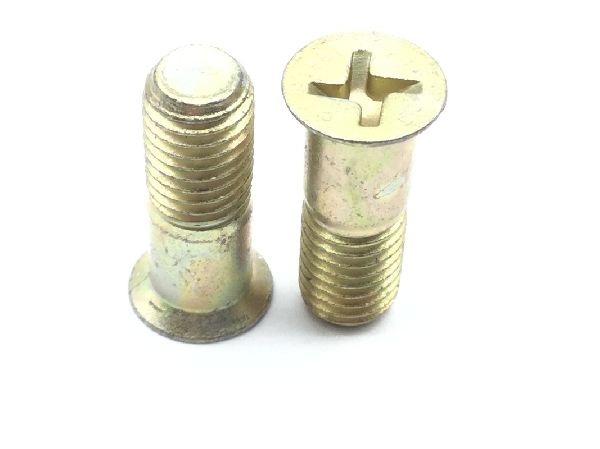

NAS1581F4T5 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.00

Units per Pack 50

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.700 inches and 0.730 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.302 inches and 0.322 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1581 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.403 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.350 inches and 0.398 inches
