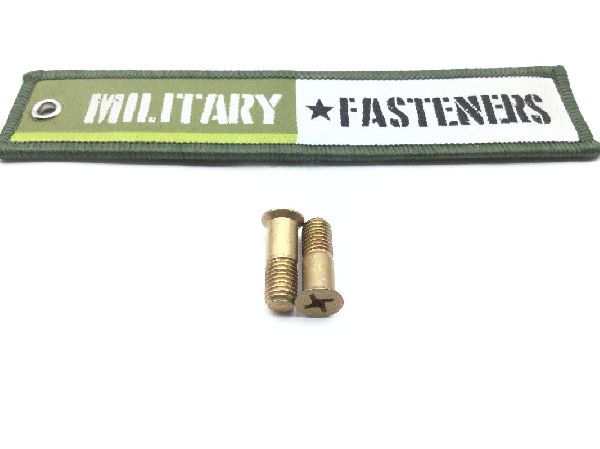

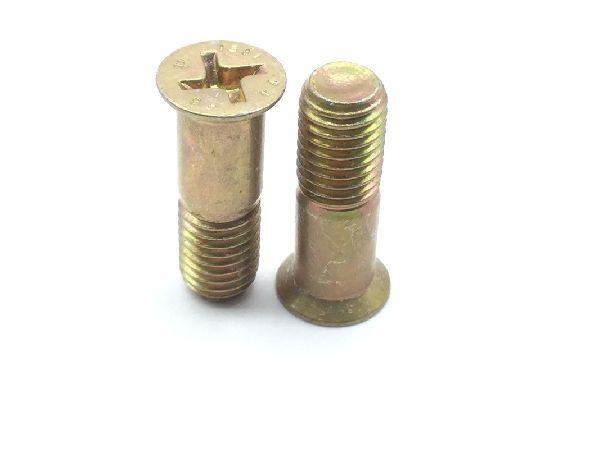

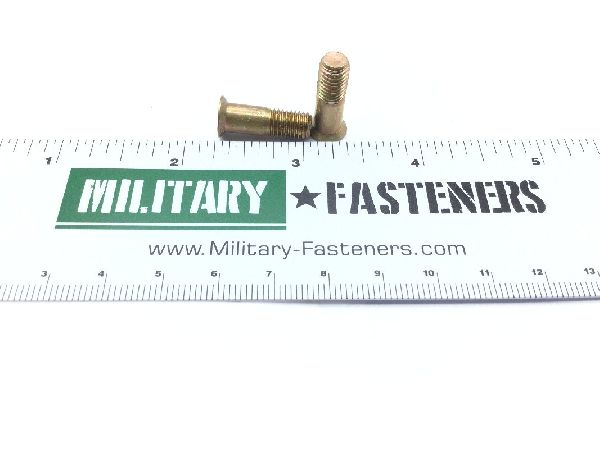

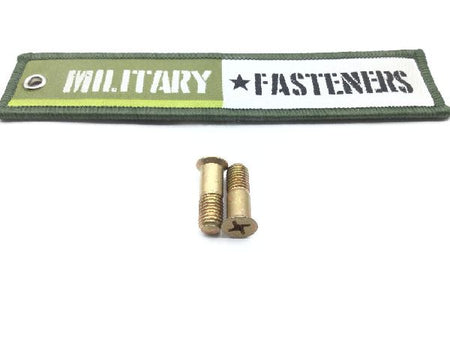

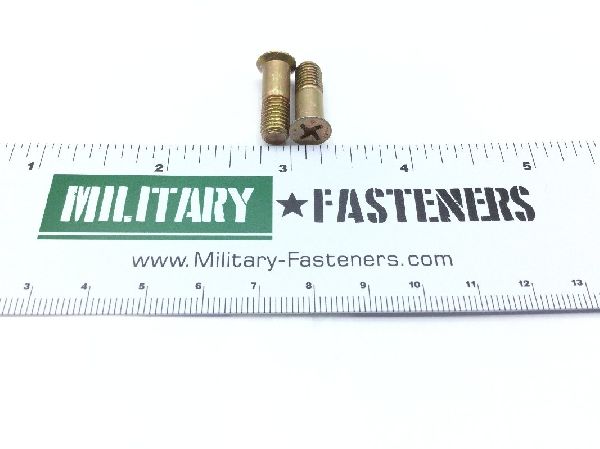

NAS1581F4T6 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.40

Units per Pack 25

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 8735 or steel comp 6150

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.763 inches and 0.793 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.365 inches and 0.385 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1581 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.378 inches and 0.428 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.350 inches and 0.399 inches
