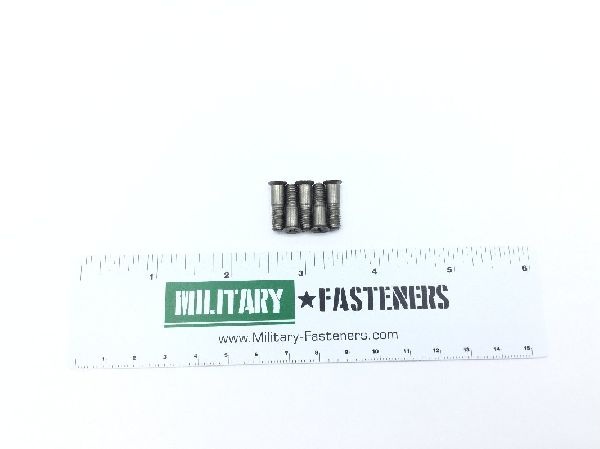

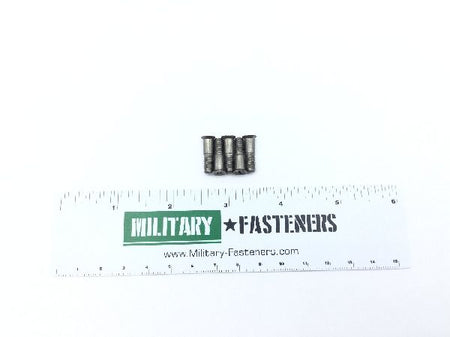

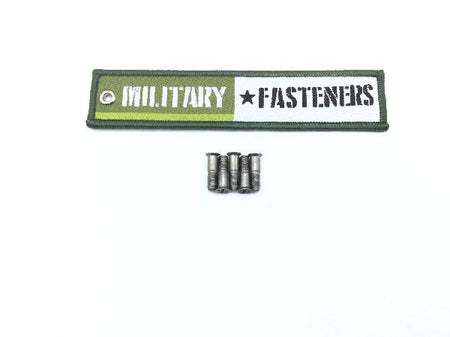

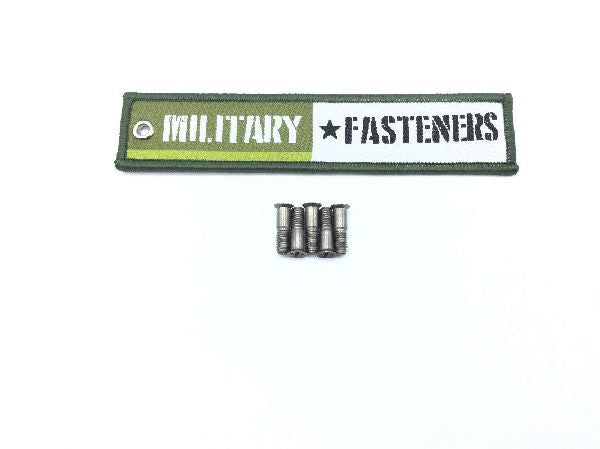

NAS1581K3R5 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.81

Units per Pack 10

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.660 inches and 0.690 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.302 inches and 0.322 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 4967 6al-4v assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-1581 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.338 inches and 0.388 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.2578 inches and 0.3047 inches
