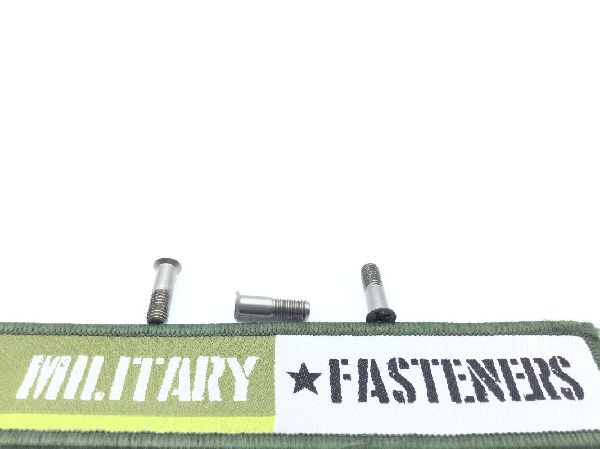

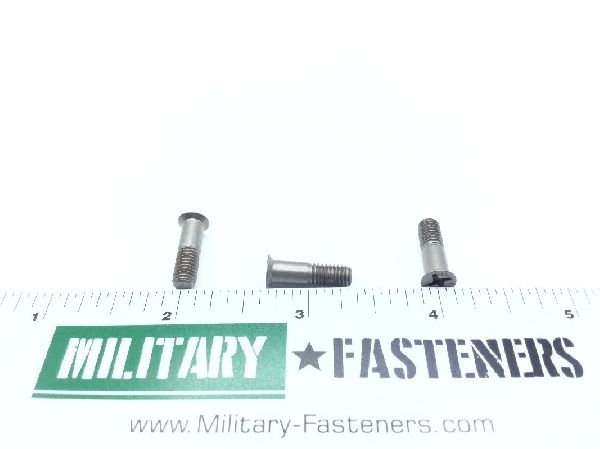

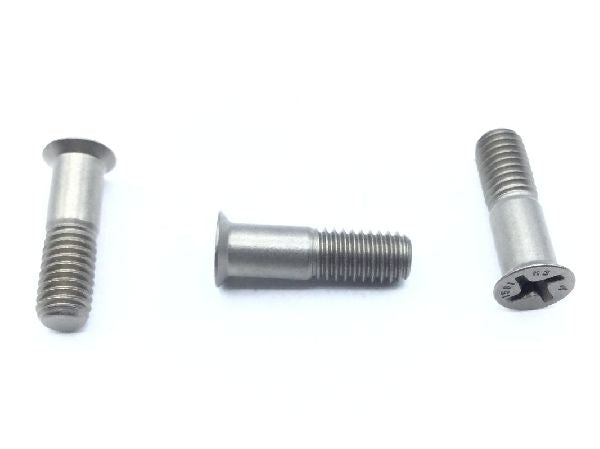

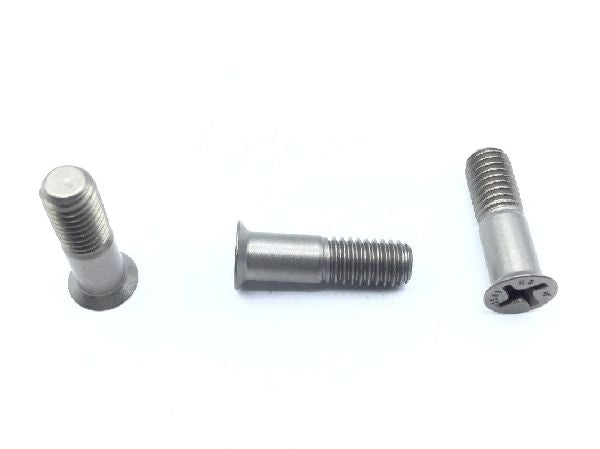

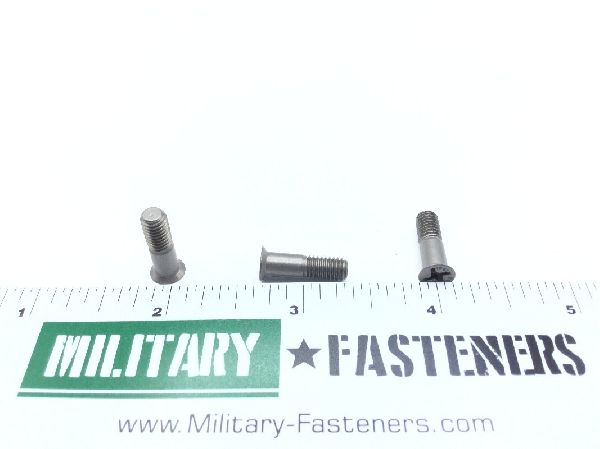

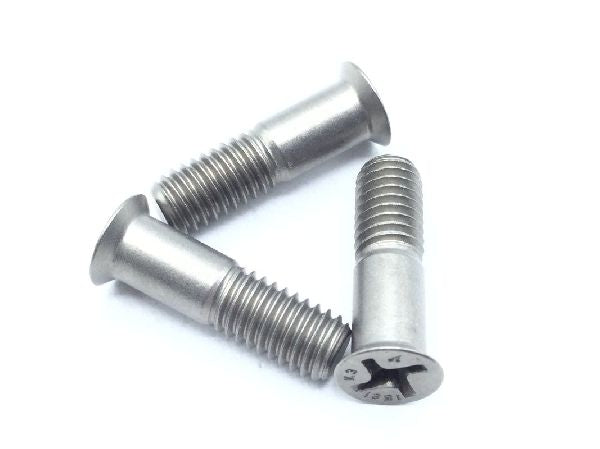

NAS1581K3T5 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.91

Units per Pack 10

Price per Pack $39.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $39.10

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.673 inches and 0.703 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.177 inches and 0.197 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 4967 comp 6al 4v assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1581 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.476 inches and 0.536 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.278 inches and 0.305 inches
