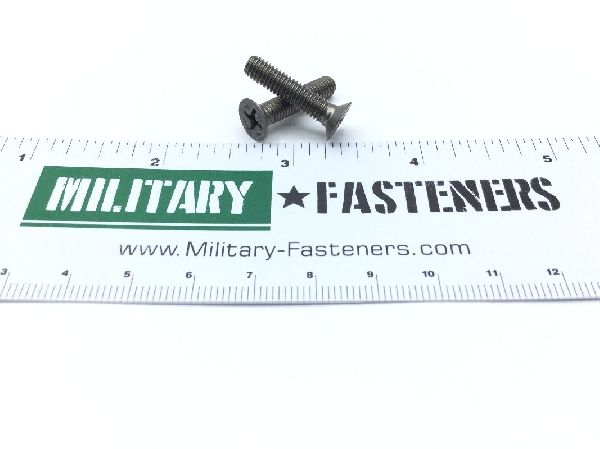

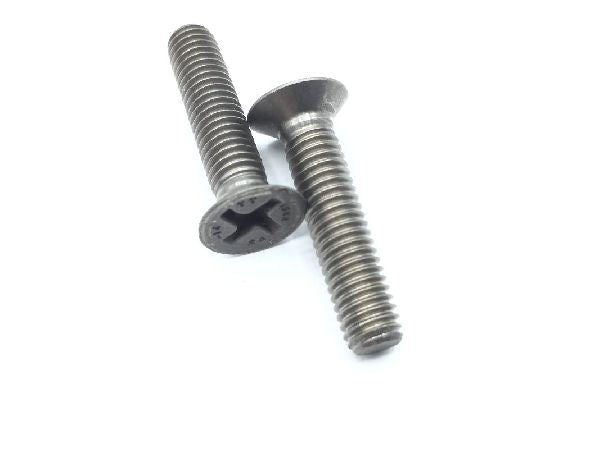

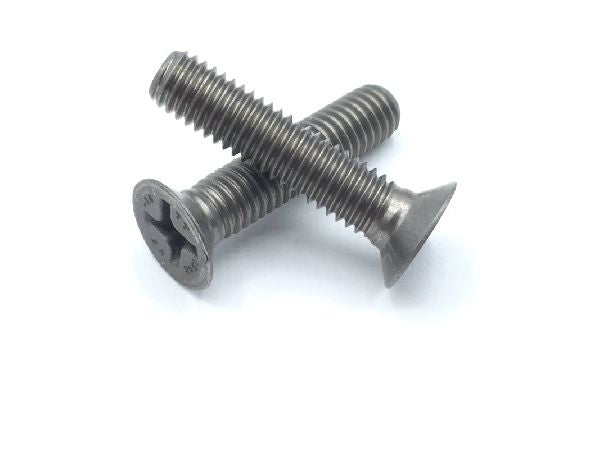

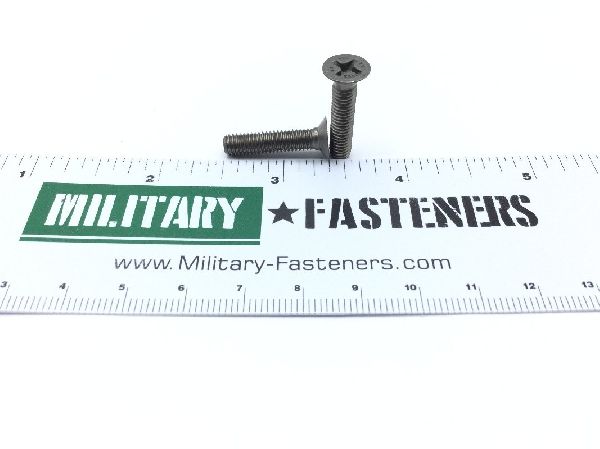

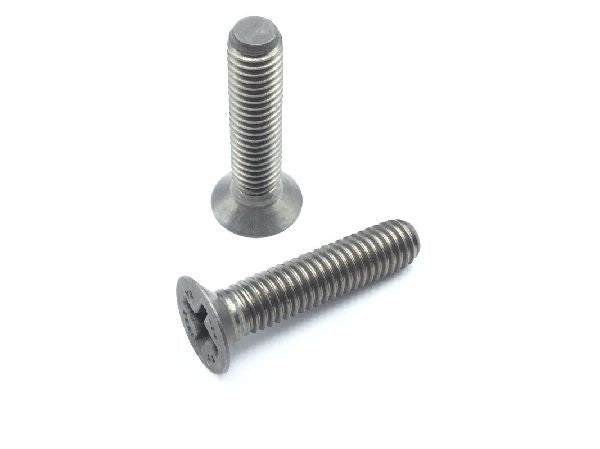

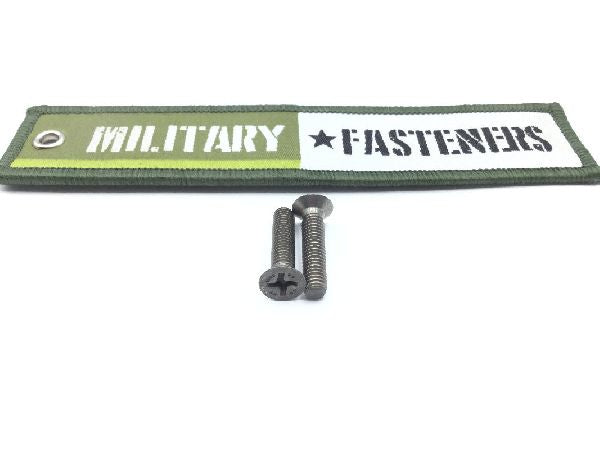

NAS1582V3T14 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.93

Units per Pack 10

Price per Pack $39.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $39.30

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy uns r56400

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.875 inches
Internal Drive Style: Torque set
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.792 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.339 inches and 0.381 inches
