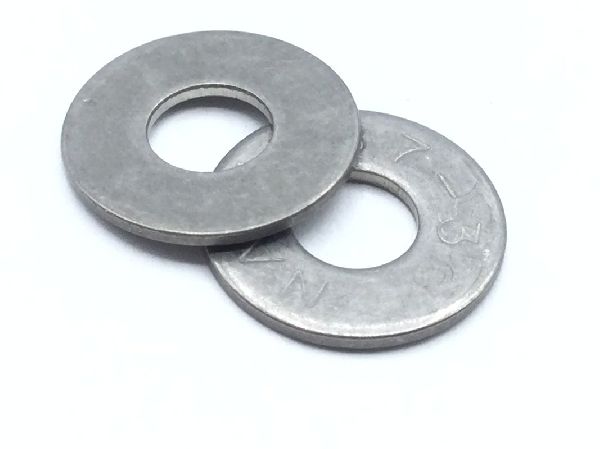

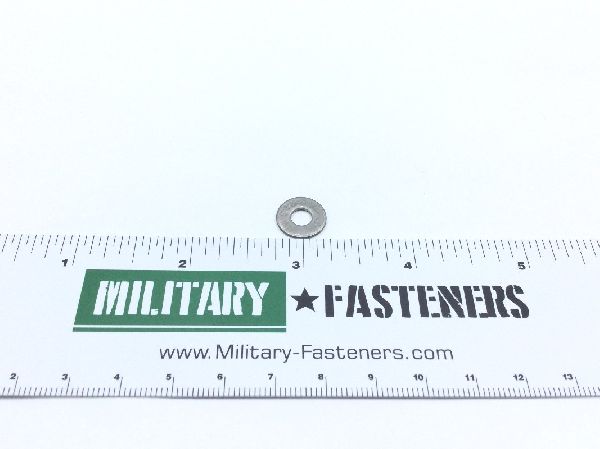

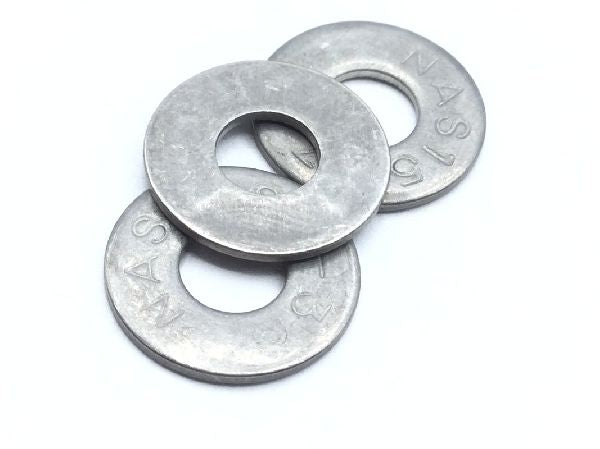

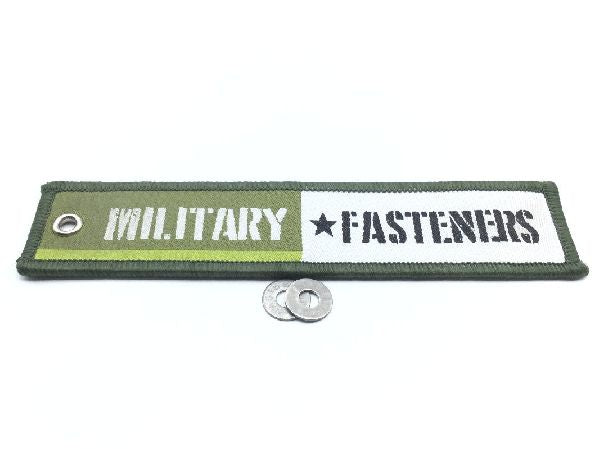

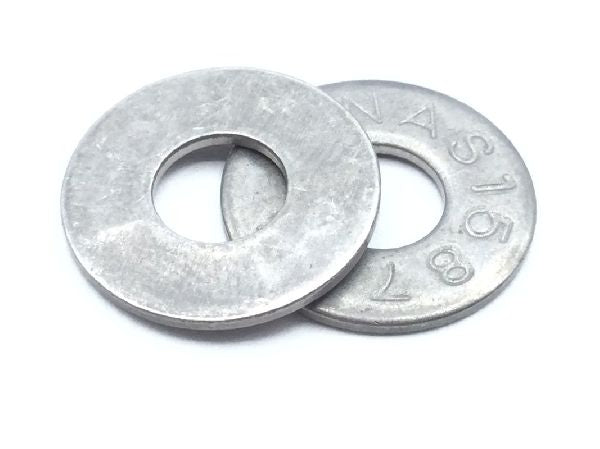

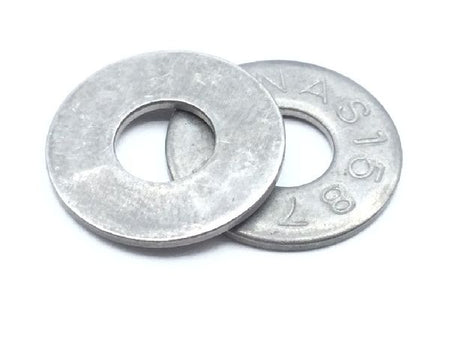

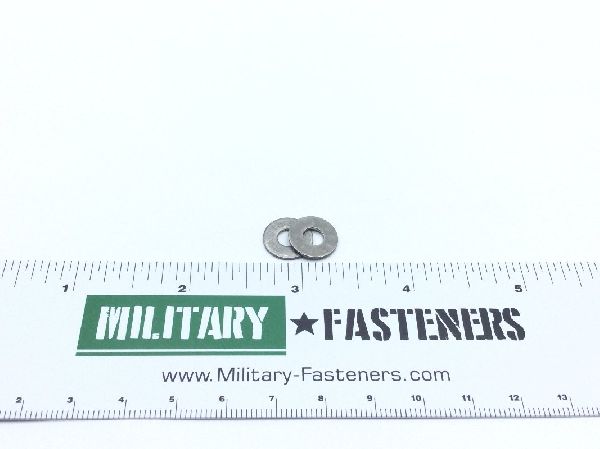

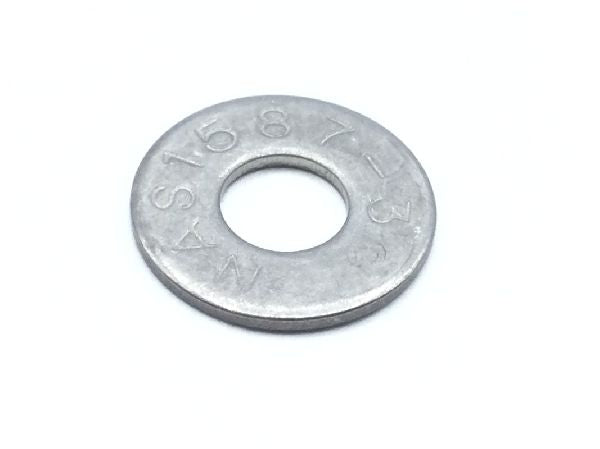

NAS1587-3 Flat Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.26

Units per Pack 100

Price per Pack $26.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $26.00

Add item to quote

Material

Steel comp 321 or steel comp 348 or steel comp 303

Surface Treatment

Qq-p-35 federal specification single treatment response

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
Material Specification: Mil-s-6721 military specification 1st material response or qq-s-763 federal specification 1st material response and mil-s-6721 military specification 2nd material response and qq-s-763 federal specification 3rd material response
Min. Tensile Strength (psi): 75000 pounds per square inch
Overall Diameter: Between 0.459 inches and 0.479 inches
Specification Data: 80205-nas1587 professional/industrial association standard
Surface Finish: 63 microinches top
Thickness: 0.032 inches
Hole Diameter: Between 0.192 inches and 0.198 inches
