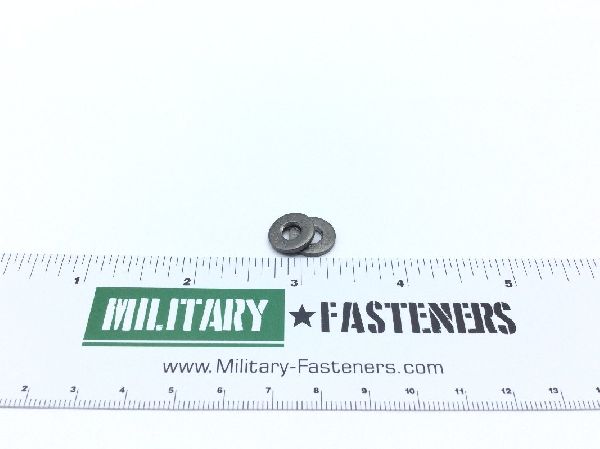

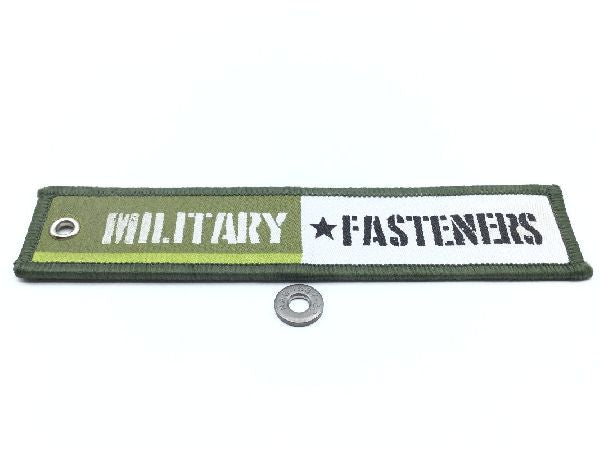

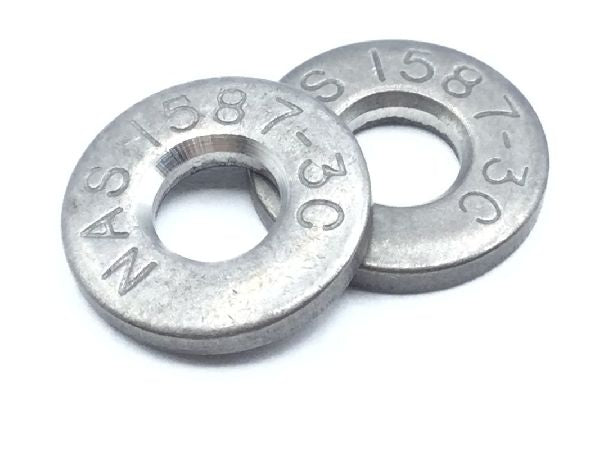

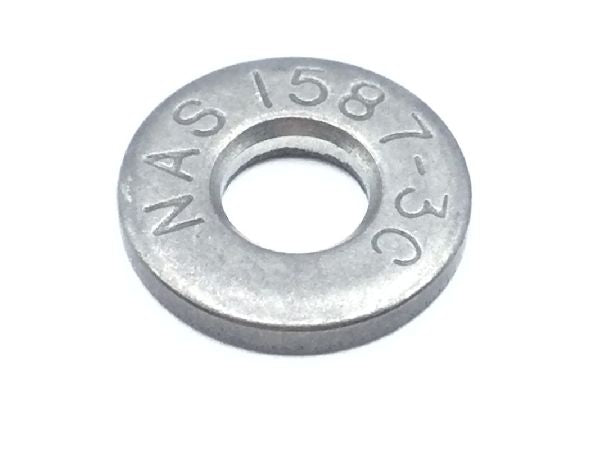

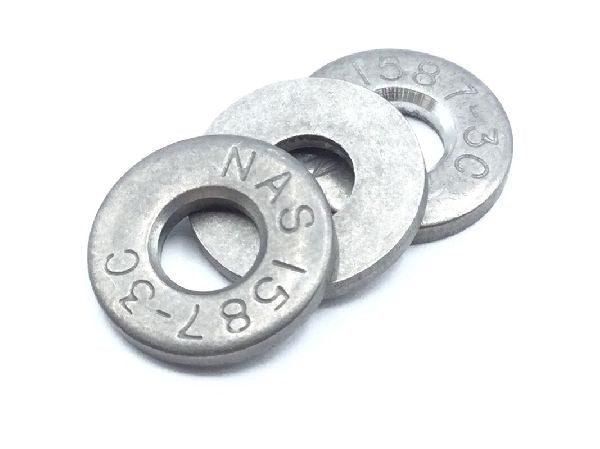

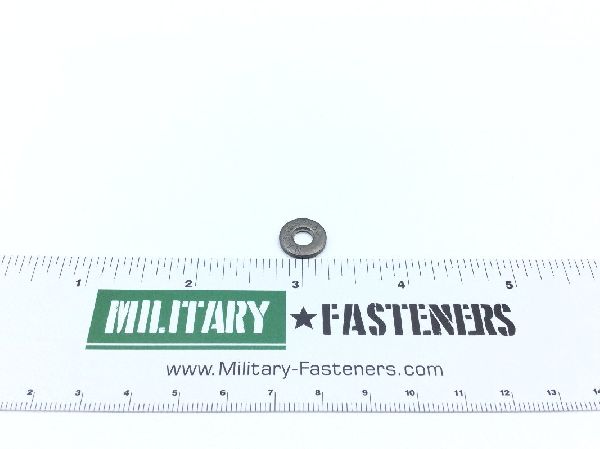

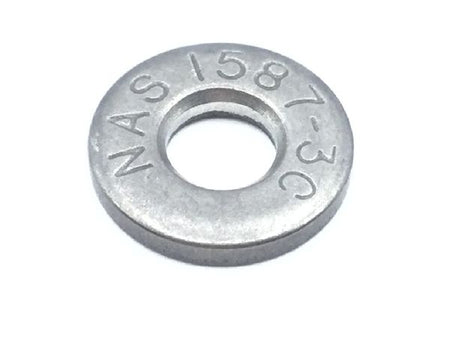

NAS1587-3C Recessed Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel comp 321 and steel comp 347

Surface Treatment

Mil-s-5002 military specification single treatment response

End Application: A-10 aircraft
Material Specification: Qq-s-763 federal specification single material response
Material Thickness: Between 0.052 inches and 0.072 inches
Outside Diameter: Between 0.459 inches and 0.479 inches
Recess Angle: 45.0 degrees
Recess Diameter: Between 0.275 inches and 0.285 inches
Special Features: Temperature rated 1200 degrees fahrenheit
Specification Data: 80205-nas1587 professional/industrial association standard
Style Designator: Recessed
Hole Diameter: Between 0.192 inches and 0.198 inches
