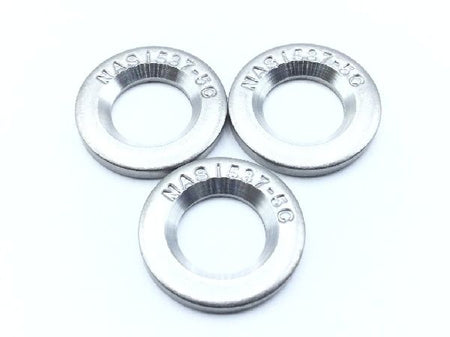

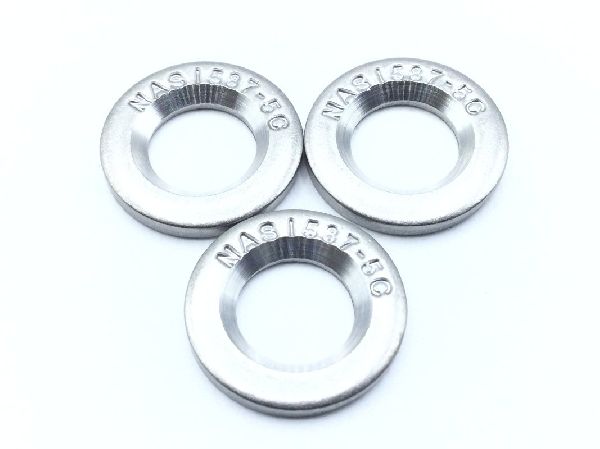

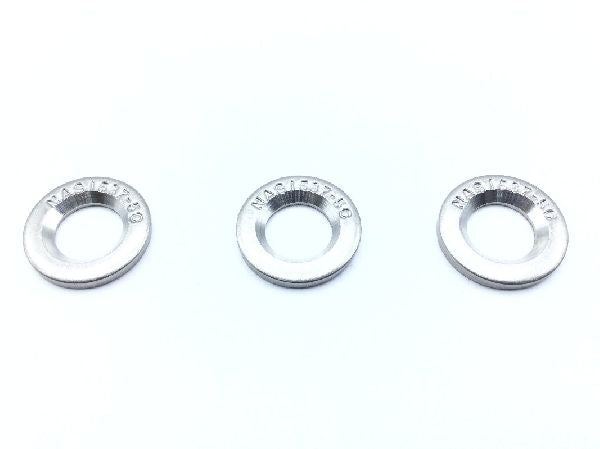

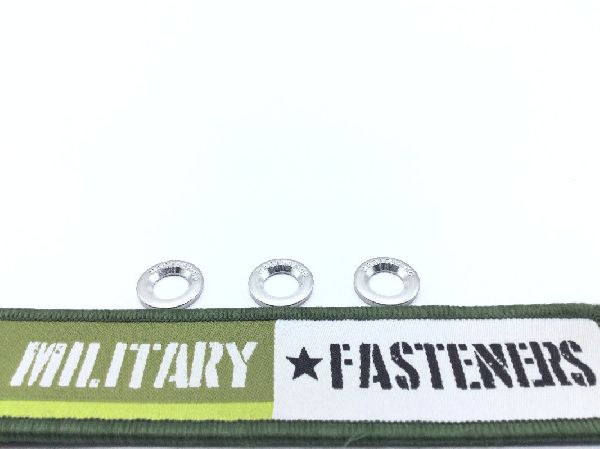

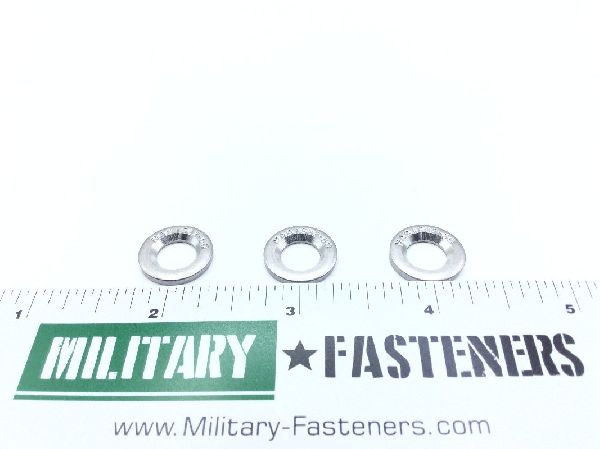

NAS1587-5C Recessed Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 321 or steel comp 347 or steel comp 348

Material Specification: Qq-s-763 federal specification 1st material response or qq-s-763 federal specification 2nd material response or mil-s-6721 military specification all material responses
Material Thickness: 0.078 inches
Outside Diameter: 0.593 inches
Recess Angle: 90.0 degrees
Recess Diameter: Between 0.396 inches and 0.406 inches
Specification Data: 80205-nas1587 professional/industrial association standard
Style Designator: Recessed
Surface Finish: 63.0 microinches top
Hole Diameter: Between 0.315 inches and 0.324 inches
