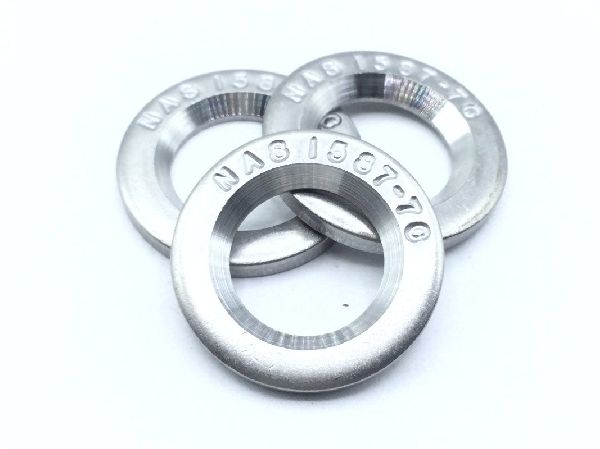

NAS1587-7C Recessed Washer

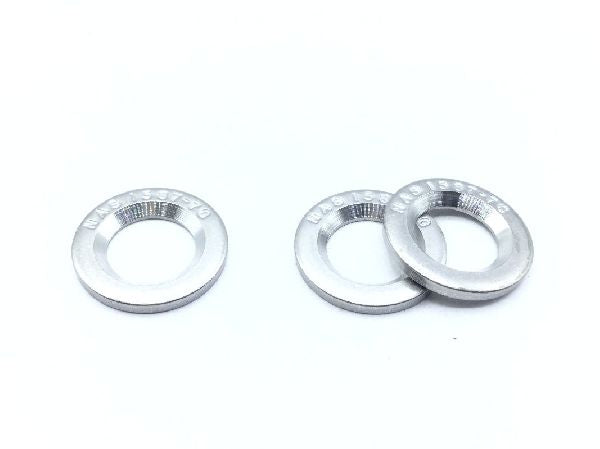

NAS1587-7C Recessed Washer (2)

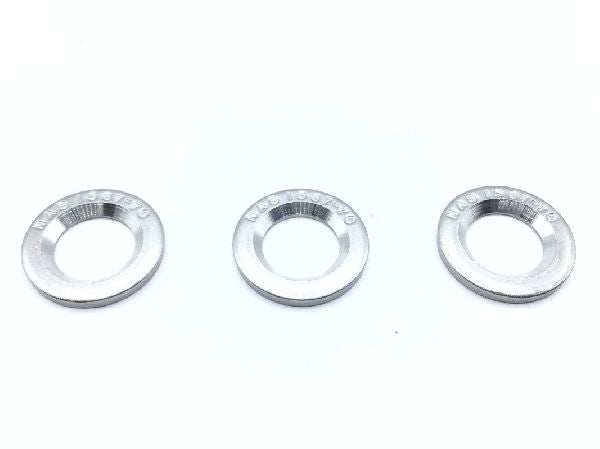

NAS1587-7C Recessed Washer (3)

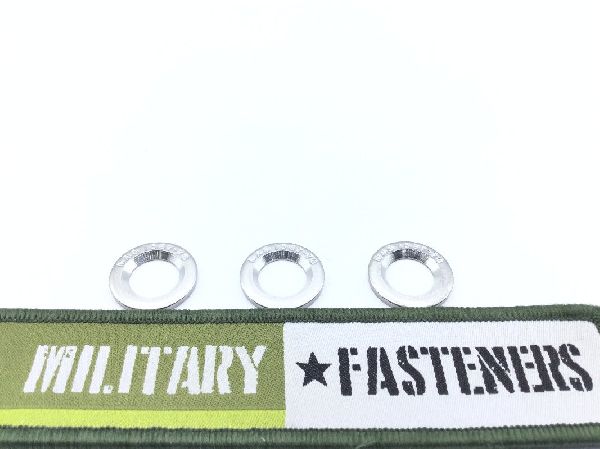

NAS1587-7C Recessed Washer (4)

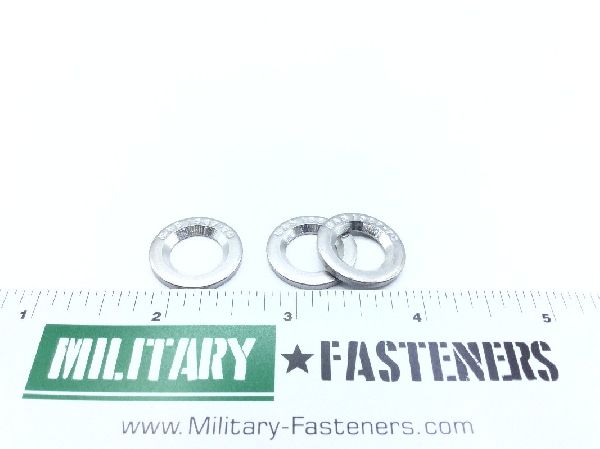

NAS1587-7C Recessed Washer (5)

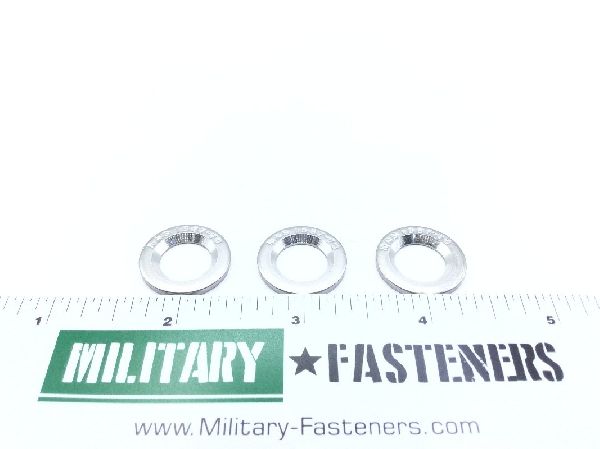

NAS1587-7C Recessed Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1587-7C Recessed Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Material

Steel comp 321 or steel comp 347

Surface Treatment

Qq-p-35 federal specification single treatment response

Material Specification: Mil-s-6721 military specification all material responses or qq-s-763 federal specification all material responses
Material Thickness: 0.078 inches
Outside Diameter: 0.781 inches
Recess Angle: 90.0 degrees
Recess Diameter: Between 0.543 inches and 0.557 inches
Specification Data: 80205-nas1587 professional/industrial association standard
Style Designator: Recessed
Surface Finish: 63.0 microinches top
Hole Diameter: Between 0.441 inches and 0.451 inches
