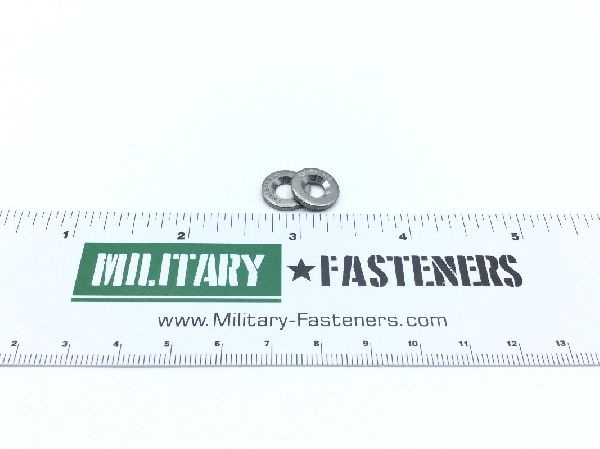

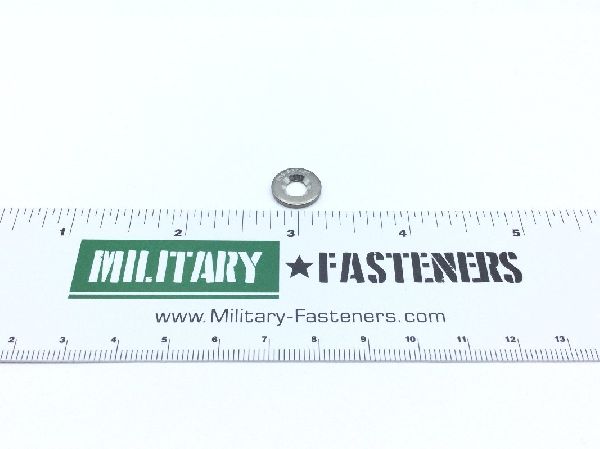

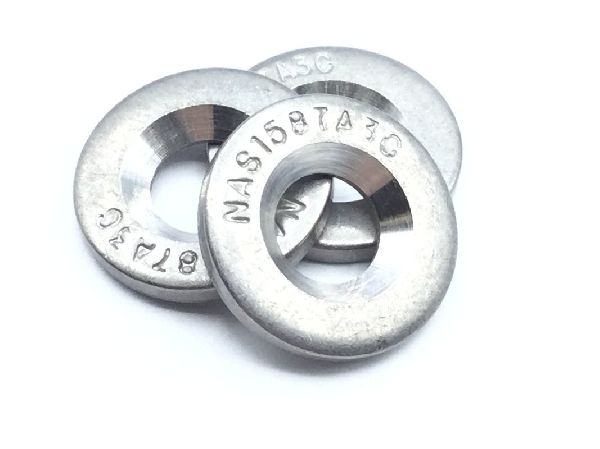

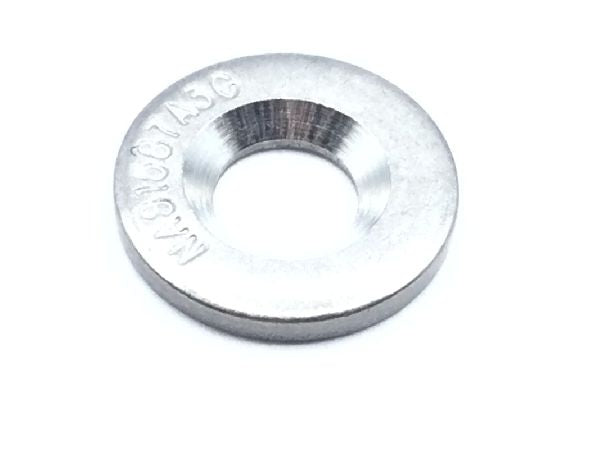

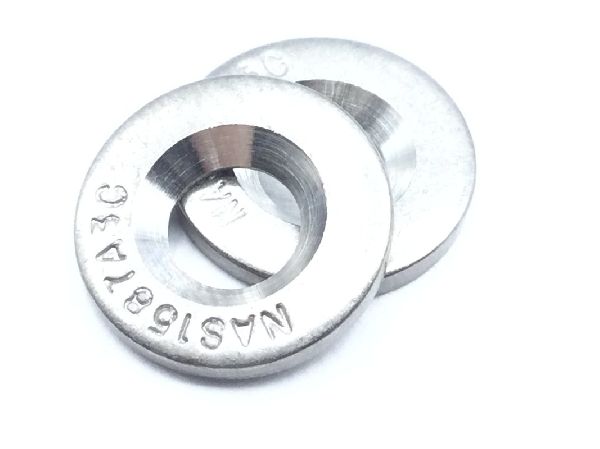

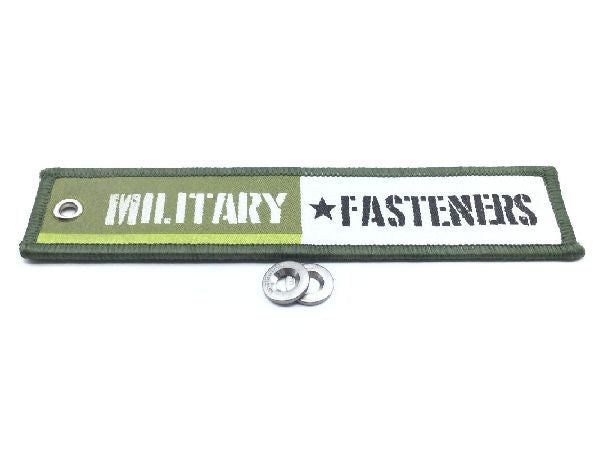

NAS1587A3C Recessed Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Mil-s-5002 military specification single treatment response

End Application: A-10 aircraft
Material Specification: Qq-s-763 federal specification single material response
Material Thickness: Between 0.052 inches and 0.072 inches
Outside Diameter: Between 0.459 inches and 0.479 inches
Recess Angle: 45.0 degrees
Recess Diameter: Between 0.275 inches and 0.285 inches
Special Features: Temperature rated 1200 degrees fahrenheit
Specification Data: 80205-nas1587 professional/industrial association standard
Style Designator: Recessed
Hole Diameter: Between 0.192 inches and 0.198 inches
