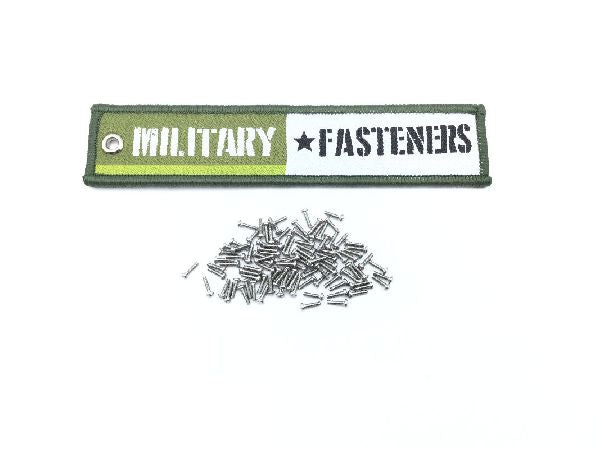

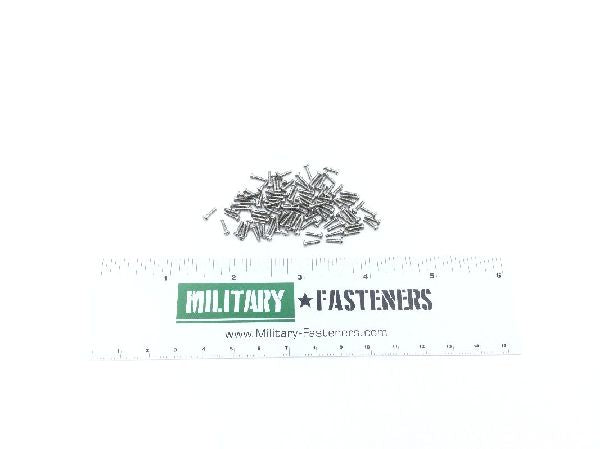

NAS1635-00-4 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.230 inches and 0.250 inches
Head Height: Between 0.036 inches and 0.044 inches
Internal Drive Style: Cross recess type 1
Screw Material: Stainless Steel
Screw Surface Treatment: Passivate
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: 0.250 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.104 inches and 0.116 inches
