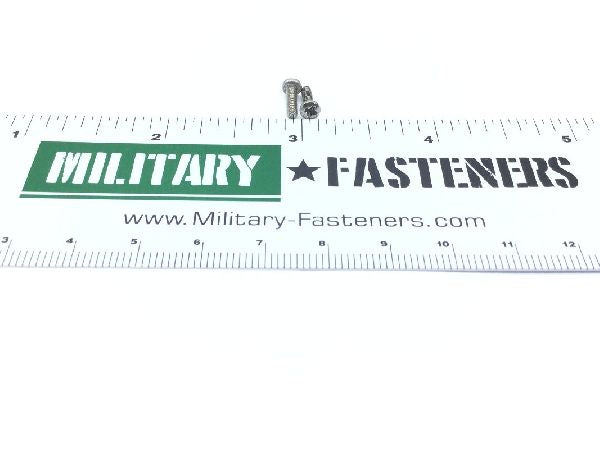

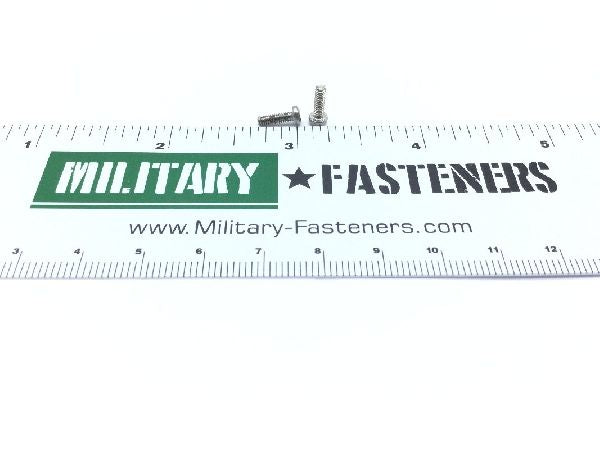

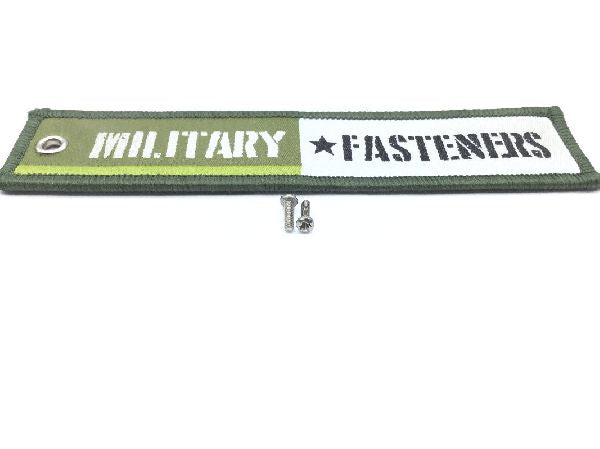

NAS1635-02-5 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.26

Units per Pack 100

Price per Pack $26.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $26.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.282 inches and 0.312 inches
Head Height: Between 0.053 inches and 0.062 inches
Internal Drive Style: Cross recess type 1
Screw Material: Stainless Steel
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Finish e300 military specification single treatment response mil-f-14072
Specification Data: 80205-nas1635 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.246 inches and 0.312 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.155 inches and 0.167 inches
