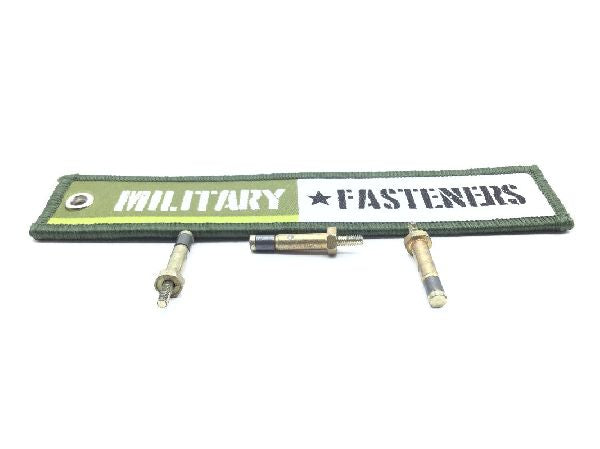

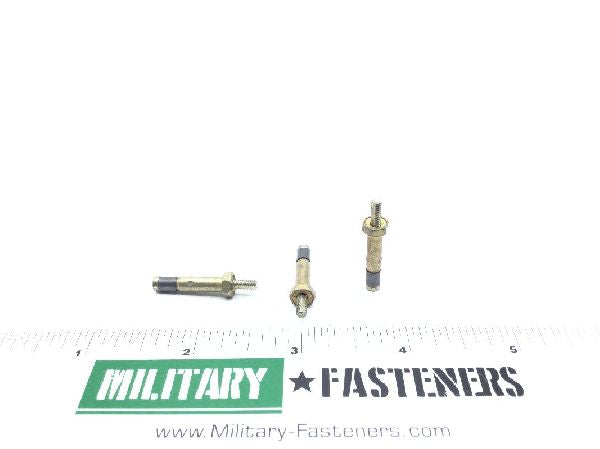

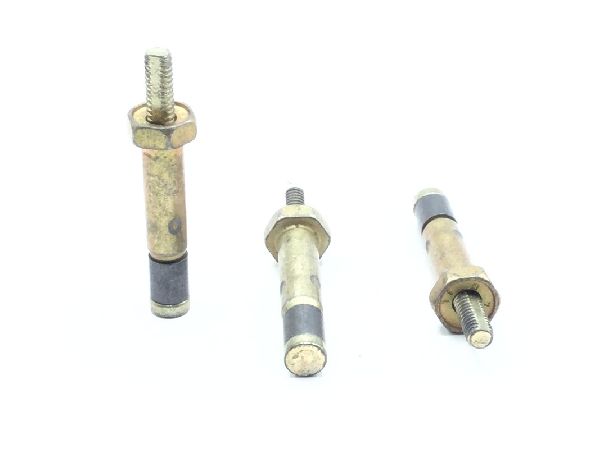

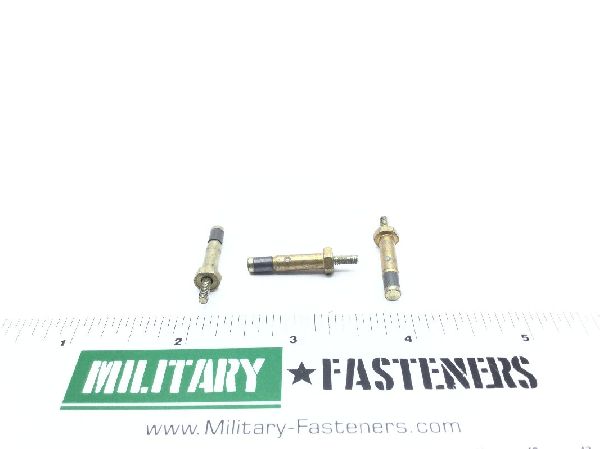

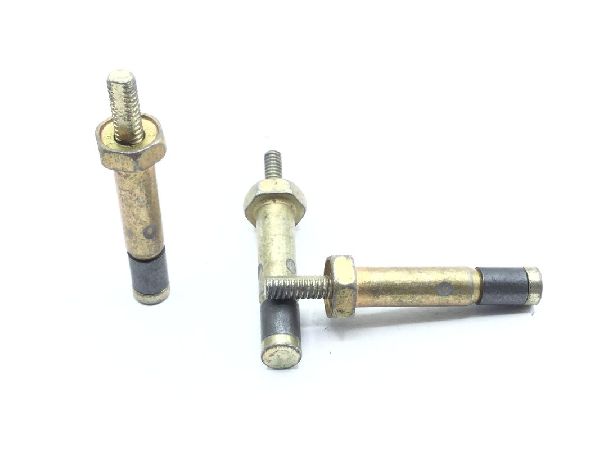

NAS1669-08L7 Blind Rivet

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Expansion Device: Serrated stem-type w
Fastener Length: Between 0.528 inches and 0.558 inches
Grip Length: Between 0.407 inches and 0.469 inches
Hardness Rating: 39.0 rockwell c nut and 43.0 rockwell c nut
Head Height: 0.096 inches
Material Specification: Mil-s-5626 military specification 1st material response bolt or mil-s-6049 military specification 2nd material response bolt or mil-s-6758 military specification 3rd material response bolt
Shank Diameter: Between 0.163 inches and 0.165 inches
Shank Style: Threaded self-plugging shank w/sleeve
Shear Strength: 3355 double pounds per square inch
Specification Data: 80205-nas1669 professional/industrial association standard
Width Across Flats: Between 0.244 inches and 0.250 inches
