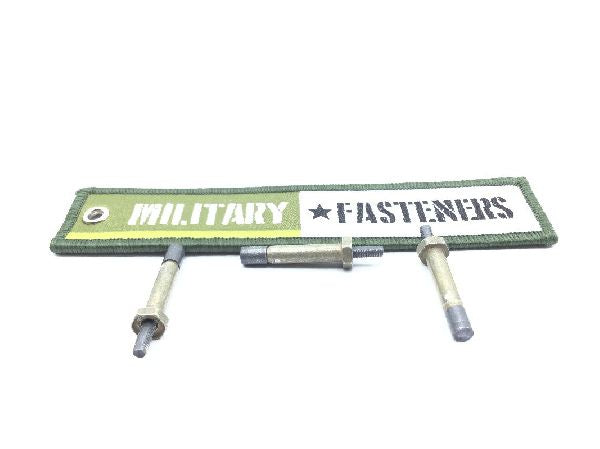

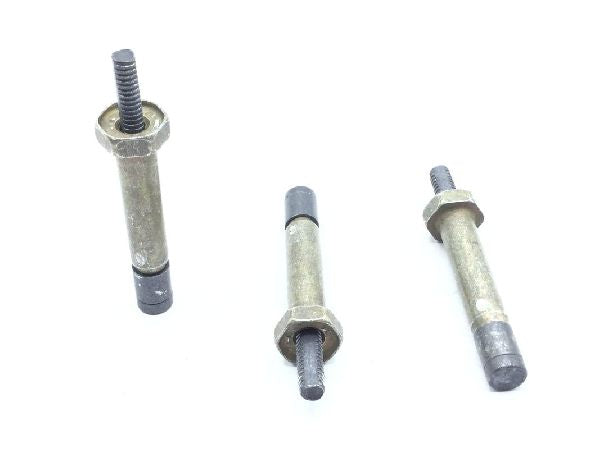

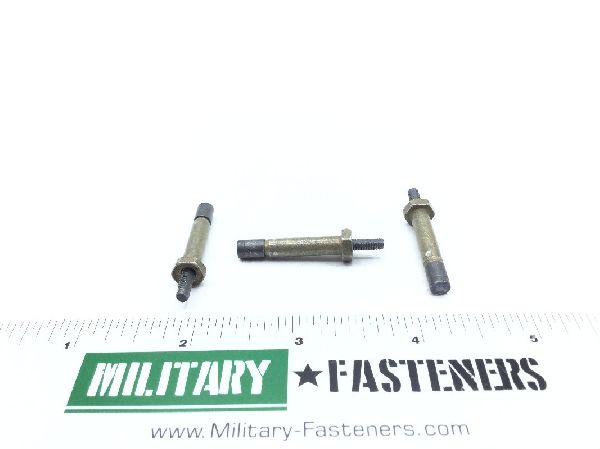

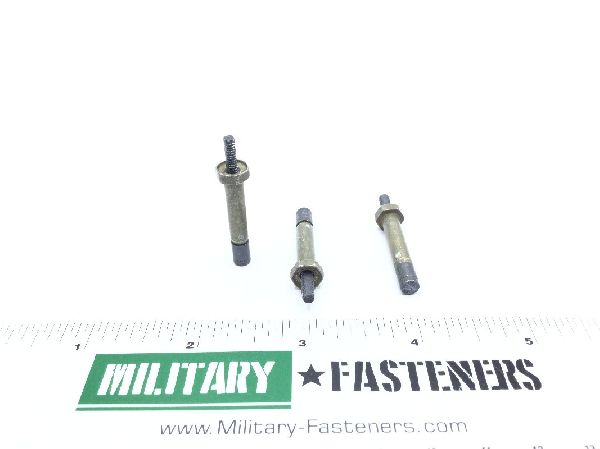

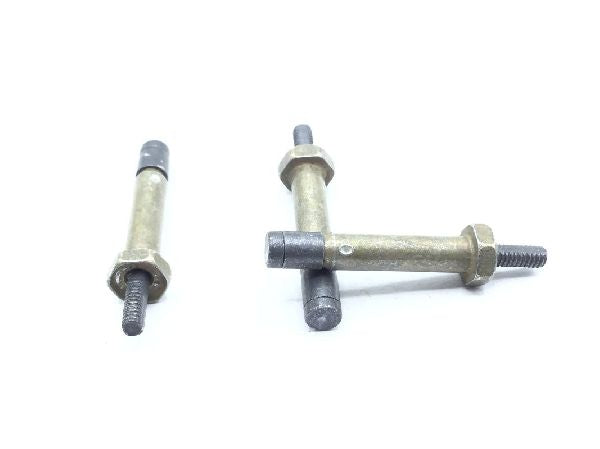

NAS1669-3L11 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4140 nut or steel comp 8740 nut or steel comp 4130 nut

Surface Treatment

Cl 3 federal specification 1st treatment response sleeve and qq-p-35 federal specification 2nd treatment response sleeve type 1 qq-p-416

Expansion Device: Threaded mandrel
Fastener Length: Between 0.776 inches and 0.806 inches
Grip Length: Between 0.657 inches and 0.719 inches
Hardness Rating: 39.0 rockwell c bolt and 43.0 rockwell c bolt
Head Height: 0.113 inches
Material Specification: Mil-s-5626 military specification 1st material response bolt or mil-s-6049 military specification 2nd material response bolt or mil-s-6758 military specification 3rd material response bolt
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Threaded self-plugging shank w/sleeve
Specification Data: 80205-nas1669 professional/industrial association standard
Width Across Flats: Between 0.305 inches and 0.312 inches
