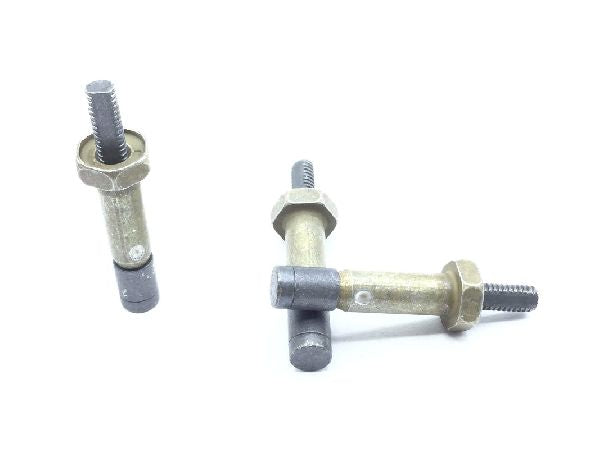

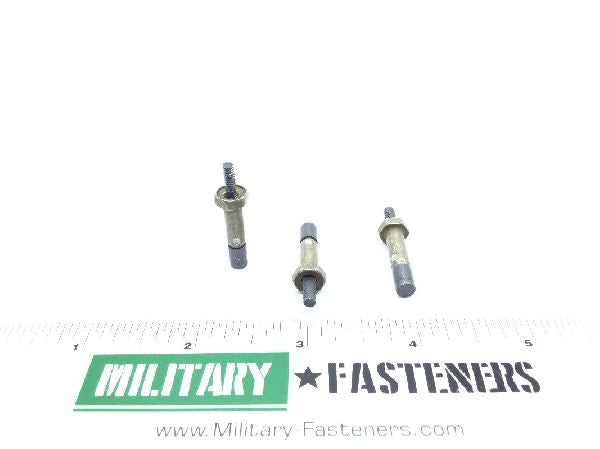

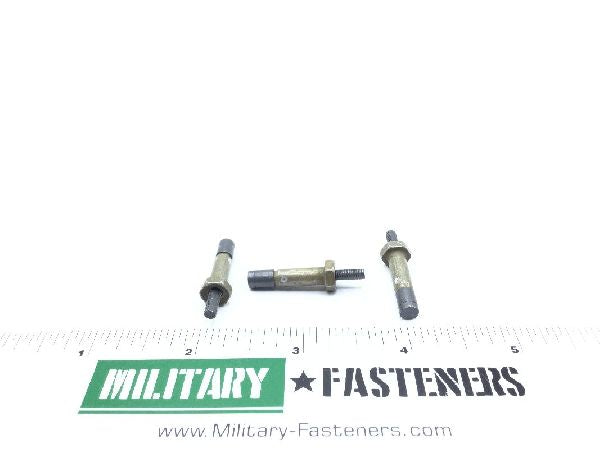

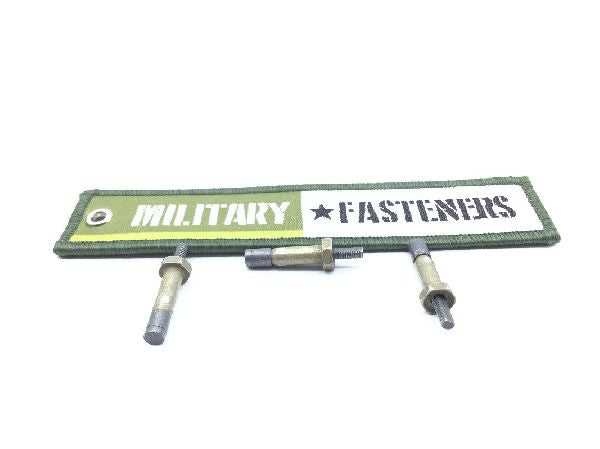

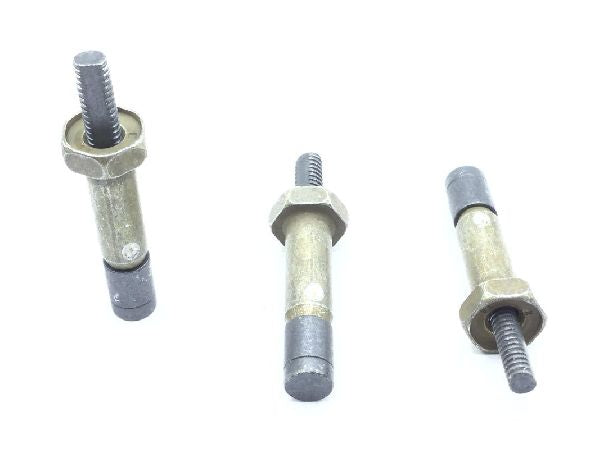

NAS1669-3L7 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $6.58

Units per Pack 10

Price per Pack $65.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $65.80

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 nut or steel comp 8740 nut or steel comp 4130 nut

Surface Treatment

Cl 3 federal specification 1st treatment response sleeve and qq-p-35 federal specification 2nd treatment response sleeve type 1 qq-p-416

Expansion Device: Threaded mandrel
Fastener Length: 0.541 inches
Grip Length: Between 0.407 inches and 0.469 inches
Hardness Rating: 39.0 rockwell c nut and 43.0 rockwell c nut
Head Height: 0.113 inches
Material Specification: Mil-s-5626 military specification 1st material response bolt or mil-s-6049 military specification 2nd material response bolt or mil-s-6758 military specification 3rd material response bolt
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Threaded self-plugging shank w/sleeve
Shear Strength: 5240 double pounds per square inch
Specification Data: 80205-nas1669 professional/industrial association standard
Width Across Flats: Between 0.305 inches and 0.312 inches
