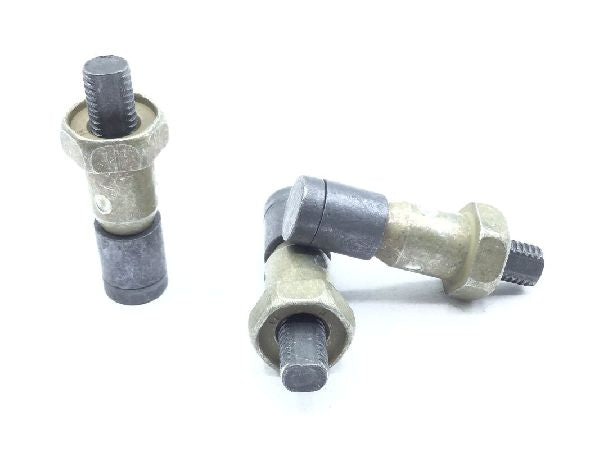

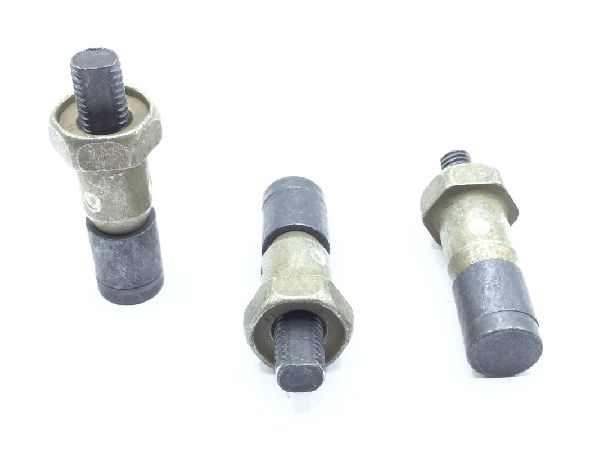

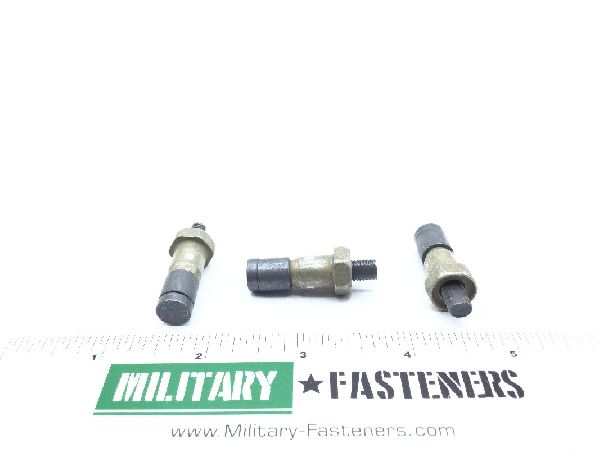

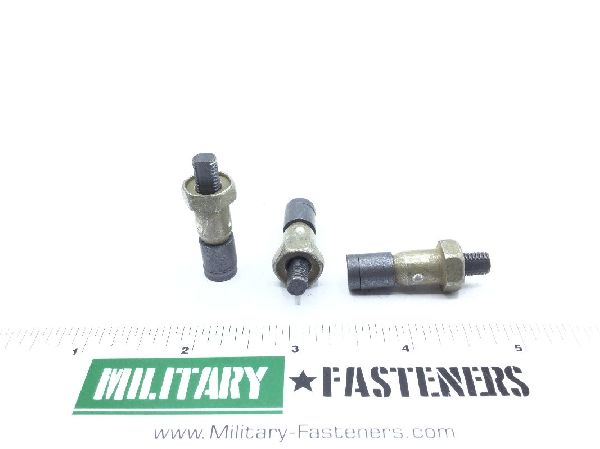

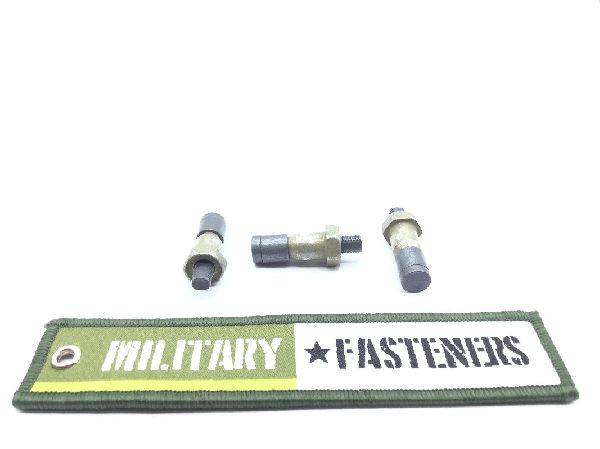

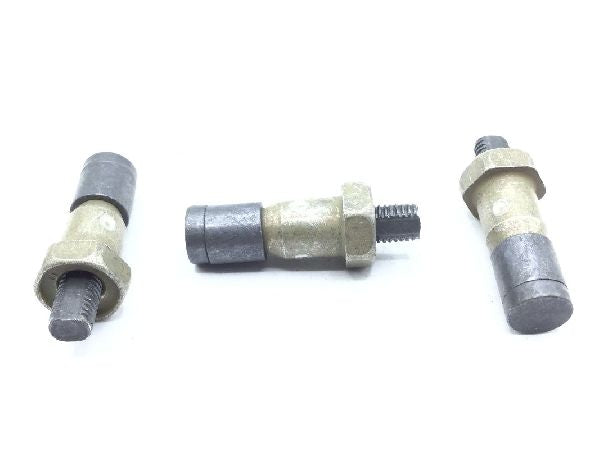

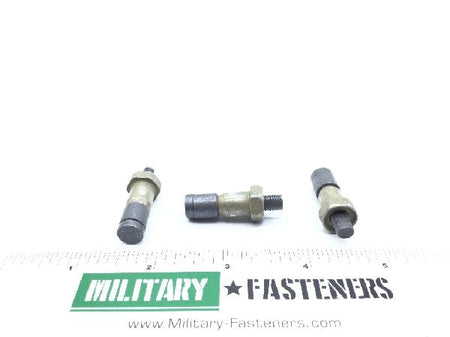

NAS1669-6L5 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $20.74

Units per Pack 5

Price per Pack $103.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $103.70

Add item to quote

Head Style

Hexagon

Material

Steel comp 303f sleeve

Surface Treatment

Cl 3 federal specification single treatment response body type 2 qq-p-416

Expansion Device: Threaded stem
Fastener Length: Between 0.527 inches and 0.557 inches
Grip Length: Between 0.281 inches and 0.344 inches
Head Height: Between 0.180 inches and 0.190 inches
Heat Treatment: Annealed
Material Specification: Mil-s-6758 military specification 1st material response stem or mil-s-6049 military specification 2nd material response stem or mil-s-5626 military specification 3rd material response stem
Min. Tensile Strength (psi): 180000 pounds per square inch
Shank Diameter: Between 0.373 inches and 0.375 inches
Shank Style: Threaded self-plugging shank w/sleeve
Shear Strength: 19500 double pounds per square inch
Special Features: Self-locking
Specification Data: 80205-nas1669 professional/industrial association standard
Width Across Flats: Between 0.491 inches and 0.500 inches
Lubrication: Wax or dry film
