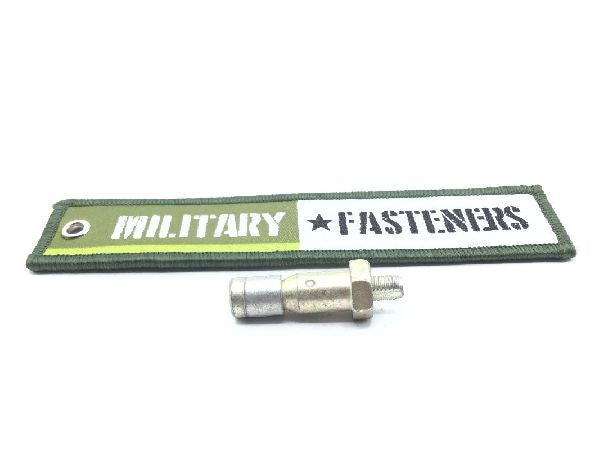

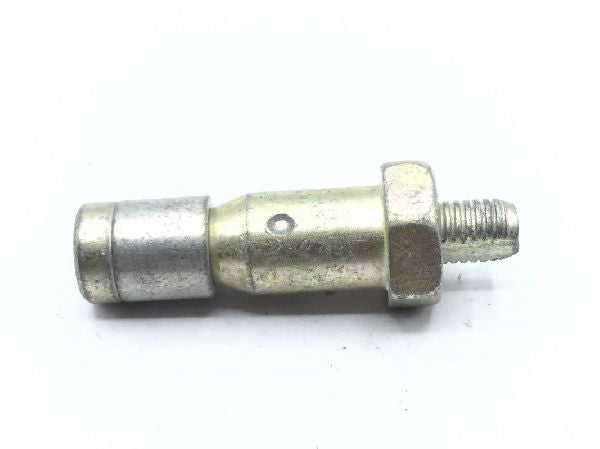

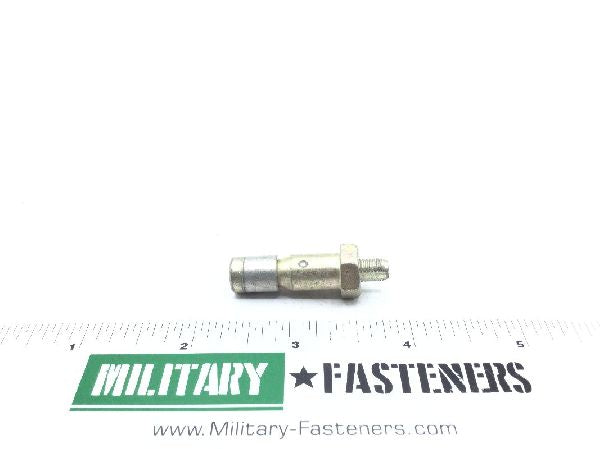

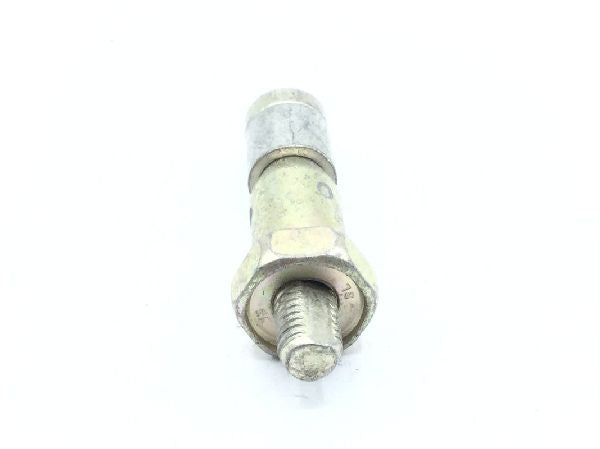

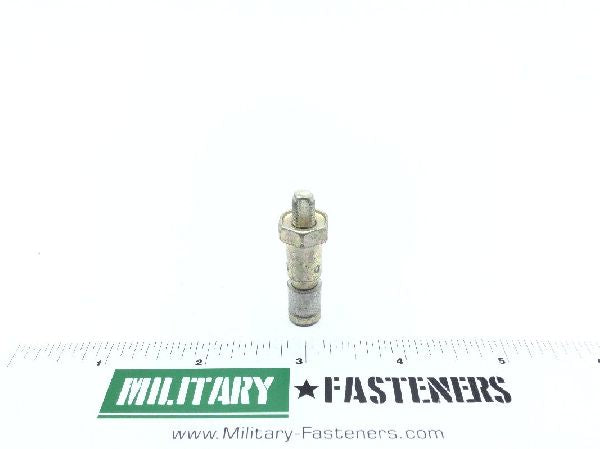

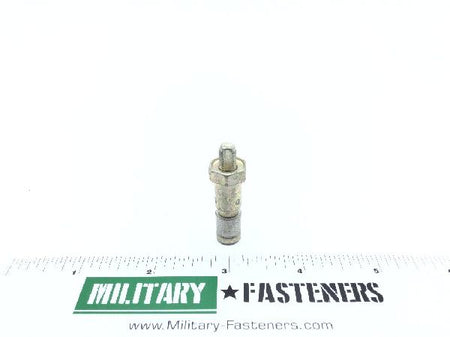

NAS1669-6L7 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-35 federal specification 1st treatment response sleeve and qq-p-416 type 1 cl 3 federal specification 2nd treatment response sleeve

Expansion Device: Serrated stem-type w
Fastener Length: Between 0.652 inches and 0.682 inches
Grip Length: Between 0.406 inches and 0.469 inches
Hardness Rating: 39.0 rockwell c bolt and 43.0 rockwell c bolt
Head Height: Between 0.180 inches and 0.190 inches
Heat Treatment: Annealed
Material Specification: Mil-s-5626 military specification 1st material response nut or mil-s-6049 military specification 2nd material response nut or mil-s-6758 military specification 3rd material response nut
Min. Tensile Strength (psi): 180000 pounds per square inch
Shank Diameter: Between 0.373 inches and 0.375 inches
Shank Style: Threaded self-plugging shank w/sleeve
Special Features: Heat process mil-h-6875
Width Across Flats: Between 0.491 inches and 0.500 inches
Lubrication: Dry film or wax
