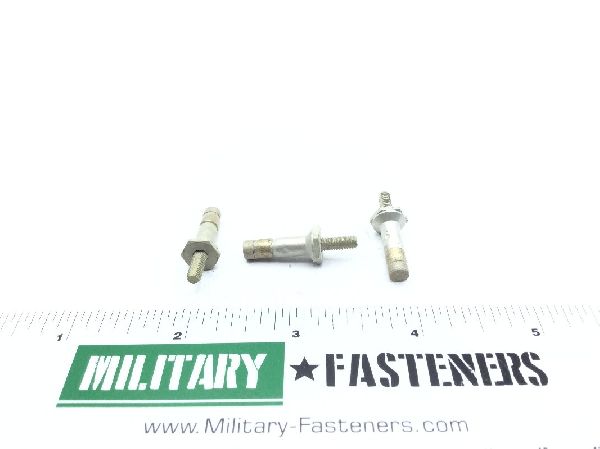

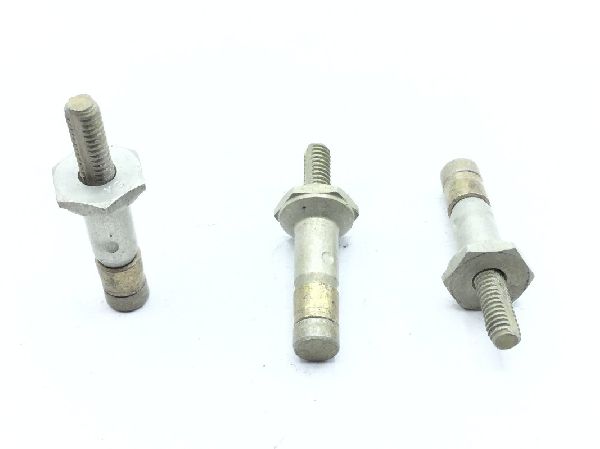

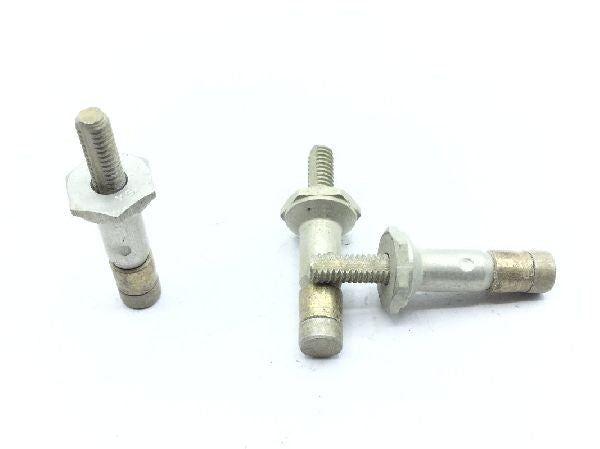

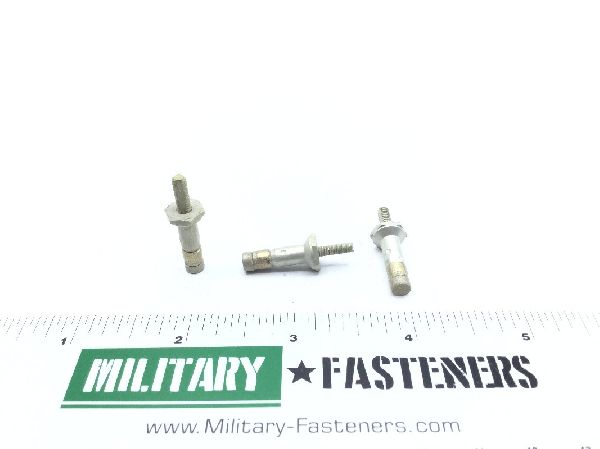

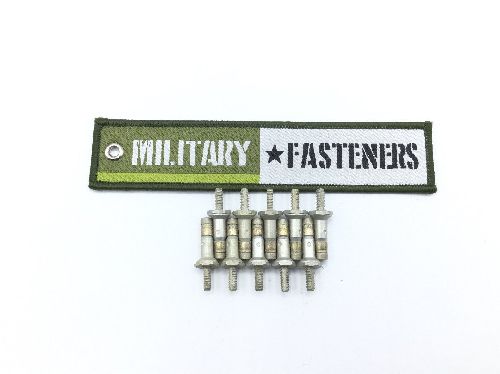

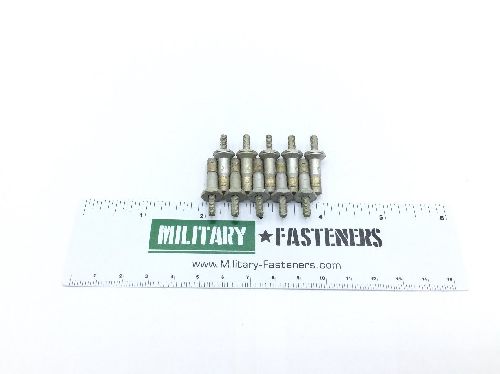

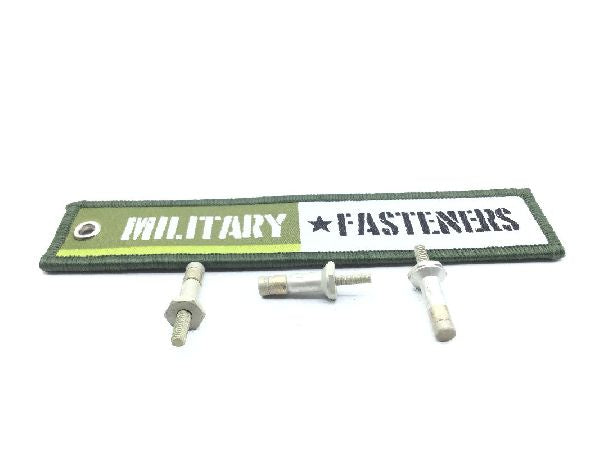

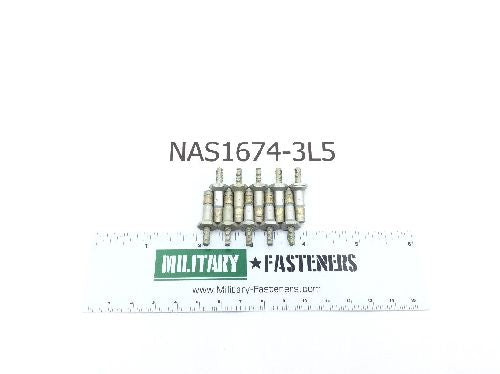

NAS1674-3L5 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $9.01

Units per Pack 10

Price per Pack $90.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $90.10

Add item to quote

Head Style

Hexagon countersunk

Material

Steel comp 4140 bolt or steel comp 8740 bolt or steel comp 4130 bolt

Surface Treatment

Cl 2 federal specification single treatment response bolt type 2 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Threaded stem
Fastener Length: Between 0.481 inches and 0.511 inches
Grip Length: Between 0.282 inches and 0.344 inches
Hardness Rating: 39.0 rockwell c bolt and 43.0 rockwell c bolt
Head Height: Between 0.072 inches and 0.079 inches
Material Specification: Mil-s-5626 military specification 1st material response bolt or mil-s-6049 military specification 2nd material response bolt or mil-s-6758 military specification 3rd material response bolt
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Threaded self-plugging shank w/sleeve
Specification Data: 80205-nas1674 professional/industrial association standard
Width Across Flats: Between 0.332 inches and 0.346 inches
