NAS1676C416 Lock Washer

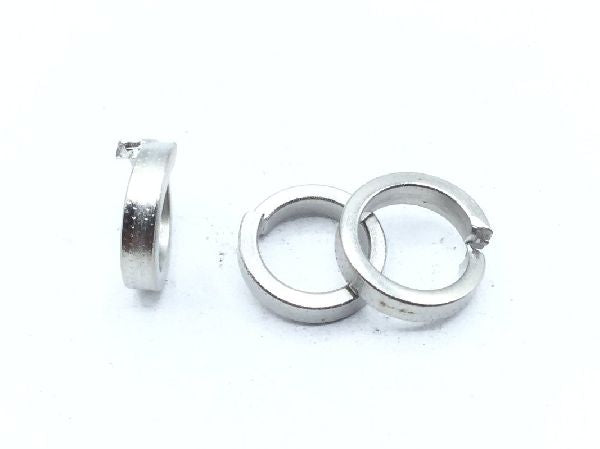

NAS1676C416 Lock Washer (2)

NAS1676C416 Lock Washer (3)

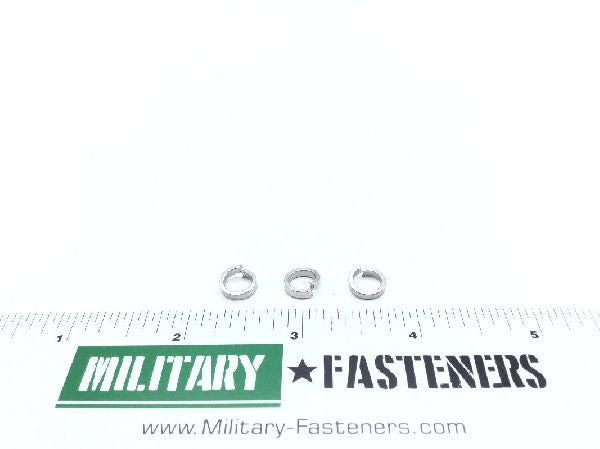

NAS1676C416 Lock Washer (4)

NAS1676C416 Lock Washer (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1676C416 Lock Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 301 or steel comp 302 or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314

Departure From Cited Designator: As modified by dim.
End Application: Mrap rg-33
Hardness Rating: Between 35.0 rockwell c and 43.0 rockwell c
Material Specification: 66 federal standard all material responses
Material Thickness: 0.078 inches
Nondefinitive Specification/std Data: C class
Outside Diameter: 0.363 inches
Specification Data: 80205-nas1676 professional/industrial association standard
Style Designator: Split helical-right hand
Hole Diameter: Between 0.255 inches and 0.267 inches
