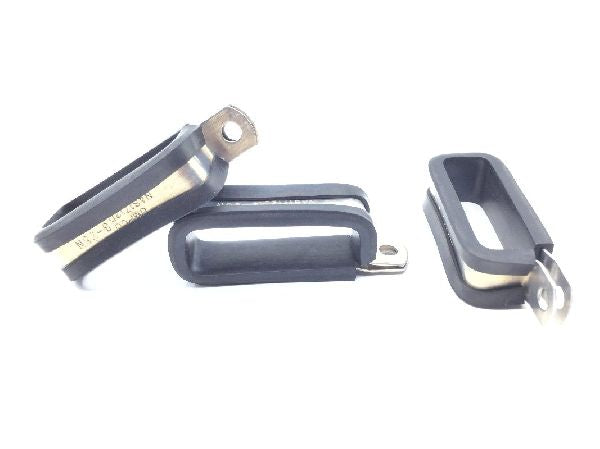

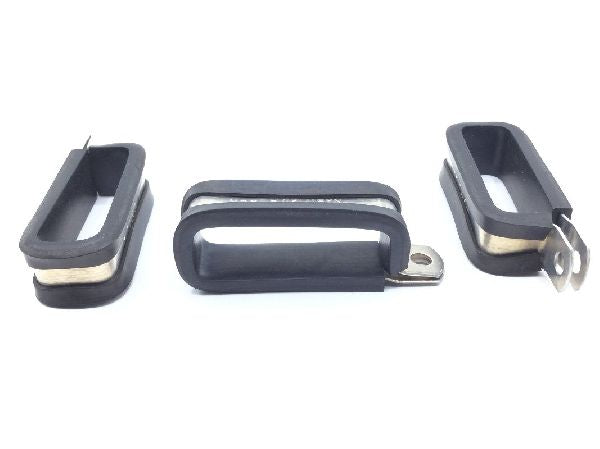

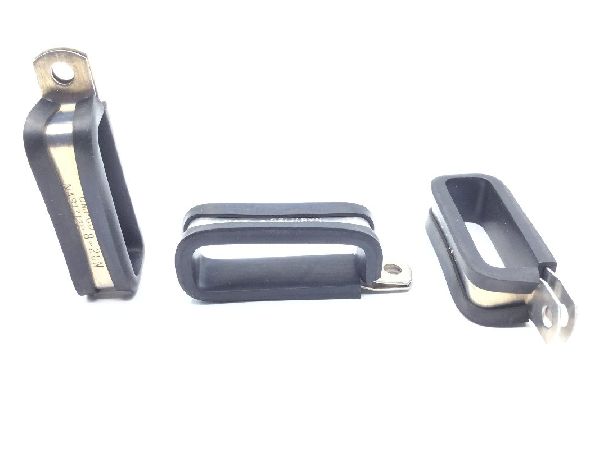

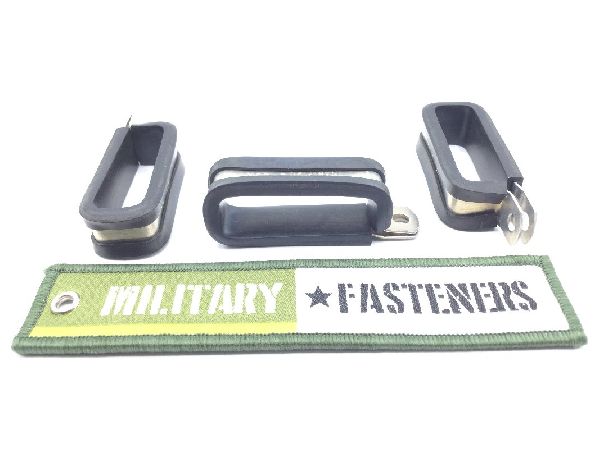

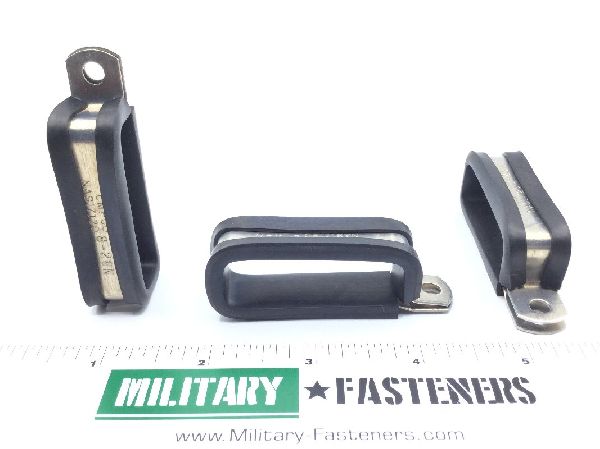

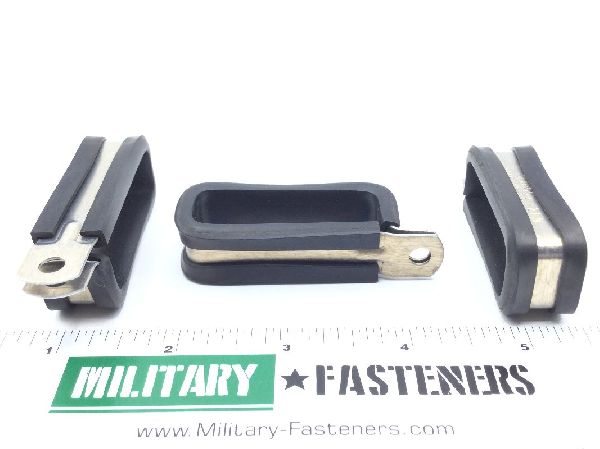

NAS1712D8-28N Loop Clamp
NAS1712D8-28N Loop Clamp (2)
NAS1712D8-28N Loop Clamp (3)
NAS1712D8-28N Loop Clamp (4)
NAS1712D8-28N Loop Clamp (5)
NAS1712D8-28N Loop Clamp (6)
NAS1712D8-28N Loop Clamp
NAS1712D8-28N Loop Clamp (2)
NAS1712D8-28N Loop Clamp (3)
NAS1712D8-28N Loop Clamp (4)
NAS1712D8-28N Loop Clamp (5)
NAS1712D8-28N Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1712D8-28N Loop Clamp

Product Series
NAS
ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber chloroprene class cr cushion
Center To Center Distance Between Loop And Mounting Hole
1.277 inches
Cushioning Environmental Protection
Heat and oil resistant and weather resistant
Distance From Loop Center To Tongue End
1.496 inches
Loop Length
Between 1.735 inches and 1.765 inches
Loop Width
Between 0.485 inches and 0.515 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.032 inches
Overall Width
0.500 inches
Specification Data
80205-nas1712 professional/industrial association standard
Style Designator
Rectangular
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
