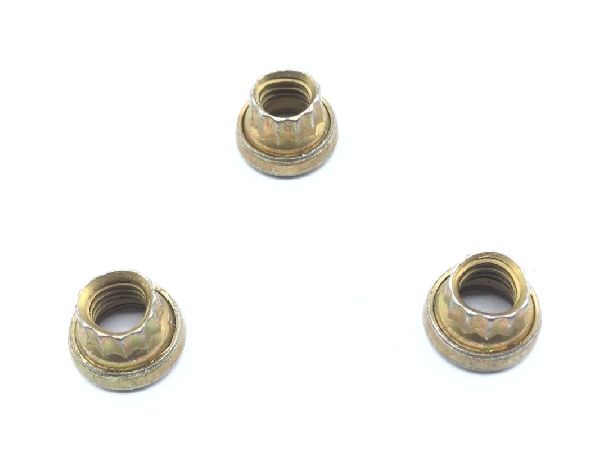

NAS1726-3E Self-Locking Assembled Washer Nut
NAS1726-3E Self-Locking Assembled Washer Nut (2)

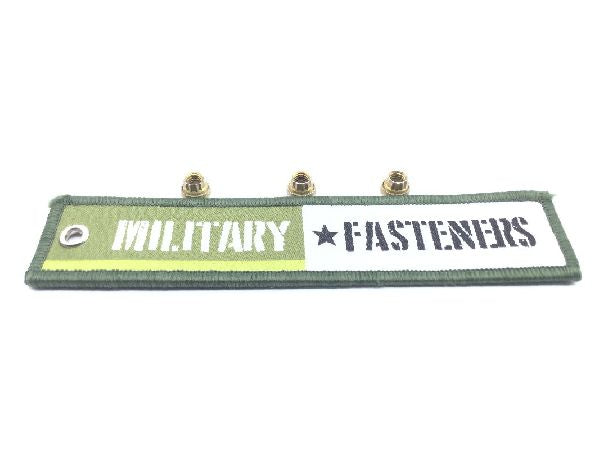

NAS1726-3E Self-Locking Assembled Washer Nut (3)

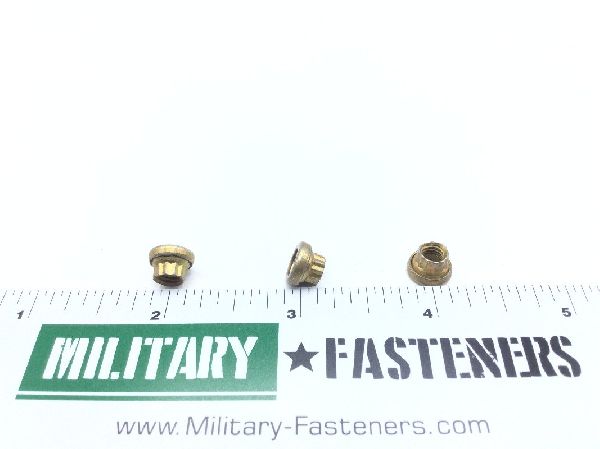

NAS1726-3E Self-Locking Assembled Washer Nut (4)
NAS1726-3E Self-Locking Assembled Washer Nut
NAS1726-3E Self-Locking Assembled Washer Nut (2)
NAS1726-3E Self-Locking Assembled Washer Nut (3)
NAS1726-3E Self-Locking Assembled Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1726-3E Self-Locking Assembled Washer Nut

Product Series
NAS
ECCN
EAR99
Schedule
8112.29.0000
Price per Unit $3.52
Units per Pack 10
Price per Pack $35.20
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $35.20
Add item to quote
Material
Steel comp 8740
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.190 inches
Bearing Surface Finish
125.0 microinches
Counterbore Diameter
0.211 inches nut and 0.221 inches nut
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Locking Feature
Prevailing torque all metal design
Nut Style
Flat with turned up edge
Overall Height
Between 0.223 inches and 0.243 inches
Specification Data
80205-nas1726 professional/industrial association standard
Tempurature Rating
450.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Washer Outside Diameter
0.380 inches
Width Across Flats
Between 0.213 inches and 0.221 inches
Lubrication
Dry film lubricant
