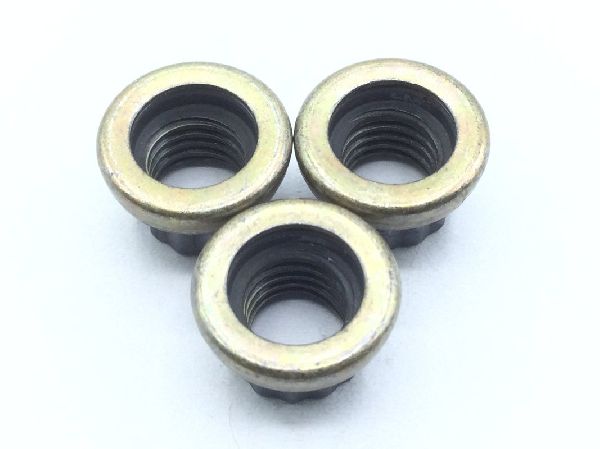

NAS1726-4D Self-Locking Assembled Washer Nut

NAS1726-4D Self-Locking Assembled Washer Nut (2)

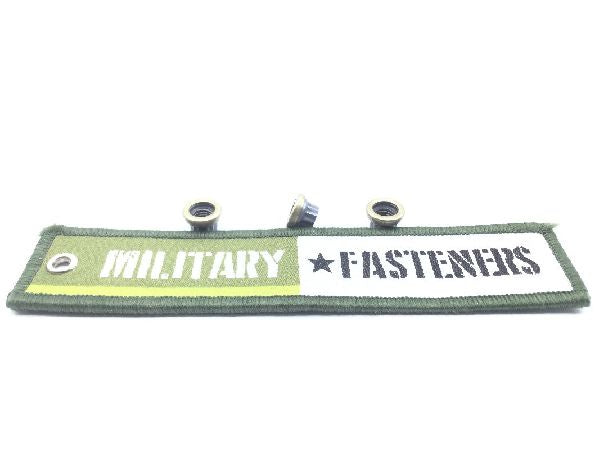

NAS1726-4D Self-Locking Assembled Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1726-4D Self-Locking Assembled Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1050 washer

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Bearing Surface Finish: 125.0 microinches
Counterbore Diameter: 0.277 inches nut and 0.287 inches nut
Hardness Rating: Washer rockwell c scale 40 min and rockwell c scale 45 max nut rockwell c scale 36 min and rockwell c scale 40 max
Locking Feature: Prevailing torque all metal design
Nut Counterbore Depth: 0.072 inches nut and 0.087 inches nut
Nut Style: Flat with turned up edge
Overall Height: Between 0.271 inches and 0.291 inches
Specification Data: 80205-nas1726 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Washer Outside Diameter: 0.460 inches
Width Across Flats: Between 0.274 inches and 0.284 inches
Lubrication: Dry film lubricant
