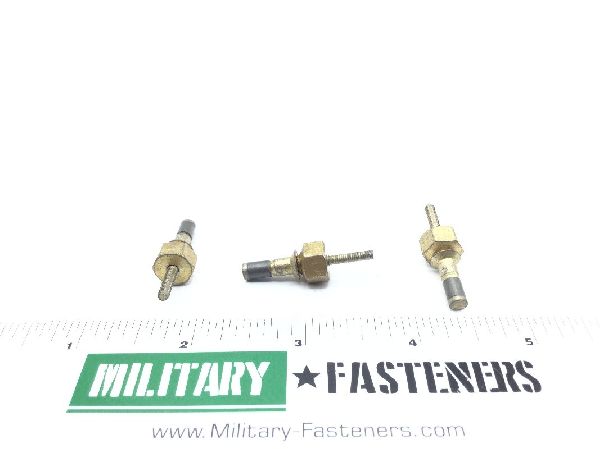

NAS1750-08DL3 Blind Rivet

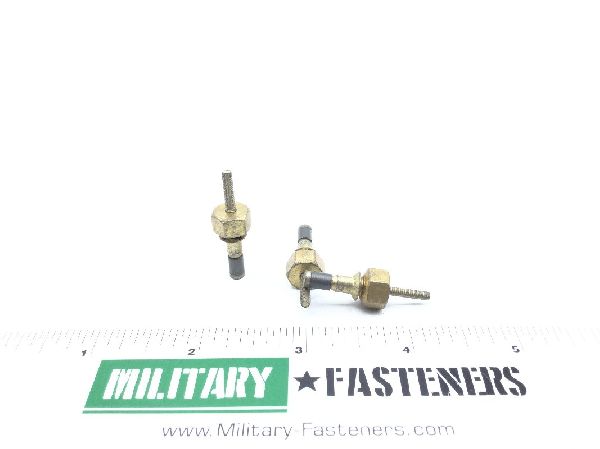

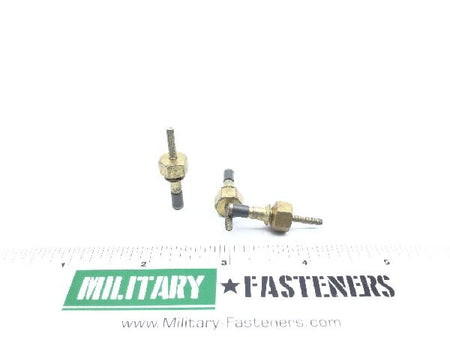

NAS1750-08DL3 Blind Rivet (2)

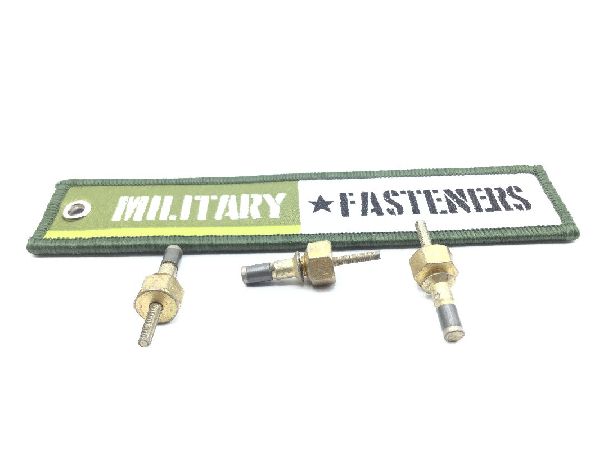

NAS1750-08DL3 Blind Rivet (3)

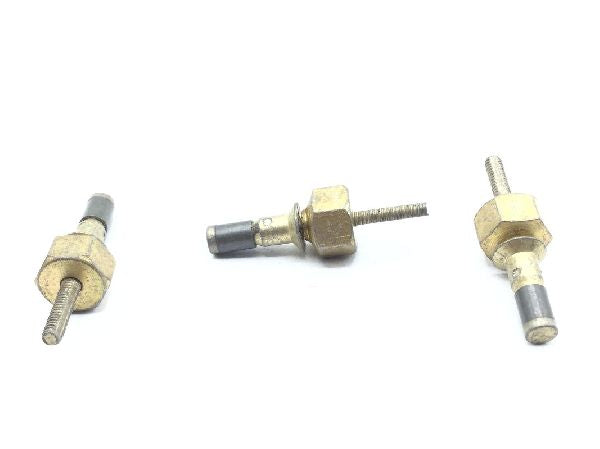

NAS1750-08DL3 Blind Rivet (4)

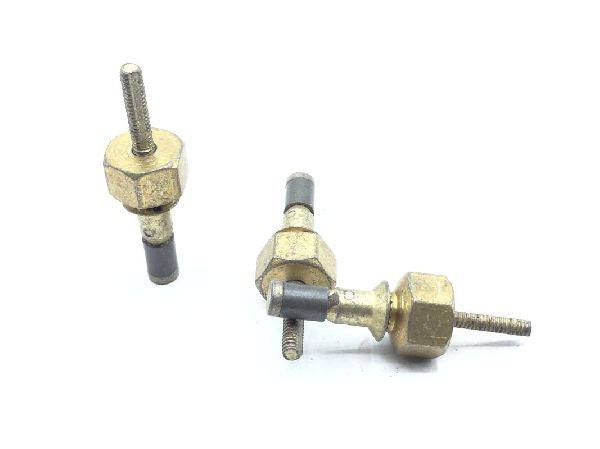

NAS1750-08DL3 Blind Rivet (5)

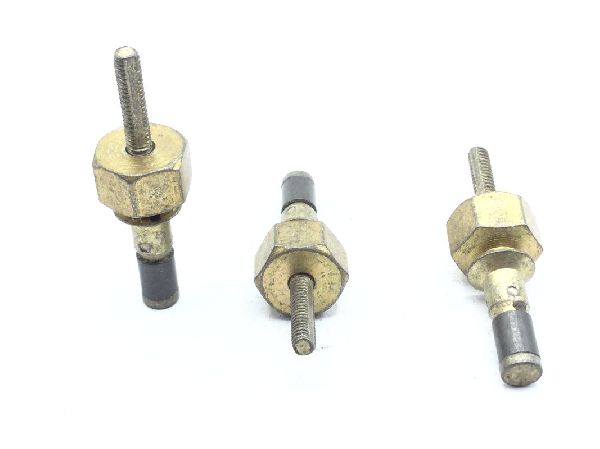

NAS1750-08DL3 Blind Rivet (6)
NAS1750-08DL3 Blind Rivet
NAS1750-08DL3 Blind Rivet (2)
NAS1750-08DL3 Blind Rivet (3)
NAS1750-08DL3 Blind Rivet (4)
NAS1750-08DL3 Blind Rivet (5)
NAS1750-08DL3 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1750-08DL3 Blind Rivet

Product Series
NAS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 4130 nut or steel comp 4140 nut or steel comp 8740 nut
Surface Treatment
Cl 2 federal specification single treatment response nut type 2 qq-p-416
Features
Drive nut
Features Provided
Drive nut
Hardness Rating
39.0 rockwell c nut and 43.0 rockwell c nut
Head Major Diameter
0.296 inches
Material Specification
Mil-s-6758 military specification 1st material response nut or mil-s-5626 military specification 2nd material response nut or mil-s-6049 military specification 3rd material response nut
Shank Diameter
Between 0.1780 inches and 0.1800 inches
Specification Data
80205-nas1750 professional/industrial association standard
