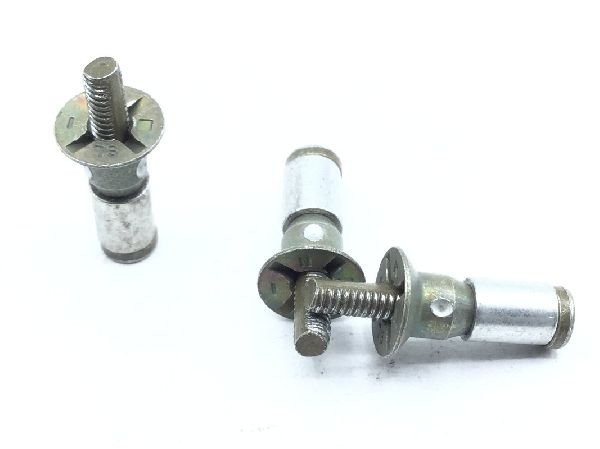

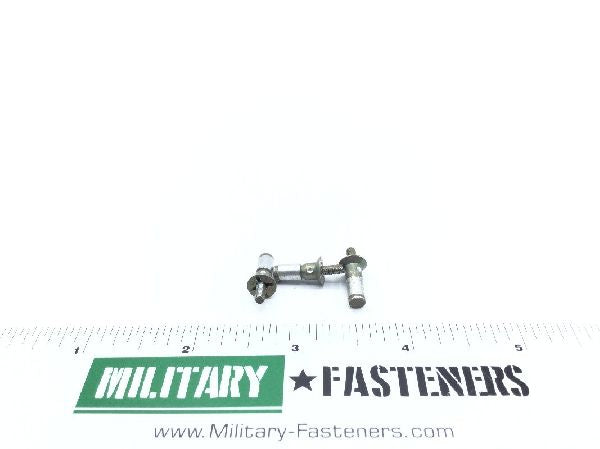

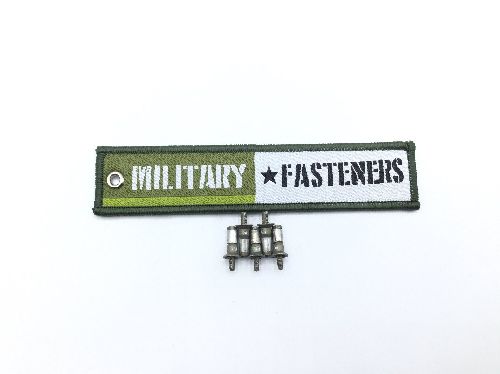

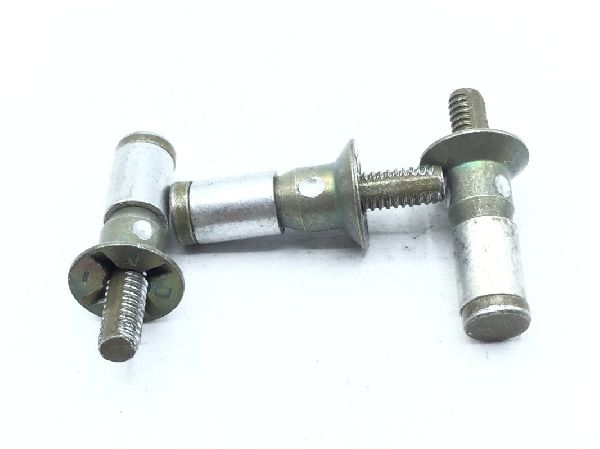

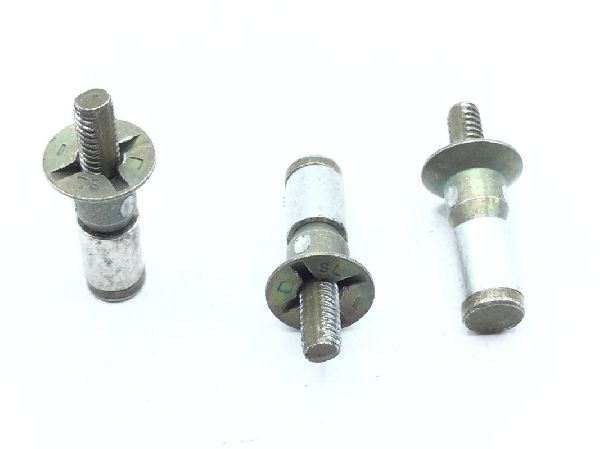

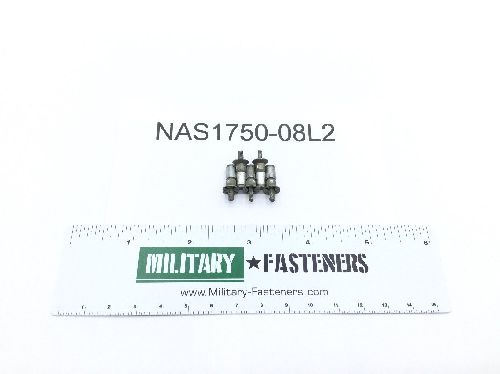

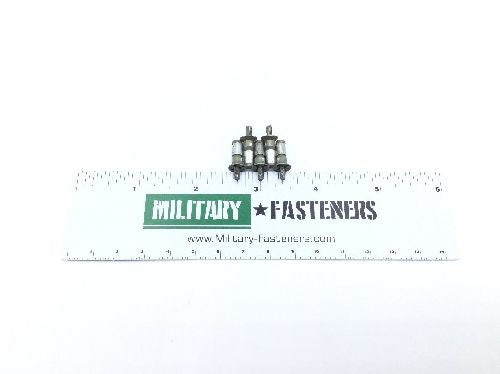

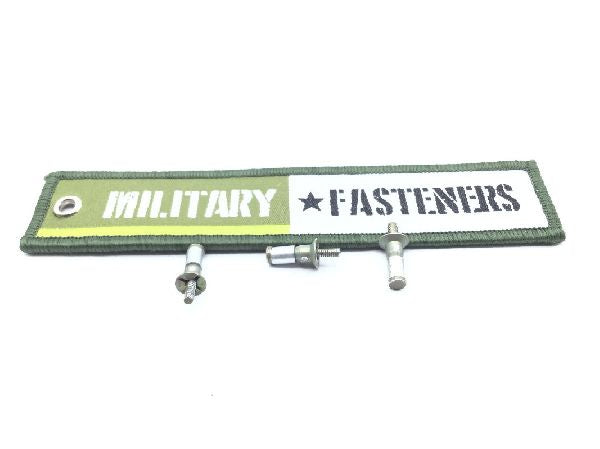

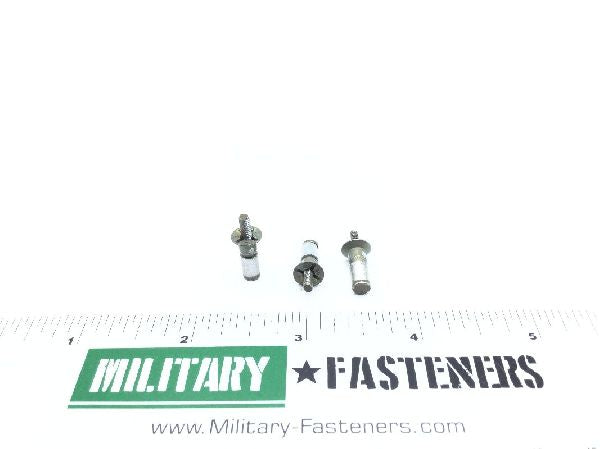

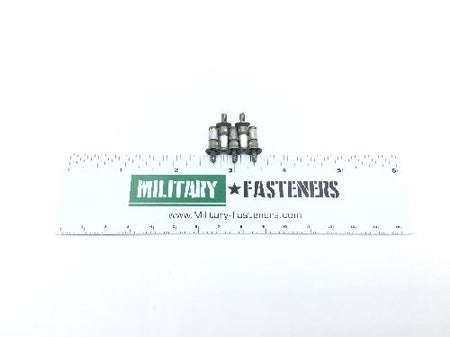

NAS1750-08L2 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 4140 nut or steel comp 8740 nut or steel comp 4130 nut

Surface Treatment

Cl 2 federal specification single treatment response nut type 2 qq-p-416

Countersink Angle: Between 99 degrees and 101 degrees
Expansion Device: Threaded stem
Grip Length: Between 0.094 inches and 0.156 inches
Hardness Rating: 39.0 rockwell c bolt and 43.0 rockwell c bolt
Head Major Diameter: Between 0.296 inches and 0.332 inches
Material Specification: Mil-s-5626 military specification 1st material response nut or mil-s-6049 military specification 2nd material response nut or mil-s-6758 military specification 3rd material response nut
Shank Diameter: Between 0.178 inches and 0.180 inches
Shank Style: Threaded self-plugging shank w/sleeve
Specification Data: 80205-nas1750 professional/industrial association standard
