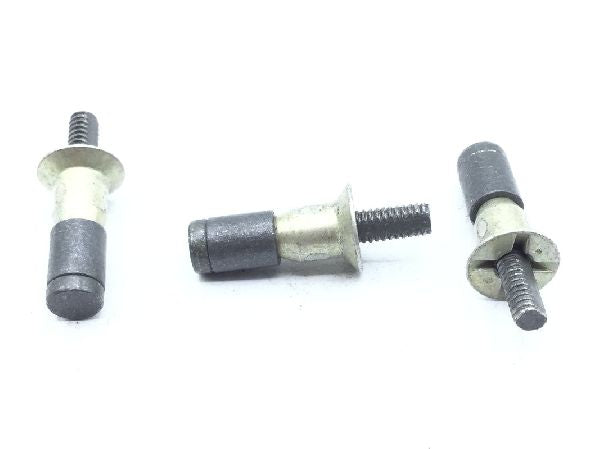

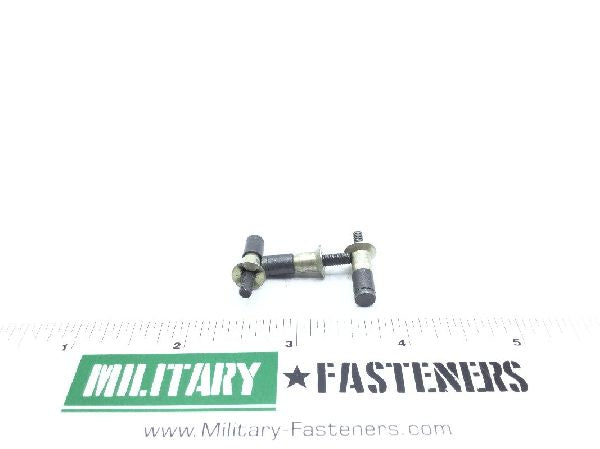

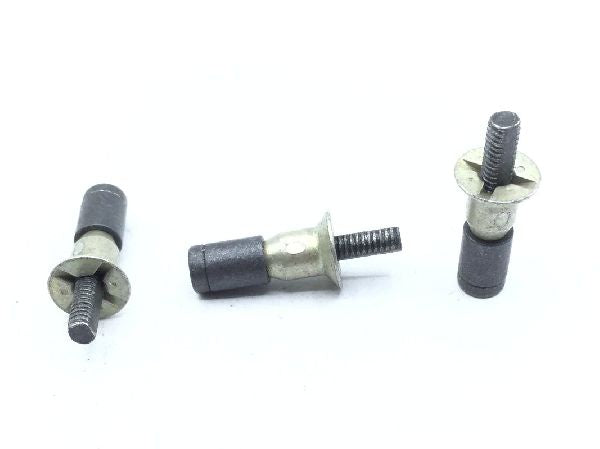

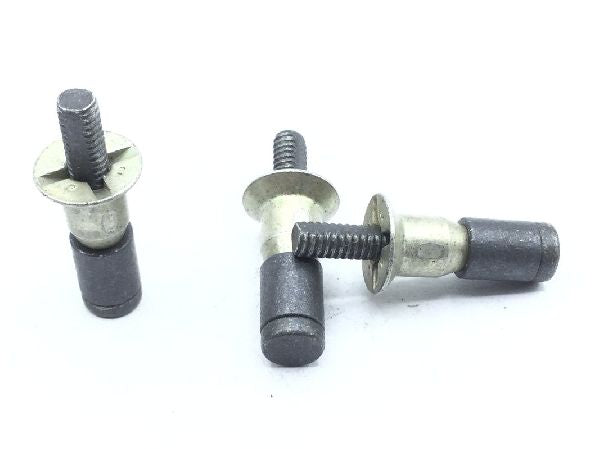

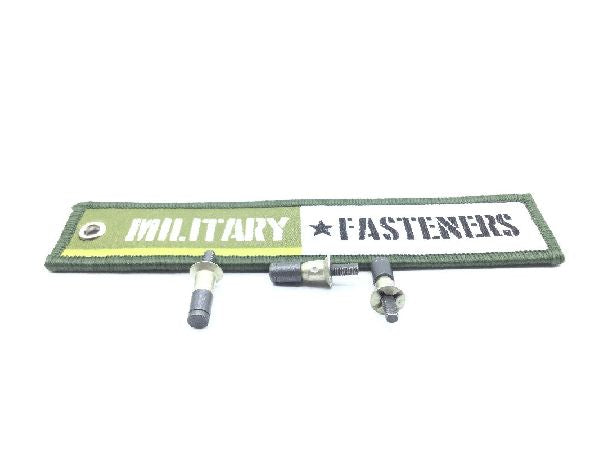

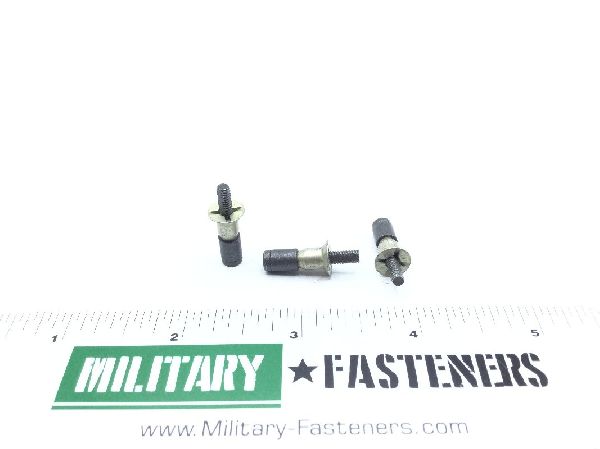

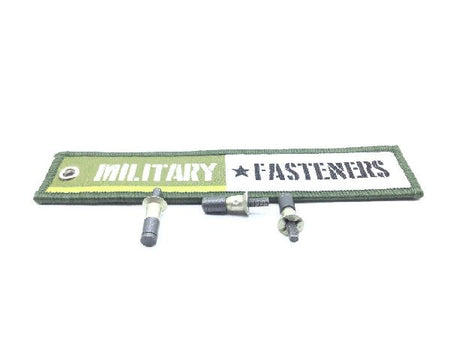

NAS1750-3L3 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $16.56

Units per Pack 5

Price per Pack $82.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.80

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 4140 nut or steel comp 8740 nut or steel comp 4130 nut

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response nut

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Threaded stem
Grip Length: Between 0.157 inches and 0.219 inches
Hardness Rating: 39.0 rockwell c bolt and 43.0 rockwell c bolt
Head Major Diameter: Between 0.342 inches and 0.385 inches
Material Specification: Mil-s-5626 military specification 1st material response bolt or mil-s-6049 military specification 2nd material response bolt or mil-s-6758 military specification 3rd material response bolt
Shank Diameter: Between 0.213 inches and 0.215 inches
Shank Style: Threaded self-plugging shank w/sleeve
Special Features: Self-locking
Specification Data: 80205-nas1750 professional/industrial association standard
