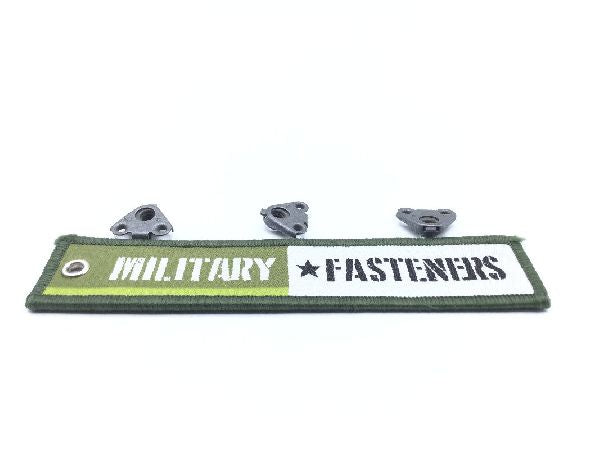

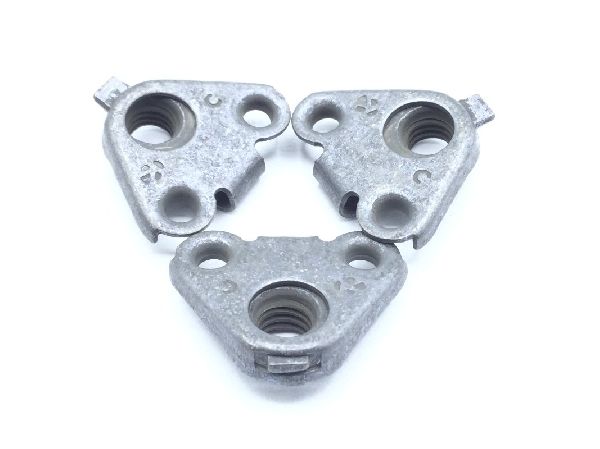

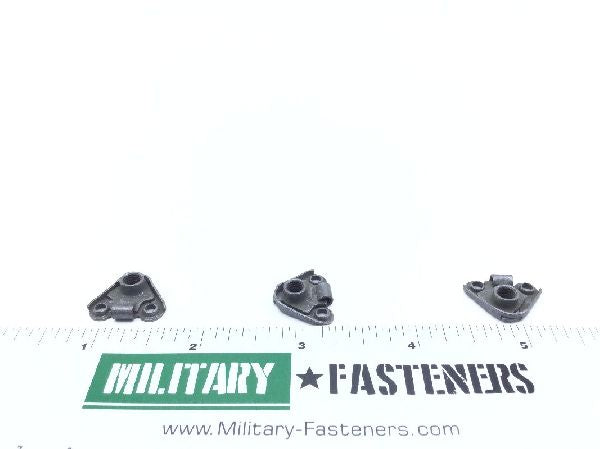

NAS1766CL3 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $17.00

Units per Pack 5

Price per Pack $85.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $85.00

Add item to quote

Material

Stainless Steel

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.192 inches

Center To Center Distance Between Mounting Holes Along Width: Between 0.484 inches and 0.488 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
End Application: V2 aircraft
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5525 national std/spec single material response or ams5737 national std/spec single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.194 inches nut
Nut Height: 0.205 inches
Nut Length: 0.786 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Part Name Assigned By Controlling Agency: 450 degrees 125 ksi ftu floating counterbored plate-corner self-locking nut
Specification Data: 80205 - nas1766 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Tolerance Class: 3 internal
Lubrication: Dry film lubricant
