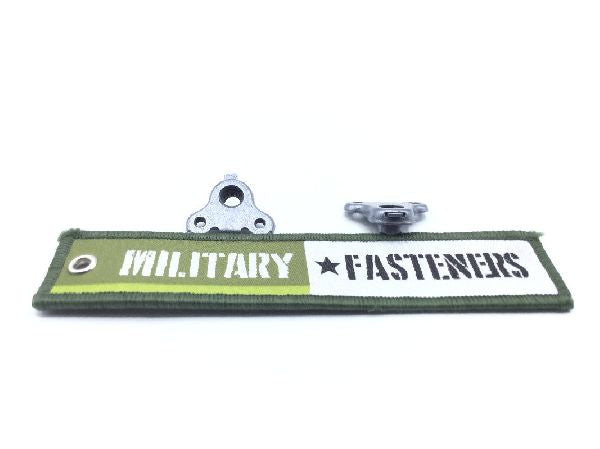

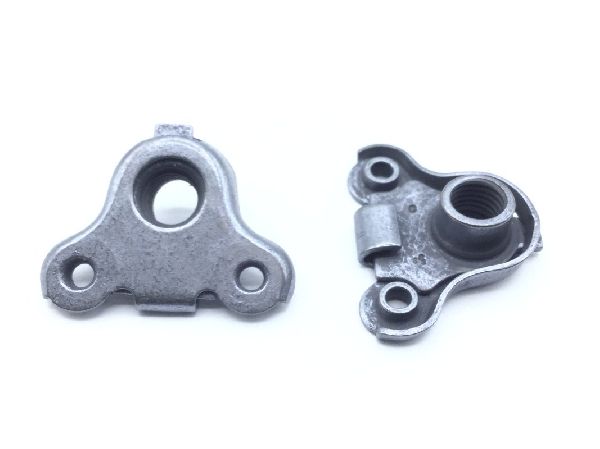

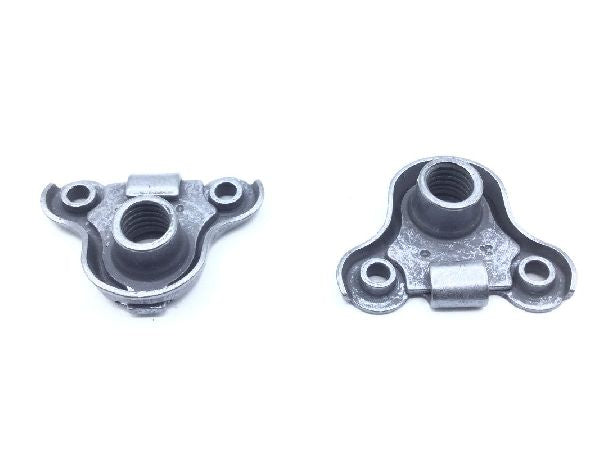

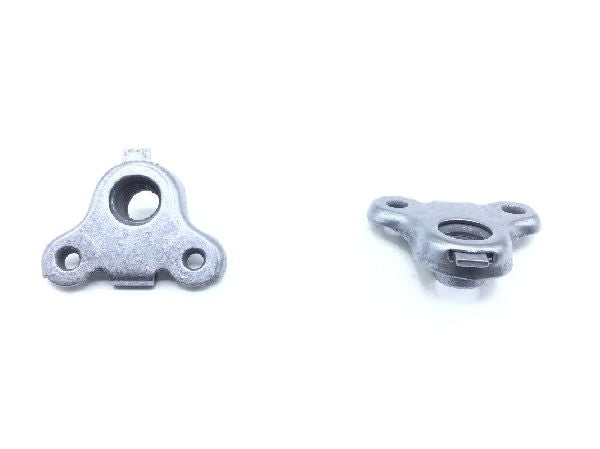

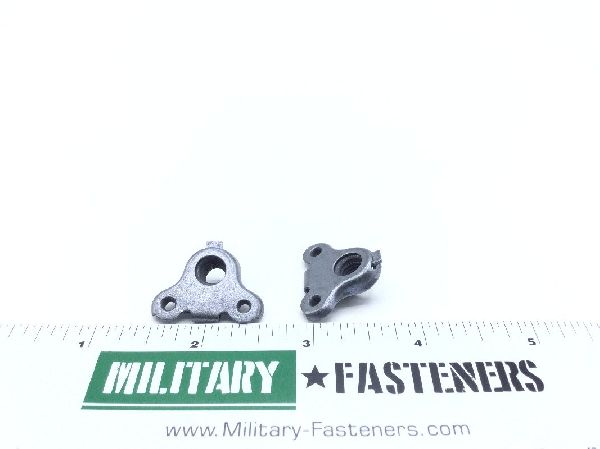

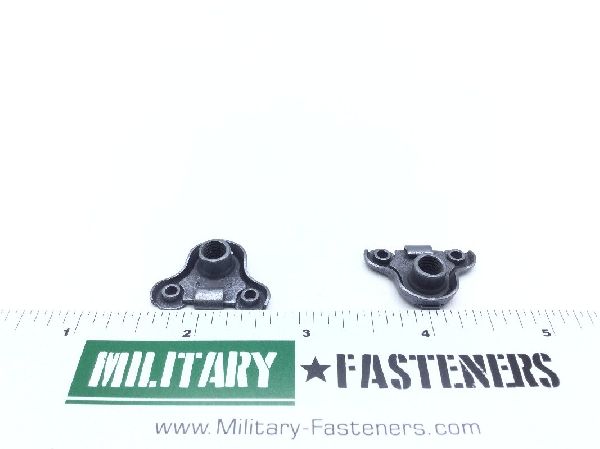

NAS1766CL4 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $20.10

Units per Pack 2

Price per Pack $40.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $40.20

Add item to quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Width: Between 0.705 inches and 0.709 inches
Counterbore Diameter: 0.254 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.312 inches
Nut Length: 1.079 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Specification Data: 80205-nas1766 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
