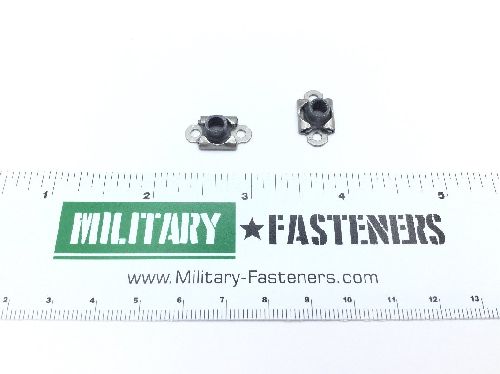

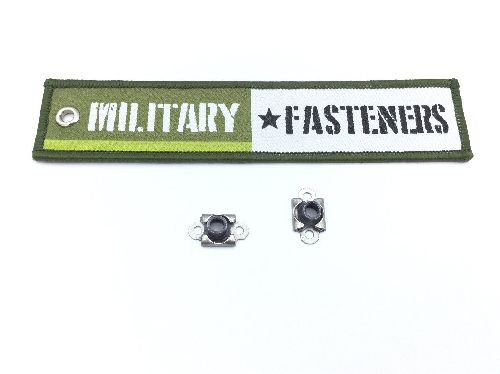

NAS1779C3M Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.498 inches and 0.502 inches
Counterbore Diameter: 0.194 inches base
Distance From Mounting Hole Center To Base: 0.100 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.062 inches base
Nut Height: 0.250 inches
Nut Length: 0.739 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.047 inches
Plate Width: Between 0.290 inches and 0.416 inches
Special Features: May have eyelets 0.140 in. max h
Specification Data: 80205-nas1779 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
