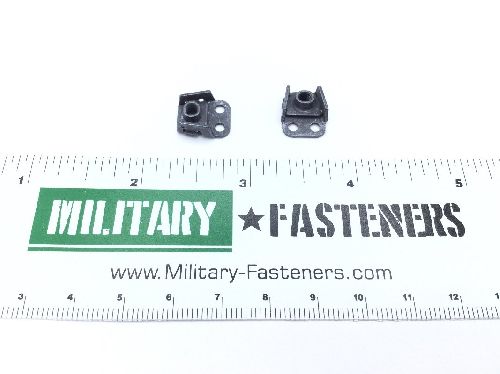

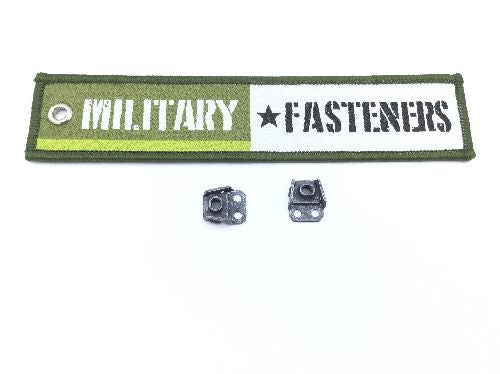

NAS1789-06 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $8.00

Units per Pack 10

Price per Pack $80.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $80.00

Add item to quote

Material

Steel comp 1030

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Width: Between 0.217 inches and 0.221 inches
Distance From Aperture Center To Mounting Hole Center: 0.250 inches
Distance From Centerline To Flat: 0.175 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.203 inches
Nut Length: 0.525 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.490 inches
Special Features: 160000 psi min tensile strength
Specification Data: 80205-nas1789 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
