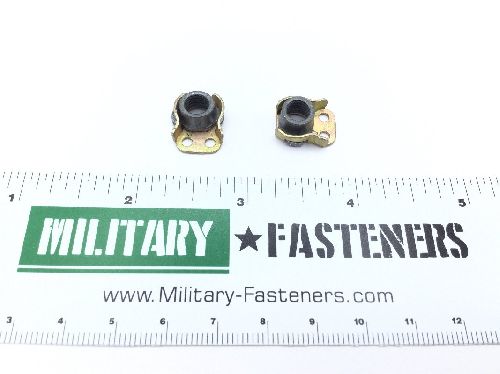

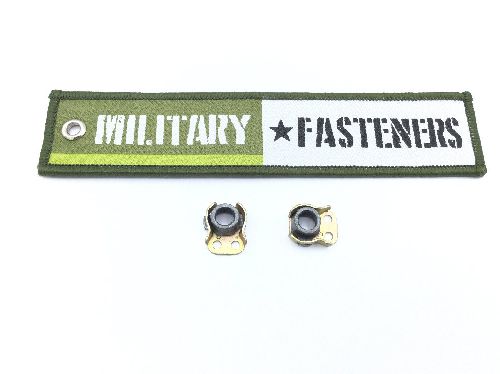

NAS1789-4 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1030

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Width: Between 0.217 inches and 0.221 inches
Counterbore Diameter: 0.254 inches nut
Distance From Aperture Center To Mounting Hole Center: 0.281 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.281 inches
Nut Length: 0.617 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.502 inches
Specification Data: 80205-nas1789 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
