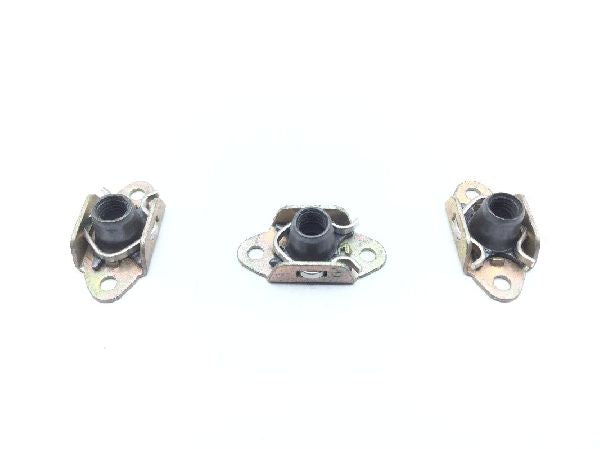

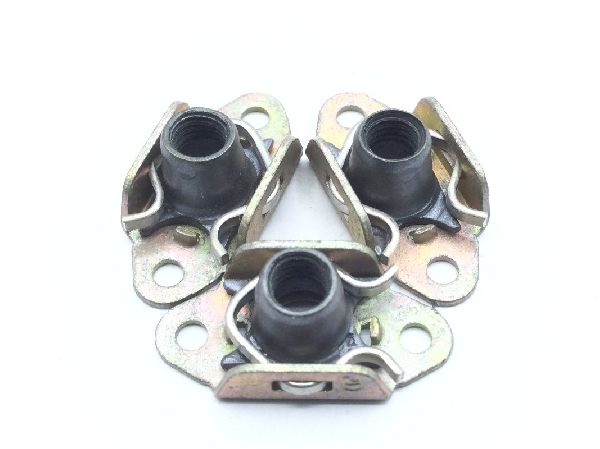

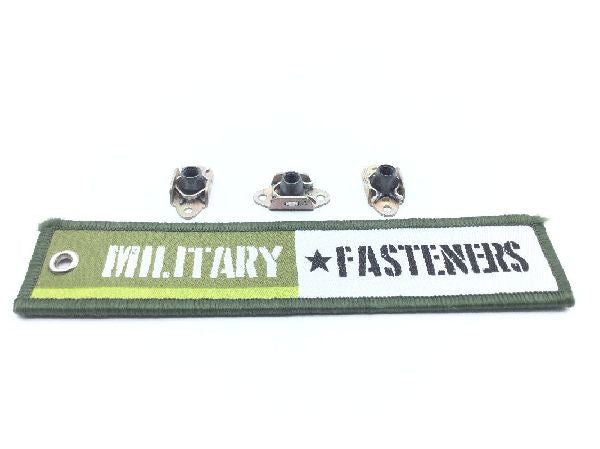

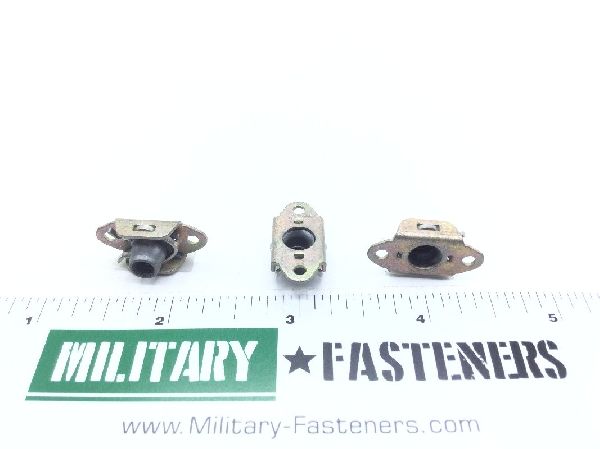

NAS1791A33 Plate - Two Lug Locknut

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Counterbore Diameter: 0.194 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.188 inches nut
Nut Height: 0.375 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.027 inches and 0.037 inches
Plate Width: 0.445 inches
Removable Nut Manufacturer Code: 80205
Removable Nut Manufacturer Part Number: Nas1794a3-3
Specification Data: 80205-nas1791 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
