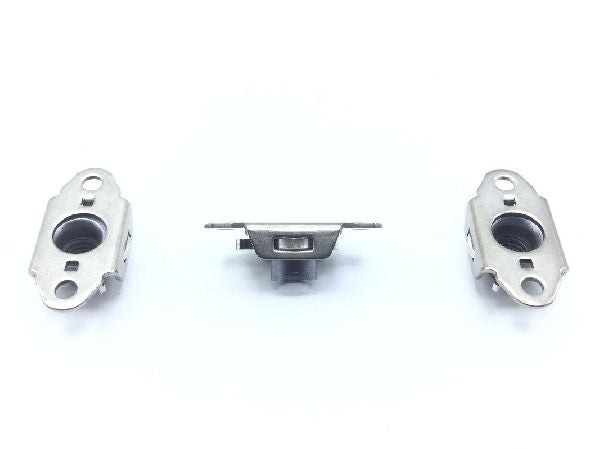

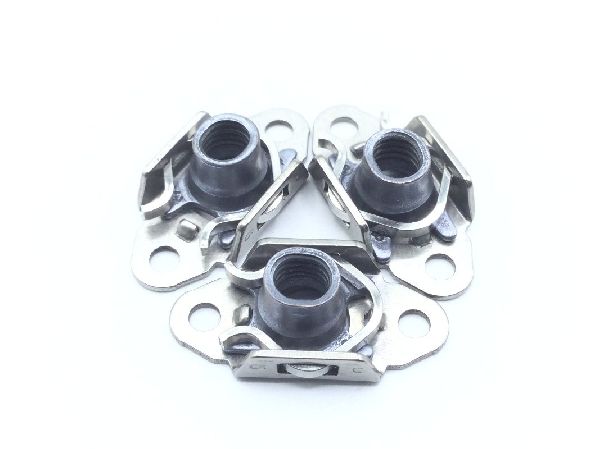

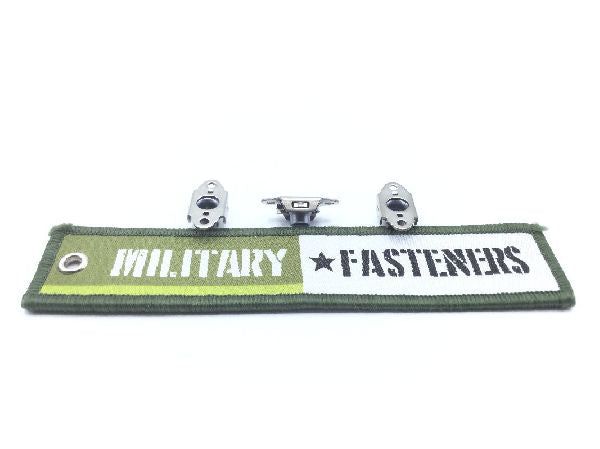

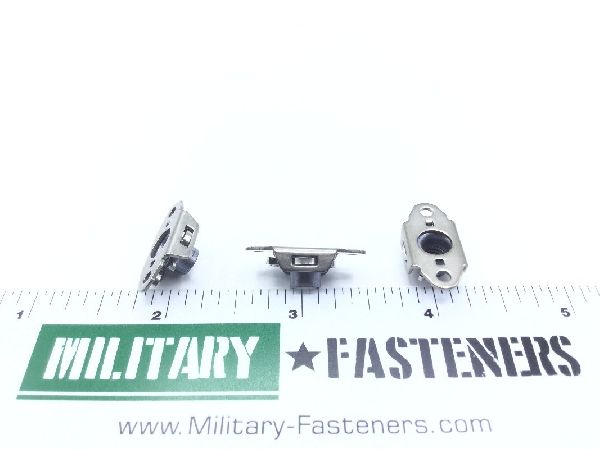

NAS1791C3-2 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.69 inches
Counterbore Diameter: 0.194 inches and 0.207 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.093 inches and 0.103 inches
Nut Counterbore Depth: 0.100 inches
Nut Height: 0.296 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.440 inches
Special Features: One hole each side to hold retaining clip plate u shpae 0.220 in. high
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
