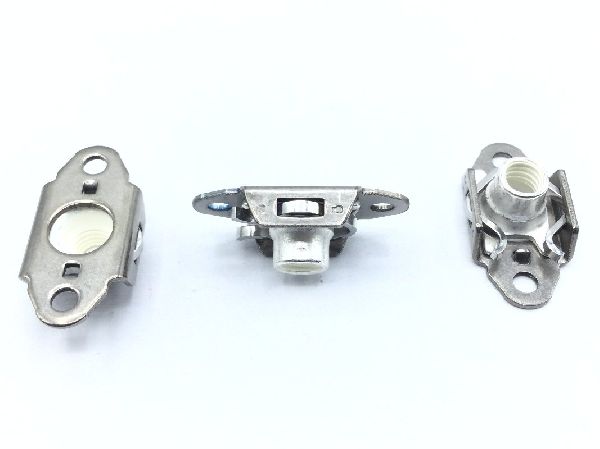

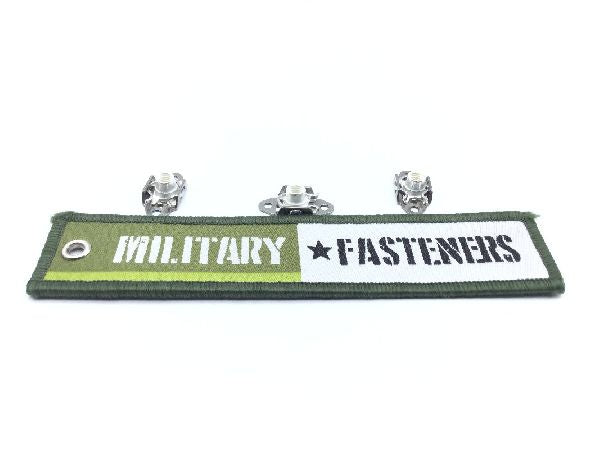

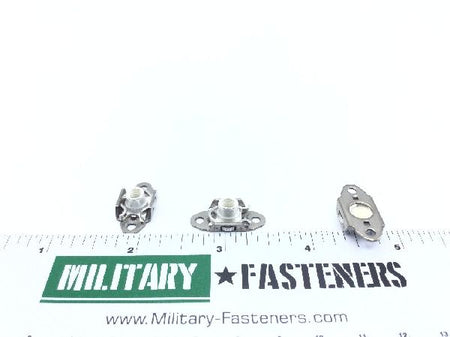

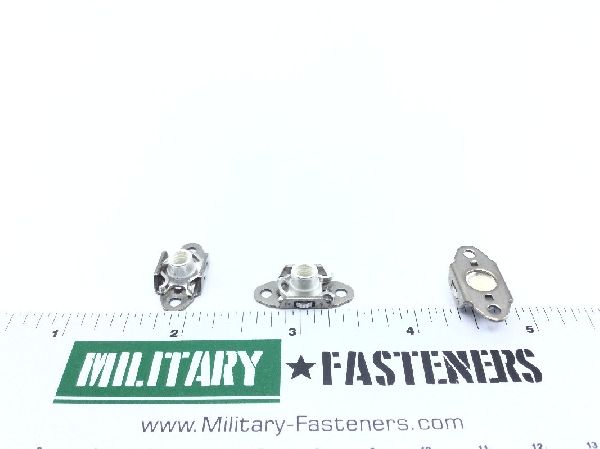

NAS1791C3-2NP Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Iron alloy 651 shell

Surface Treatment

Qq-p-35 federal specification single treatment response shell

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: 0.690 inches
Counterbore Diameter: 0.194 inches nut
Distance From Aperture Center To Mounting Hole Center: 0.100 inches
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5688 assn standard single material response clip
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.103 inches
Nut Counterbore Depth: 0.125 inches nut
Nut Height: 0.312 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate (floating)
Plate Thickness: 0.037 inches
Plate Width: 0.484 inches
Specification Data: 80205-nas1791 professional/industrial association standard
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
