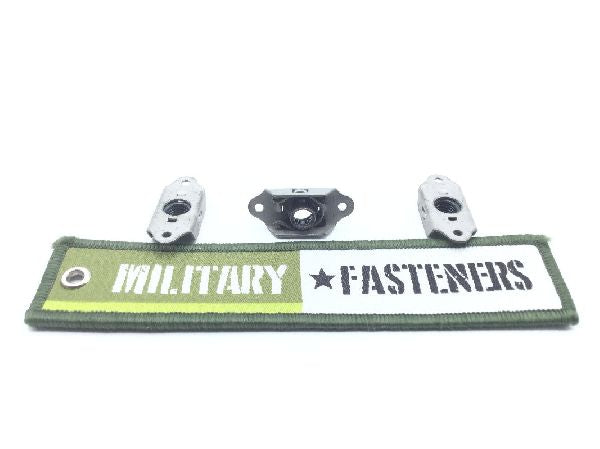

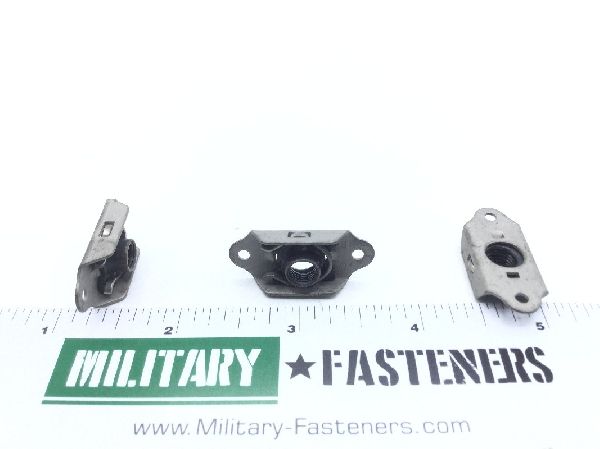

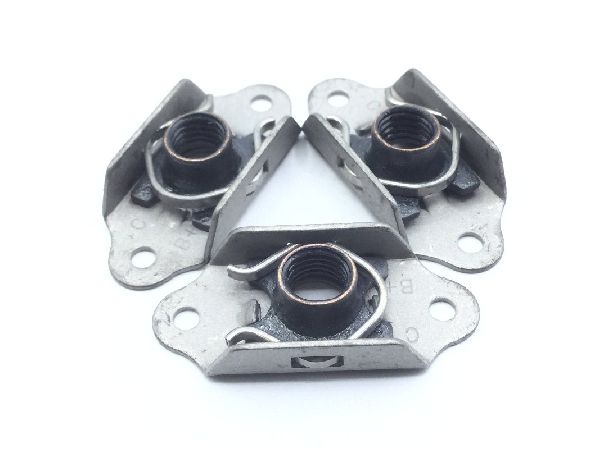

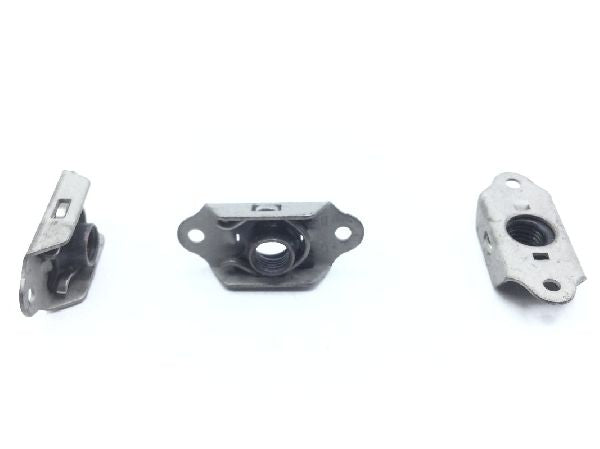

NAS1791C4-1 Self-Locking Nutplate

NSN: 5310-00-283-4618
Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660 shell

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.002 inches
Counterbore Diameter: 0.254 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5735 assn standard single material response shell
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.070 inches nut
Nut Height: 0.286 inches
Nut Length: 1.292 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.028 inches and 0.036 inches
Plate Width: 0.574 inches
Specification Data: 76301-st3-443 manufacturers standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
