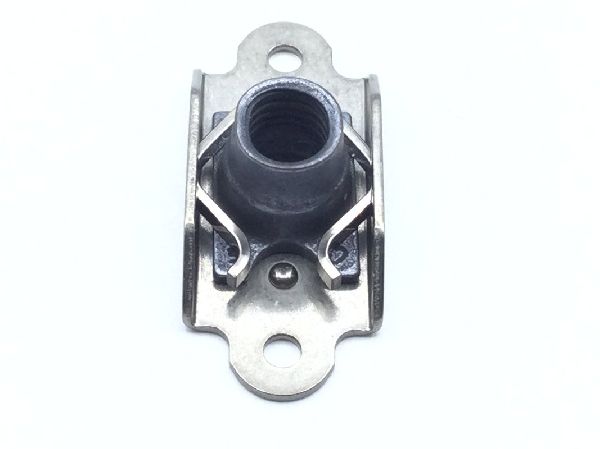

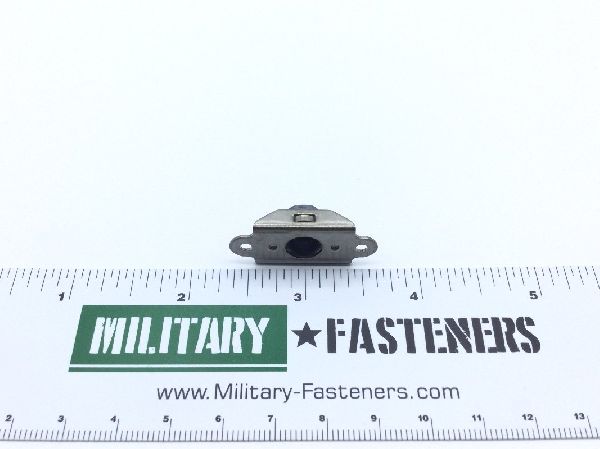

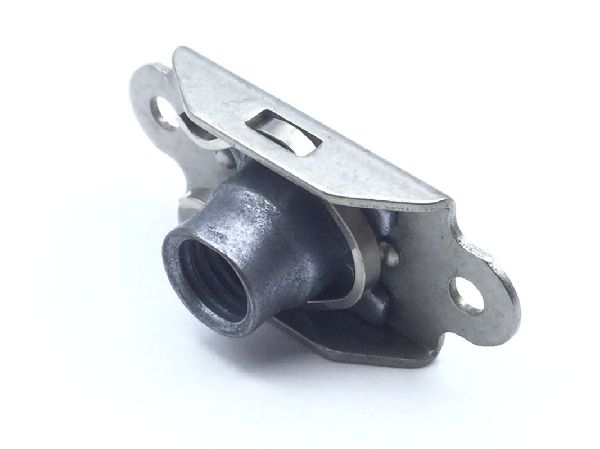

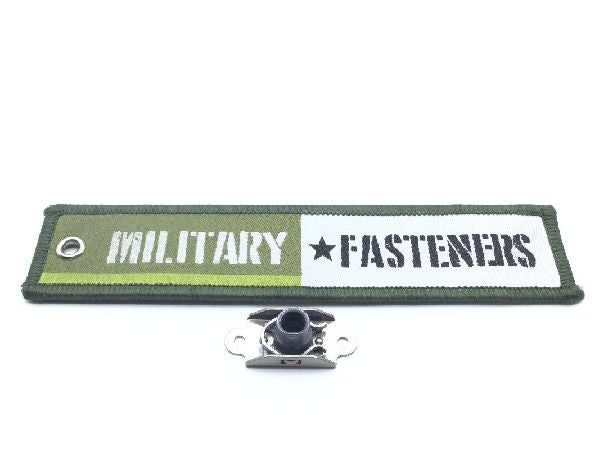

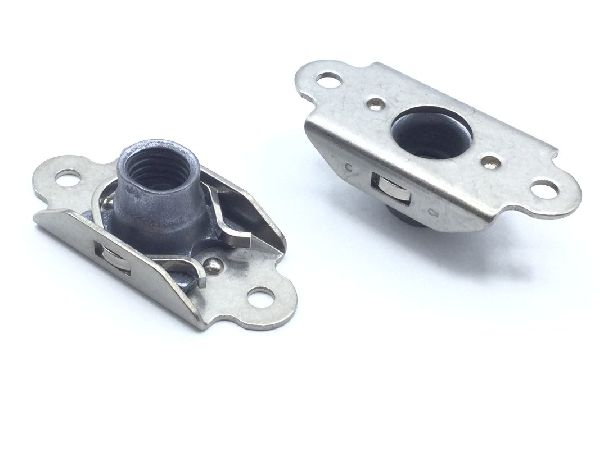

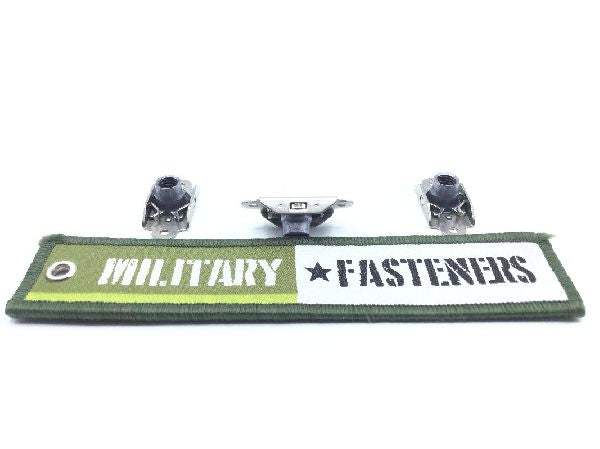

NAS1791C4-3 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $8.00

Units per Pack 5

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Material

Iron alloy 660 nut

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.002 inches
Counterbore Diameter: 0.254 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response shell
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.188 inches nut
Nut Height: 0.419 inches
Nut Length: 1.292 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.027 inches and 0.037 inches
Plate Width: 0.547 inches
Removable Nut Manufacturer Code: 80205
Removable Nut Manufacturer Part Number: Nas1794c4-3
Specification Data: 80205-nas1791 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
