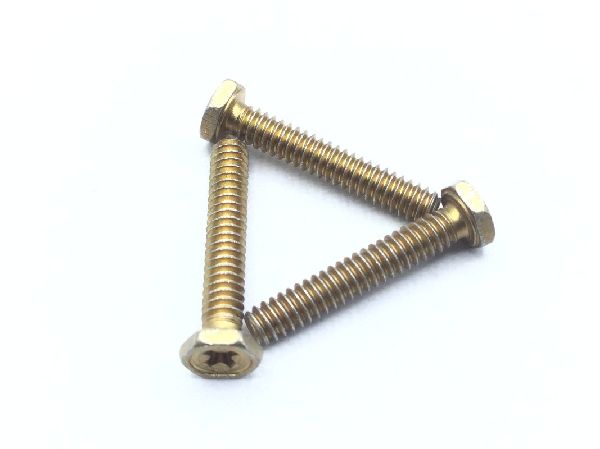

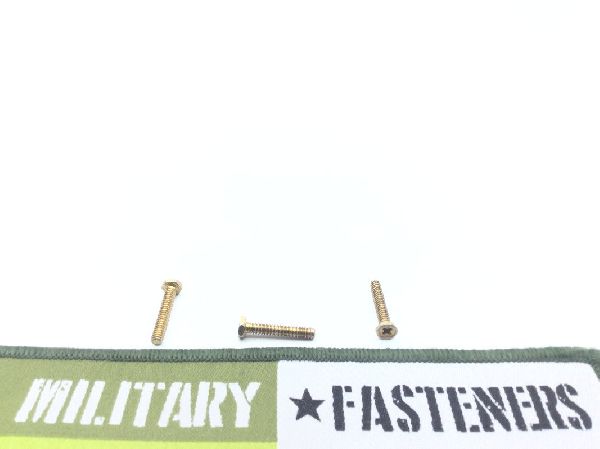

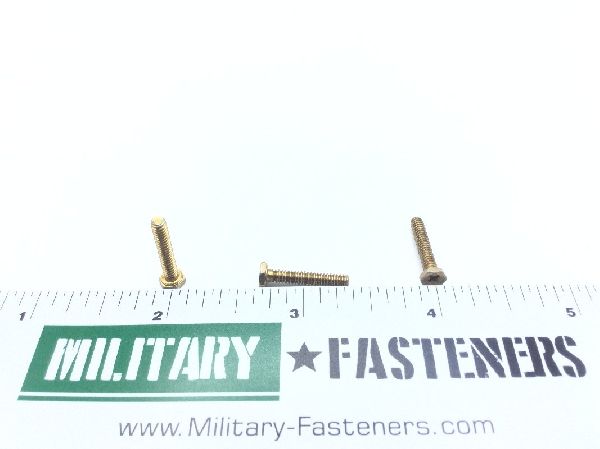

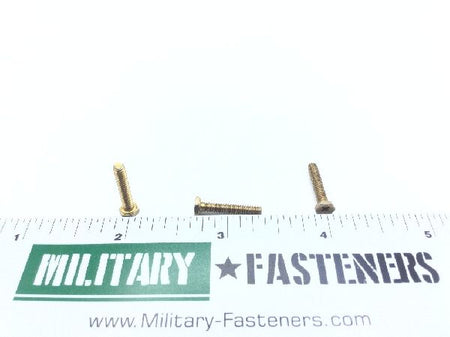

NAS1801-04-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.595 inches and 0.625 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.049 inches and 0.060 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4037 or steel comp 8630
Screw Material Specification: Ams6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 2 federal specification single treatment response qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.545 inches and 0.625 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Width Between Flats: Between 0.181 inches and 0.187 inches
