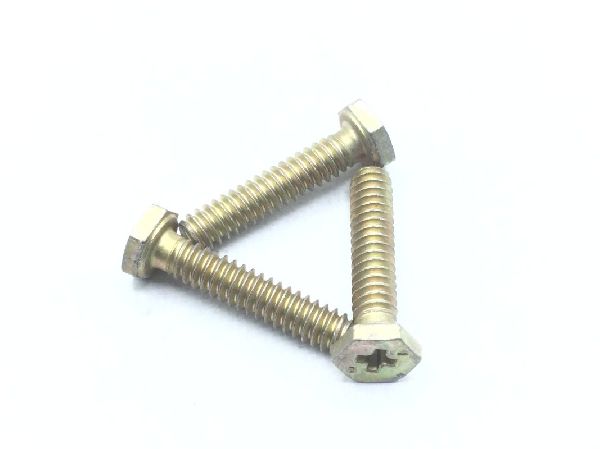

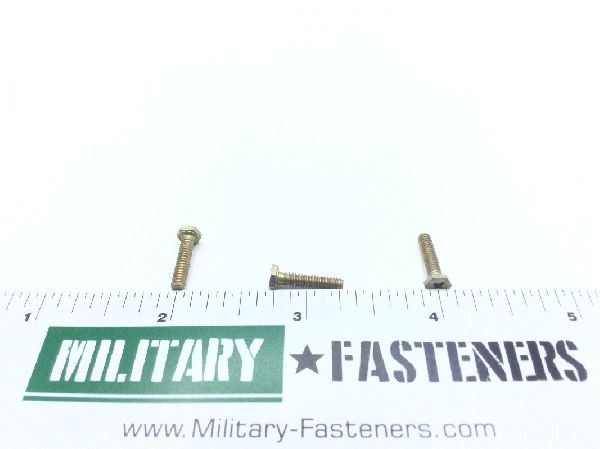

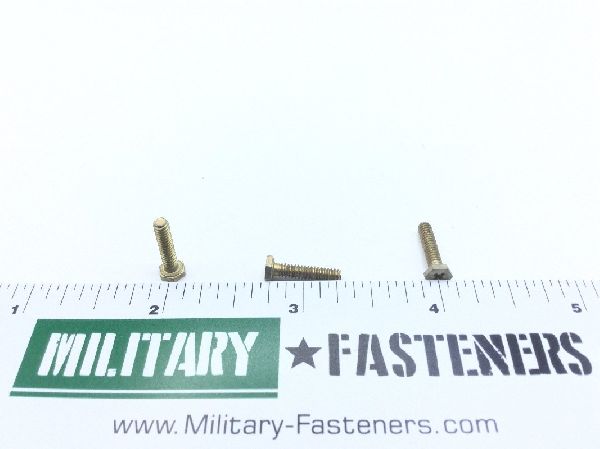

NAS1801-04-8 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.56

Units per Pack 100

Price per Pack $56.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $56.00

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.484 inches and 0.531 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.049 inches and 0.06 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.434 inches and 0.531 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Width Between Flats: Between 0.181 inches and 0.189 inches
