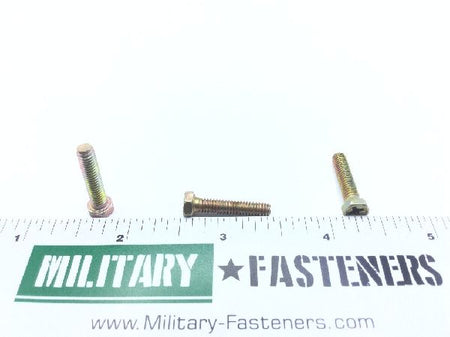

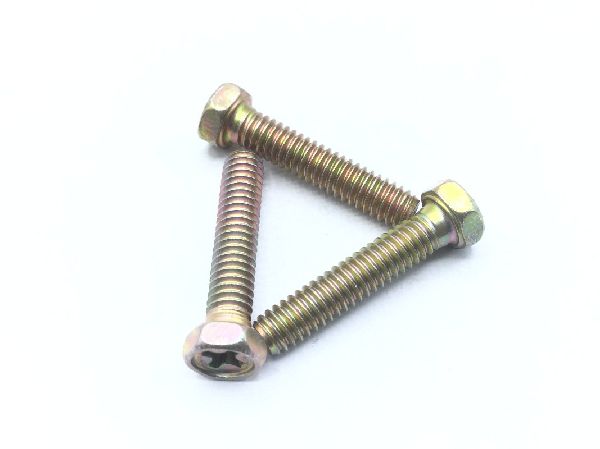

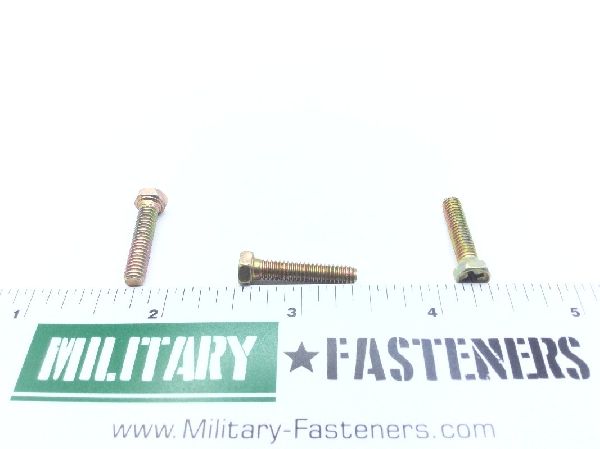

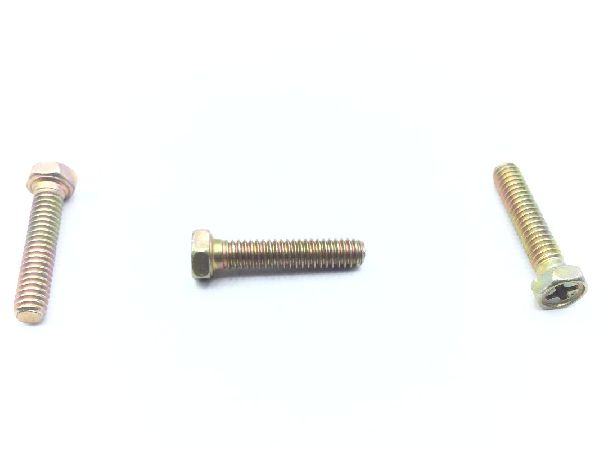

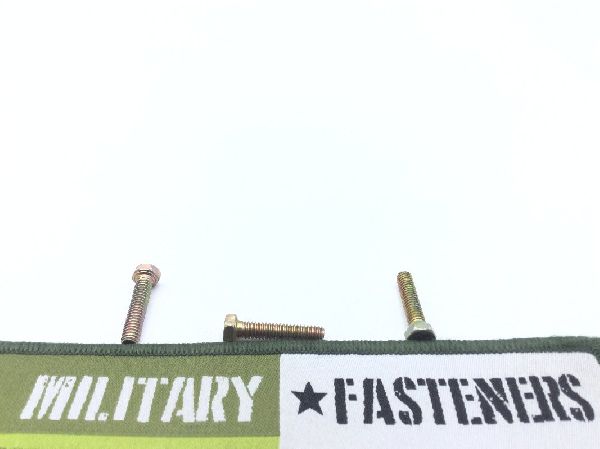

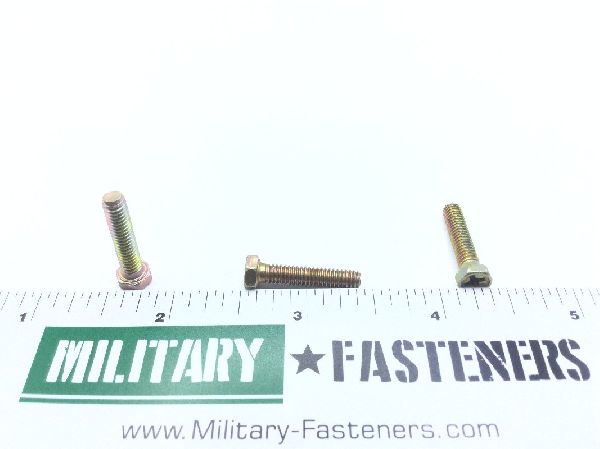

NAS1801-08-12 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.734 inches and 0.781 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.096 inches and 0.110 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 2 federal specification single treatment response type 2 qq-p-416
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.608 inches and 0.781 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.243 inches and 0.251 inches
