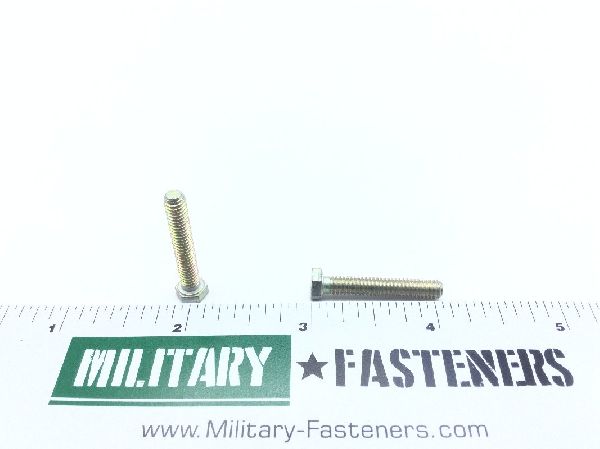

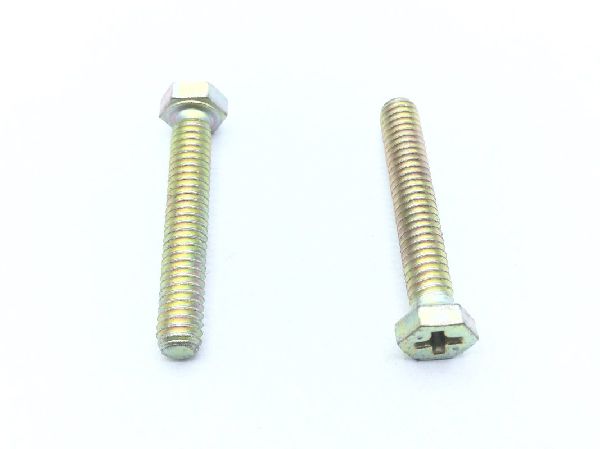

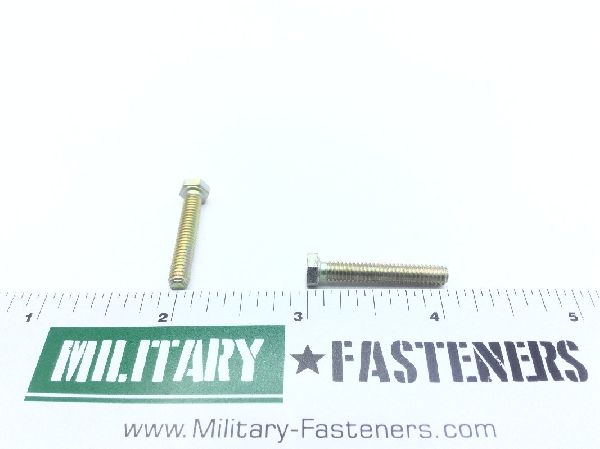

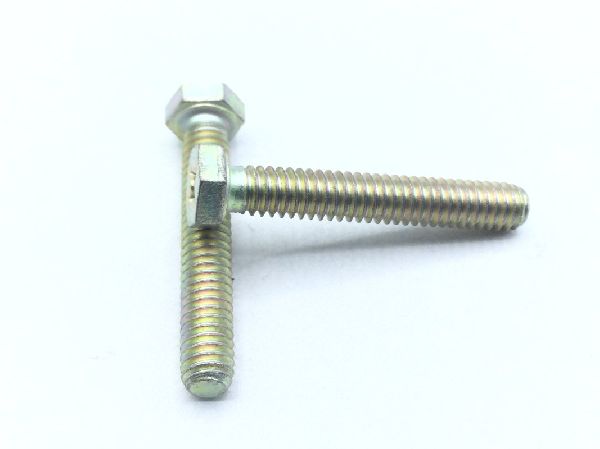

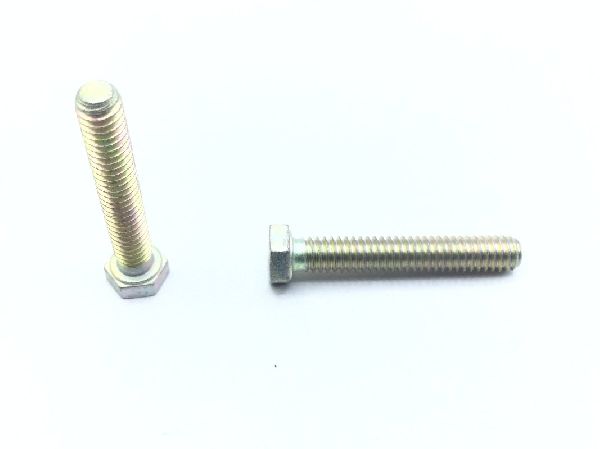

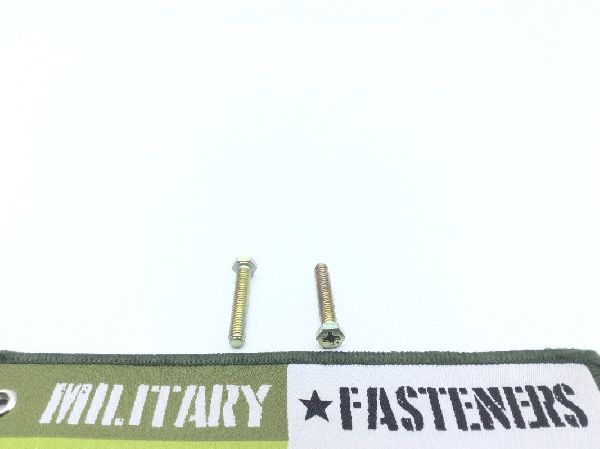

NAS1801-08-16 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.44

Units per Pack 100

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.969 inches and 1.031 inches
Head Height: Between 0.096 inches and 0.110 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4130 and steel comp 8740
Screw Material Specification: Mil-s-5000 military specification 1st material response and mil-s-6049 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Ty2 federal specification single treatment response cl2 qq-p-416
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.907 inches and 1.031 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.243 inches and 0.251 inches
