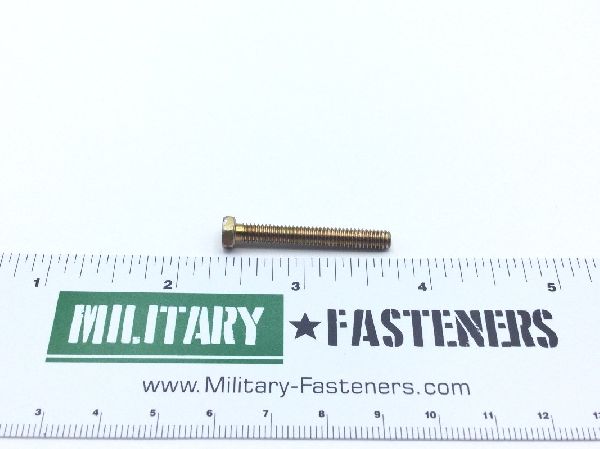

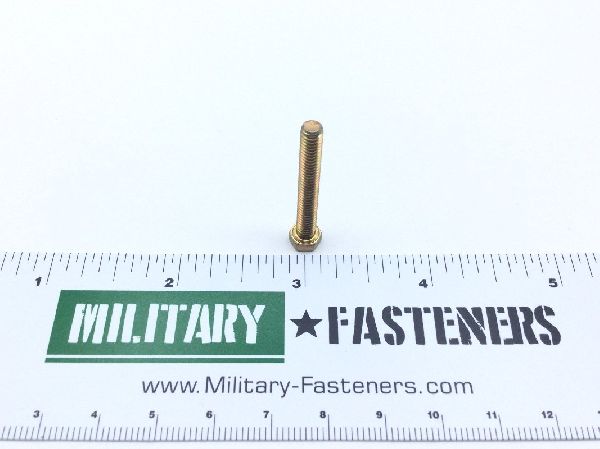

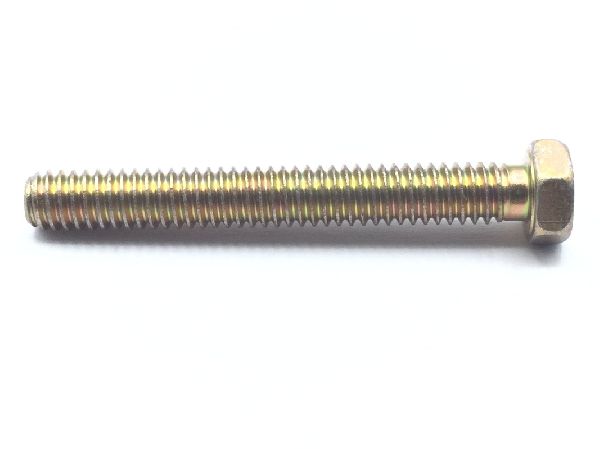

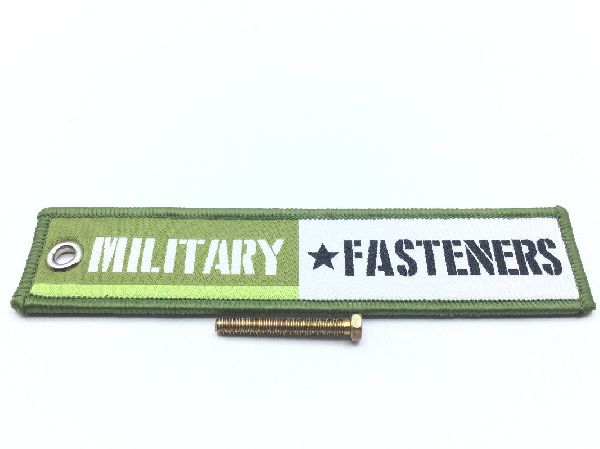

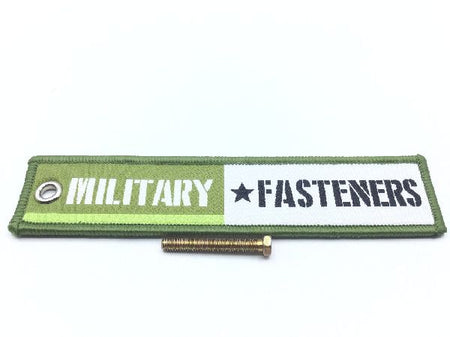

NAS1801-08-20 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 1.234 inches and 1.281 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.096 inches and 0.110 inches

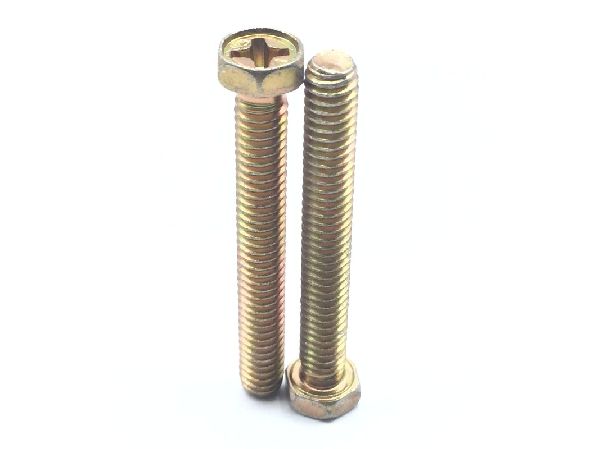

Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl2 federal specification single treatment response ty2 qq-p-416
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 1.172 inches and 1.281 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.243 inches and 0.251 inches
