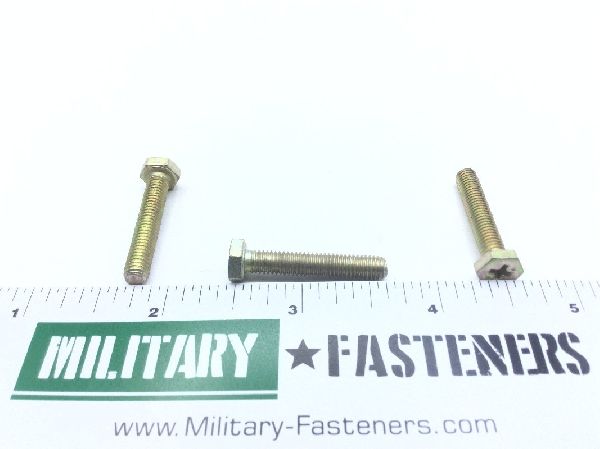

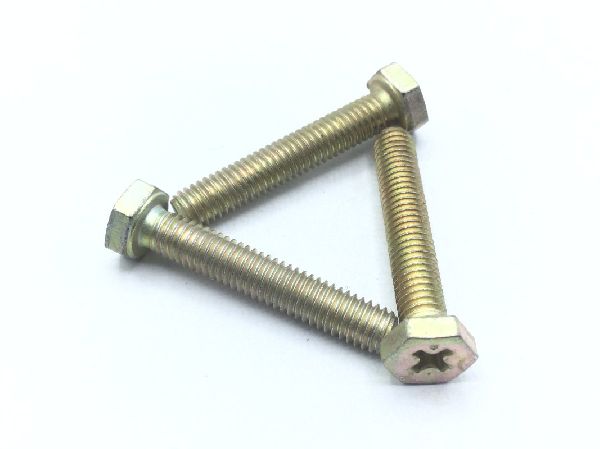

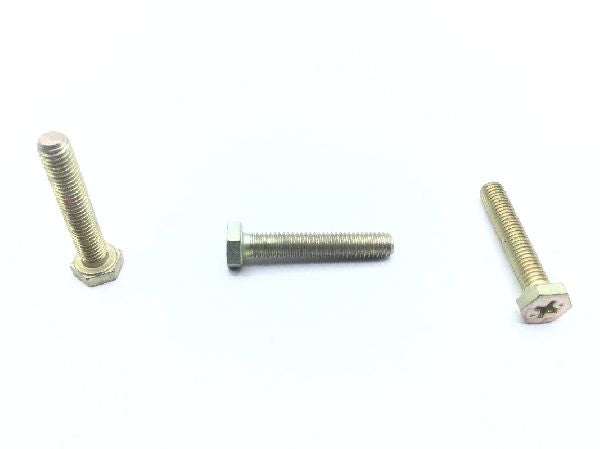

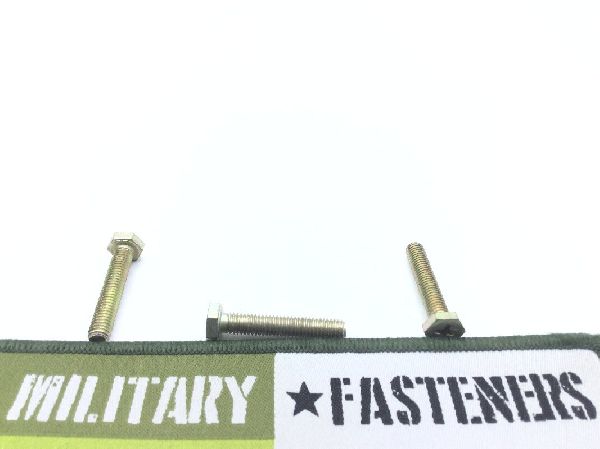

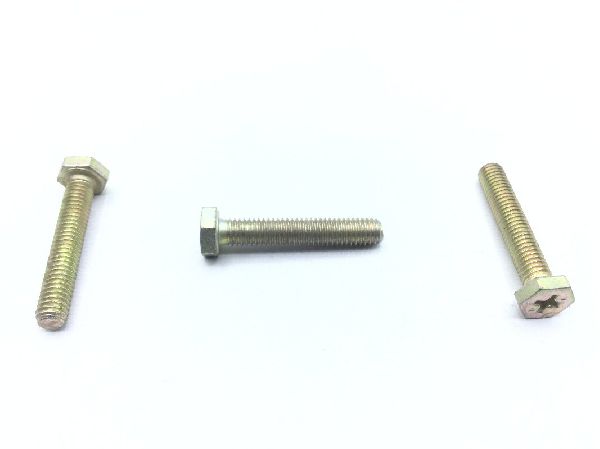

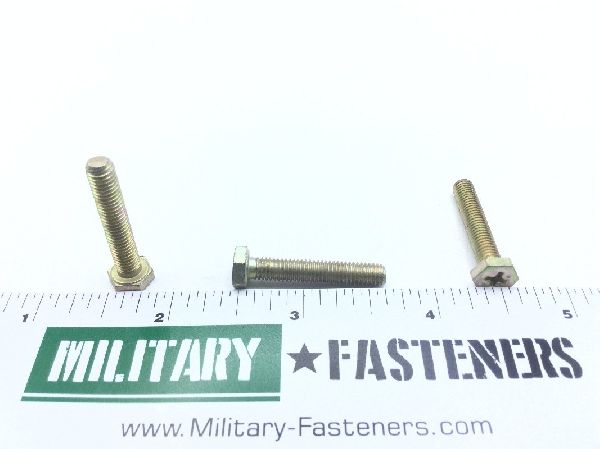

NAS1801-3-17 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Hexagon

Material

Steel comp 4340 fastener

Thread Class

Fastener Length: Between 1.046 inches and 1.093 inches
Hardness Rating: 36.0 rockwell c fastener and 40.0 rockwell c fastener
Head Height: Between 0.105 inches and 0.120 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.984 inches and 1.093 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.314 inches
