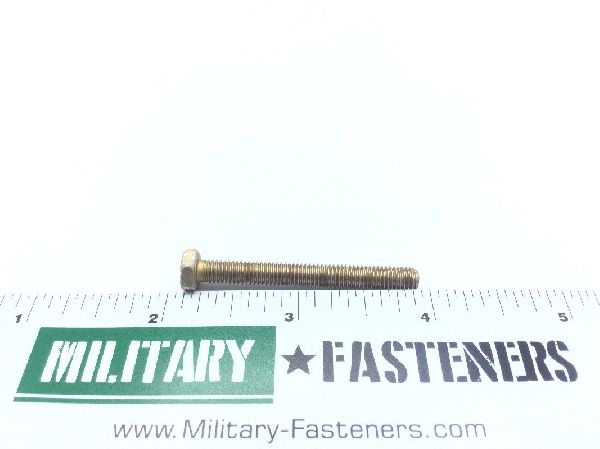

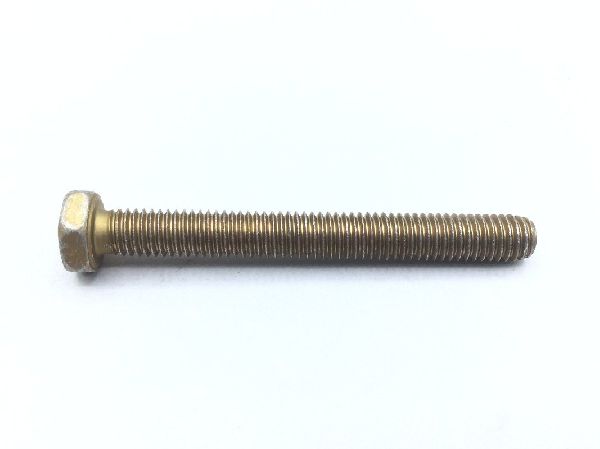

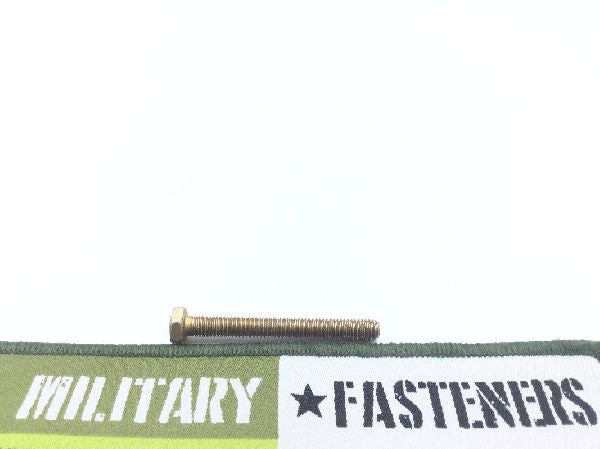

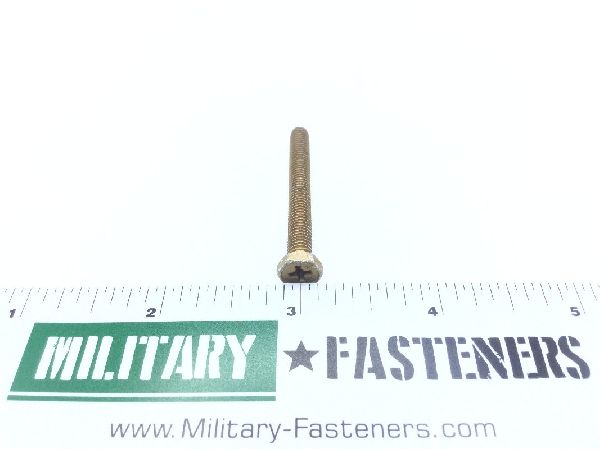

NAS1801-3-27 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.92

Units per Pack 50

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Head Style

Dished hexagon

Thread Class

Fastener Length: Between 1.6715 inches and 1.7185 inches
Head Height: Between 0.105 inches and 0.120 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Mil-s-5000 military specification single material response or mil-s-6049 military specification single material response or ams6322 assn standard single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Cl 2 federal specification single treatment response type 2 qq-p-416
Specification Data: 80205-nas1801 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.6545 inches and 1.6555 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.314 inches
